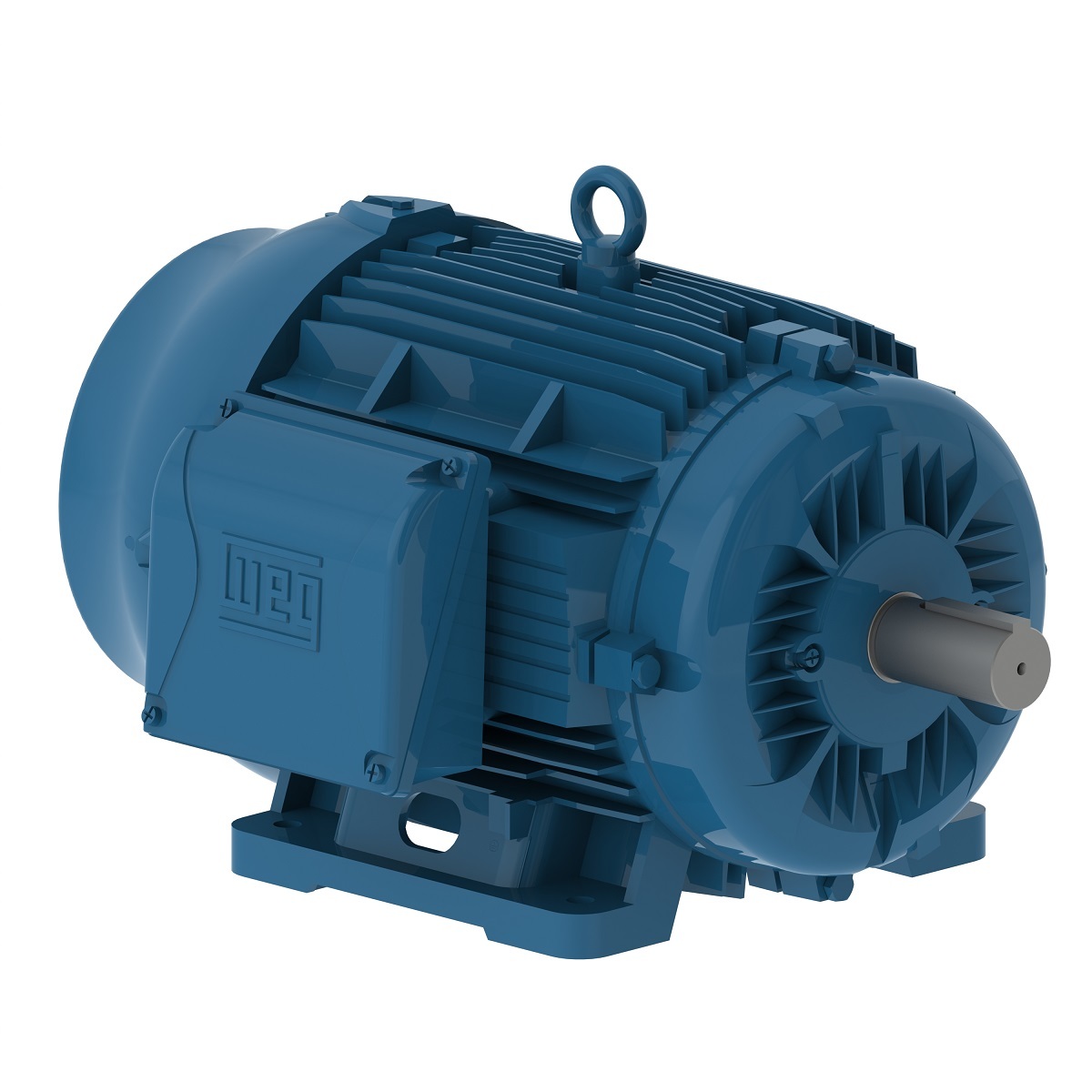

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 60 HP |
| Flange | C |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
Unit Price Only
$6,124.04
Forklift or loading dock required for commercial deliveries.
This item ships via freight and cannot be unloaded without proper equipment.
Residential Delivery
If the delivery address is residential , or classified as residential by the freight carrier , Liftgate + Residential Delivery Service must be added before shipment.
Important
The freight carrier determines whether an address is commercial or residential at the time the shipment is booked.
If the customer indicates the location is “commercial” (for example: farm, ranch, home-based business, or similar), but the carrier classifies the address as residential, residential and/or liftgate charges will still apply and must be paid before delivery can be scheduled.
Add the required services below if your location is residential or if a forklift/loading dock is not available.
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Technical Data| Brand | WEG |
|---|---|
| Frame | 364/5T |
| Output | 60 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 3555 rpm |
| Slip (%) | 1.25 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 134/67.0 |
| L. R. Amperes (A) | 884/442 |
| LRC | 6.6x (Code G) |
| No load Current (A) | 32.0/16.0 |
| Rated Torque (ft.lb) | 88.6 |
| Locked Rotor Torque (%) | 200 |
| Breakdown Torque (%) | 260 |
| Locked Rotor Time | 25s (cold) 14s (hot) |
| Moment of Inertia (J) | 10.6 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 79.0 dB(A) |
| Approx. Weight (lb) | 876 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 91.0 | 91.7 | 93.0 | 93.6 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.59 | 0.81 | 0.88 | 0.90 |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Main terminal box hole | NPT 3″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 – C3) |
| Grounding Lugs | Double |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Fan material | Plastic |
| Brands | |
|---|---|
| Electric Motor Voltage | |
| Phase | |
| Horse Power Electric Motor | |
| Material Electric motor | |
| RPM | 3600 |
| Frame Size | 364/5 |
| Motor Standard | NEMA |
