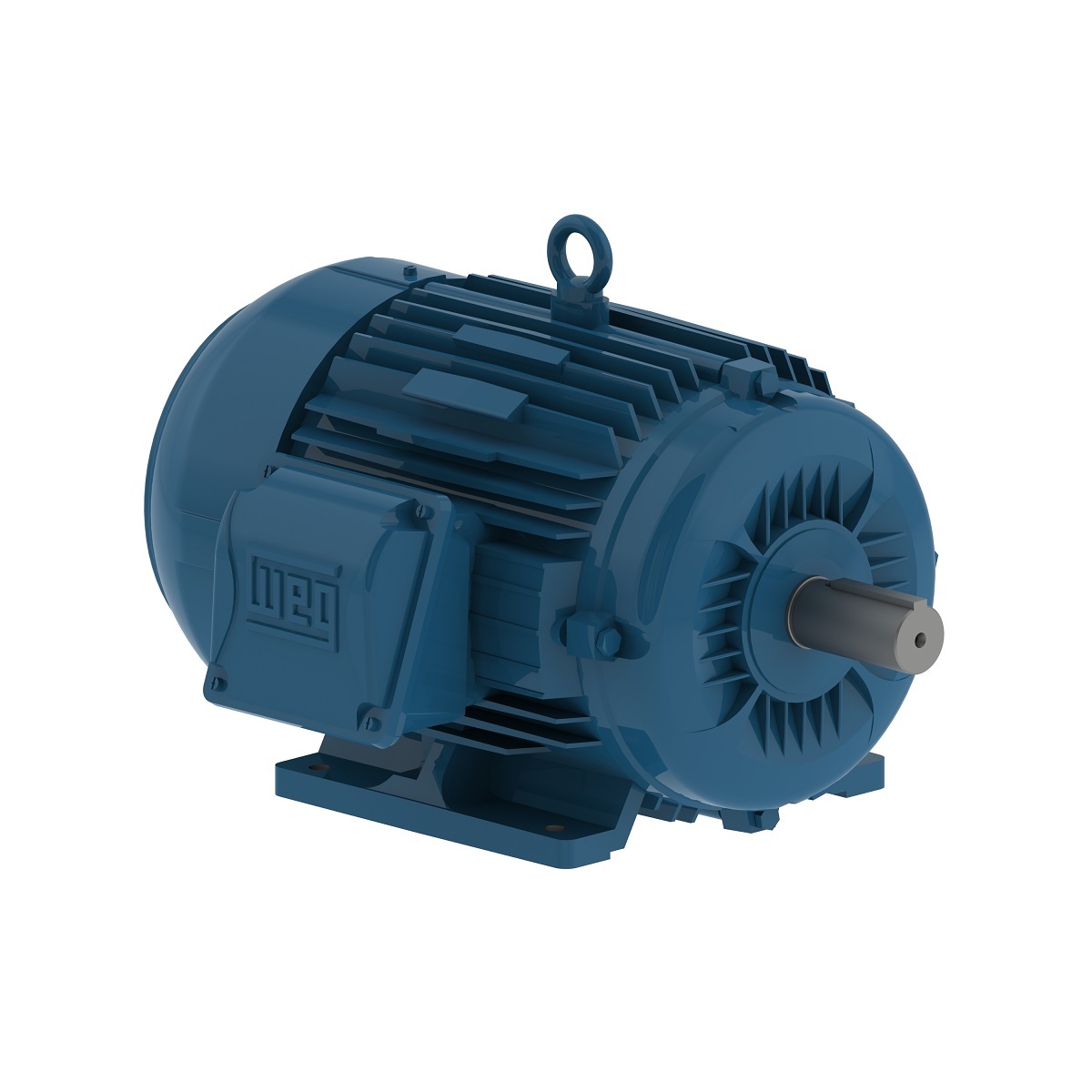

Description
Technical Data
Technical Data
| Frame | 182/4T |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1755 rpm |
| Slip | 2.50 % |
| Rated Voltage | 230/460 V |
| Rated Current | 12.9/6.45 A |
| L. R. Amperes | 96.7/48.4 A |
| LRC | 7.5x(Code J) |
| No Load Current | 6.40/3.20 A |
| Rated Torque | 15.0 ft.lb |
| Locked Rotor Torque | 229 % |
| Breakdown Torque | 320 % |
| Locked Rotor Time | 27s (cold) 15s (hot) |
| Moment of Inertia (J) | 0.4003 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 56.0 dB(A) |
| Approx. Weight | 101 lb |
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 88.5 | 89.5 | 89.5 |
Power Factor
| 50% | 75% | 100% |
|---|---|---|
| 0.62 | 0.74 | 0.80 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main Terminal Box Hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 – C2) |
| Grounding Lugs | Single |
| Fan Cover Material | Steel |
| Tropicalized Painting | Without |
| Fan Material | Plastic |
| Bearing Cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload Protector (Phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
Dimensions
