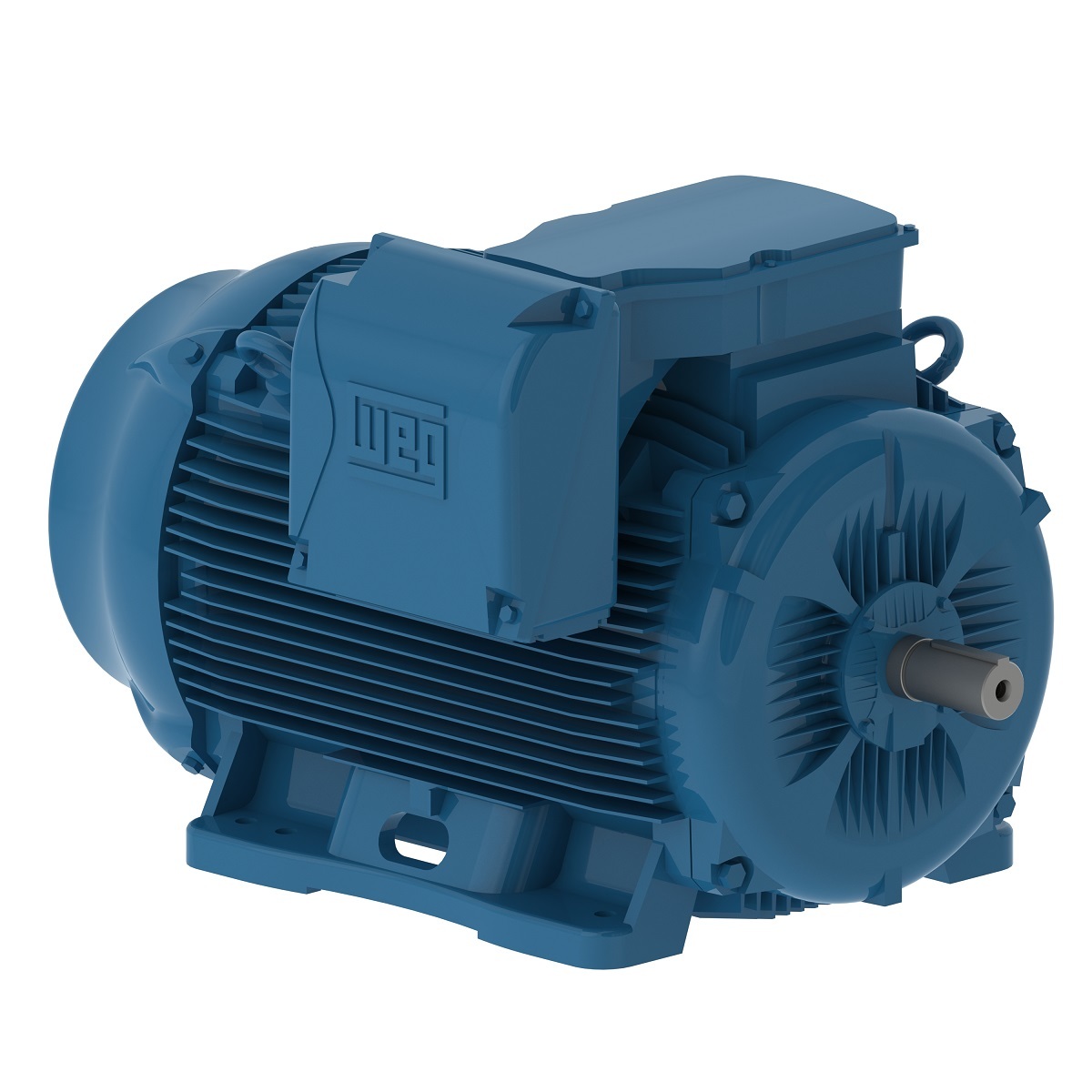

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 200 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
Unit Price Only
$16,162.76
Available on backorder
Note: This item is heavy and delivery requires a forklift or loading dock for unloading only at commercial locations.
If the delivery address is residential and a forklift/dock is not available, please add the Liftgate + Non-Commercial Delivery Service from here:
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Technical Data| Brand | WEG |
|---|---|
| Frame | 445/7T |
| Output | 200 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1785 rpm |
| Slip (%) | 0.83 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 460/230 |
| L. R. Amperes (A) | 3128/1564 |
| LRC | 6.8x (Code G) |
| No load Current (A) | 140/70.0 |
| Rated Torque (ft.lb) | 588 |
| Locked Rotor Torque (%) | 229 |
| Breakdown Torque (%) | 250 |
| Locked Rotor Time | 28s (cold) 16s (hot) |
| Moment of Inertia (J) | 76.2 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 73.0 dB(A) |
| Approx. Weight (lb) | 2305 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 95.7 | 95.8 | 96.2 | 96.2 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.5 | 0.73 | 0.82 | 0.85 |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Main terminal box hole | 2 x NPT 3″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 – C3) |
| Grounding Lugs | Double |
| Fan Cover Material | Cast Iron |
| Tropicalized Painting | Without |
| Bearing Cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Fan Material | Plastic |
