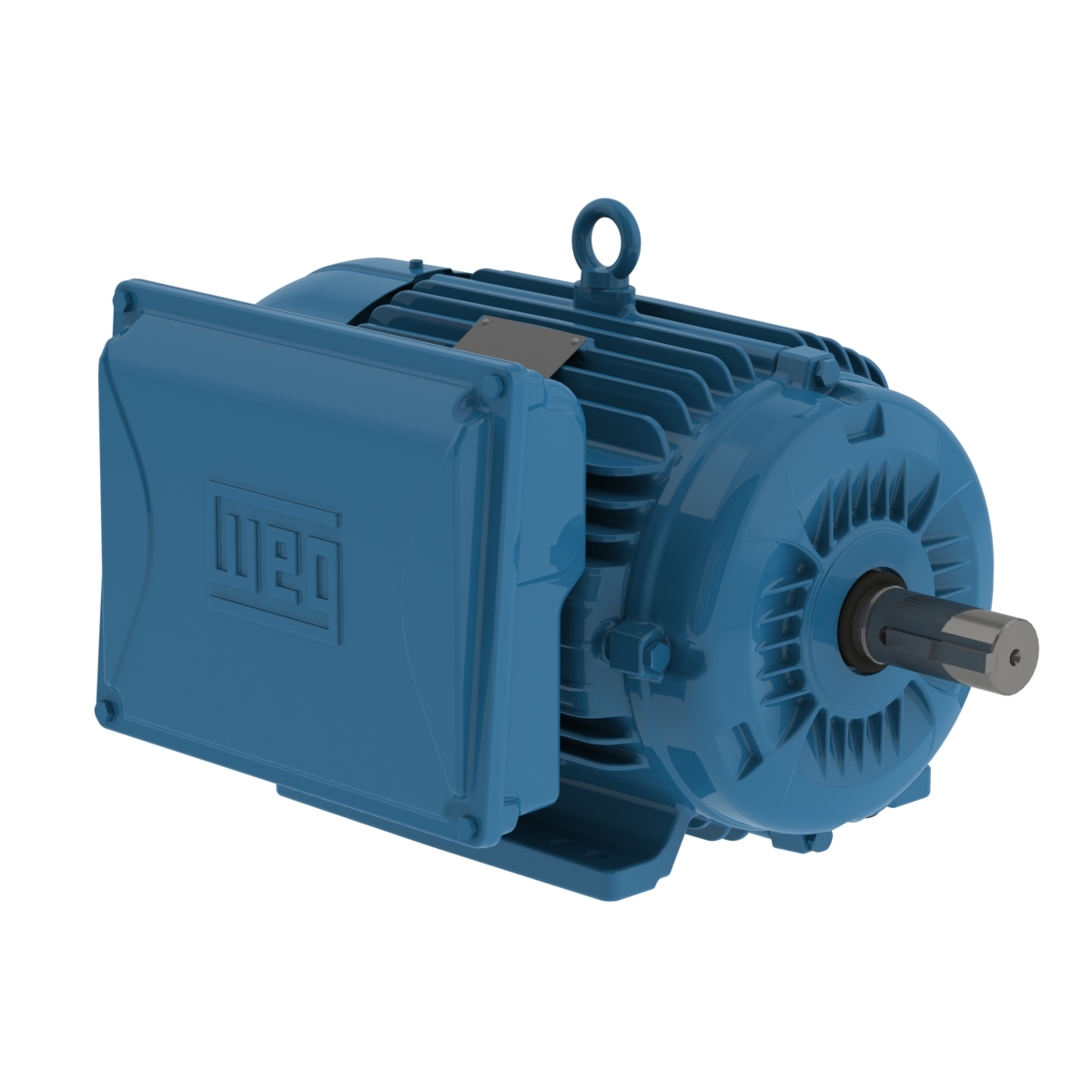

WEG Motor W22 – 14 HP, 230V – 1Ph, 1730RPM, TEFC, Foot-mounted, Model 01418ES1D215TZ-W22

5/5

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


WEG Motor W22 – 14 HP, 230V – 1Ph, 1730RPM, TEFC, Foot-mounted, Model 01418ES1D215TZ-W22

5/5

 Unit Price Only

$1,719.99

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Cart

Advertisement

Product Data >>>

High starting torque.
Suitable for domestic and rural power supply conditions.
Adaptable design suitable for a variety of applications and needs.

Product features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 14 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 – TEFC

Description

Download Full Product Data Sheet


Drawings



Electric Motors

Frame 215TZ
Output 14 HP (10.3 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1730 rpm
Slip 3.89 %
Rated voltage 230 V
Rated current 60.7 A
L. R. Amperes 443 A
LRC 7.3x(Code J)
No load current 28.0 A
Rated torque 42.5 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class H
Service factor 1.07
Temperature rise 125 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 – TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Approx. weight³ 220 lb

Efficiency

50% 75% 100%
75.0 79.0 82.0

Power factor

50% 75% 100%
0.78 0.86 0.90

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1″
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 – C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector

Additional information

Brands

Electric Motor Voltage

Phase

Horse Power Electric Motor

Material Electric motor

RPM

1800
