Unit Price Only
$11,208.99
Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here:
Note: For residential addresses additional delivery fees may apply
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP

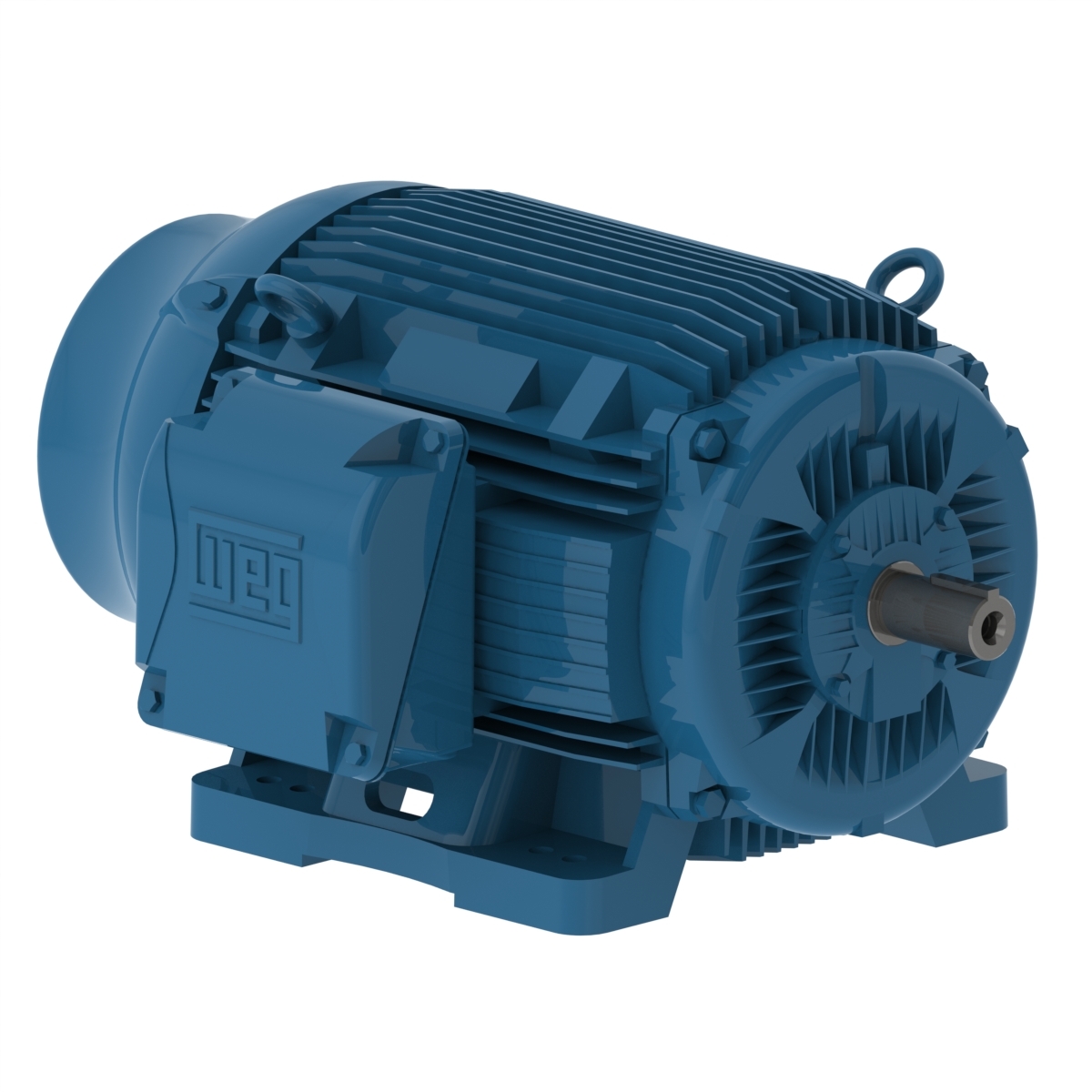

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 125 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
Technical Data| Brand | WEG |
|---|---|
| Frame | 444/5T |
| Output | 125 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1785 rpm |
| Slip (%) | 0.83 |
| Rated Voltage (V) | 460 |
| Rated Current (A) | 139 |
| L. R. Amperes (A) | 904 |
| LRC | 6.5x (Code G) |
| No load Current (A) | 40.0 |
| Rated Torque (ft.lb) | 368 |
| Locked Rotor Torque (%) | 200 |
| Breakdown Torque (%) | 229 |
| Locked Rotor Time | 48s (cold) 27s (hot) |
| Moment of Inertia (J) | 57.2 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 73.0 dB(A) |
| Approx. Weight (lb) | 1542 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 94.9 | 95.0 | 95.4 | 95.4 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.52 | 0.74 | 0.82 | 0.85 |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Constant Resin Flow |
| Main terminal box hole | 2 x NPT 3″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 4140 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 – C3) |
| Grounding Lugs | Double |
| Fan Cover Material | Cast Iron |
| Tropicalized Painting | Without |
| Bearing Cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Fan Material | Plastic |
| Brands | |
|---|---|
| Electric Motor Voltage | |
| Phase | |
| Horse Power Electric Motor | |
| Material Electric motor | |
| RPM | 1800 |
