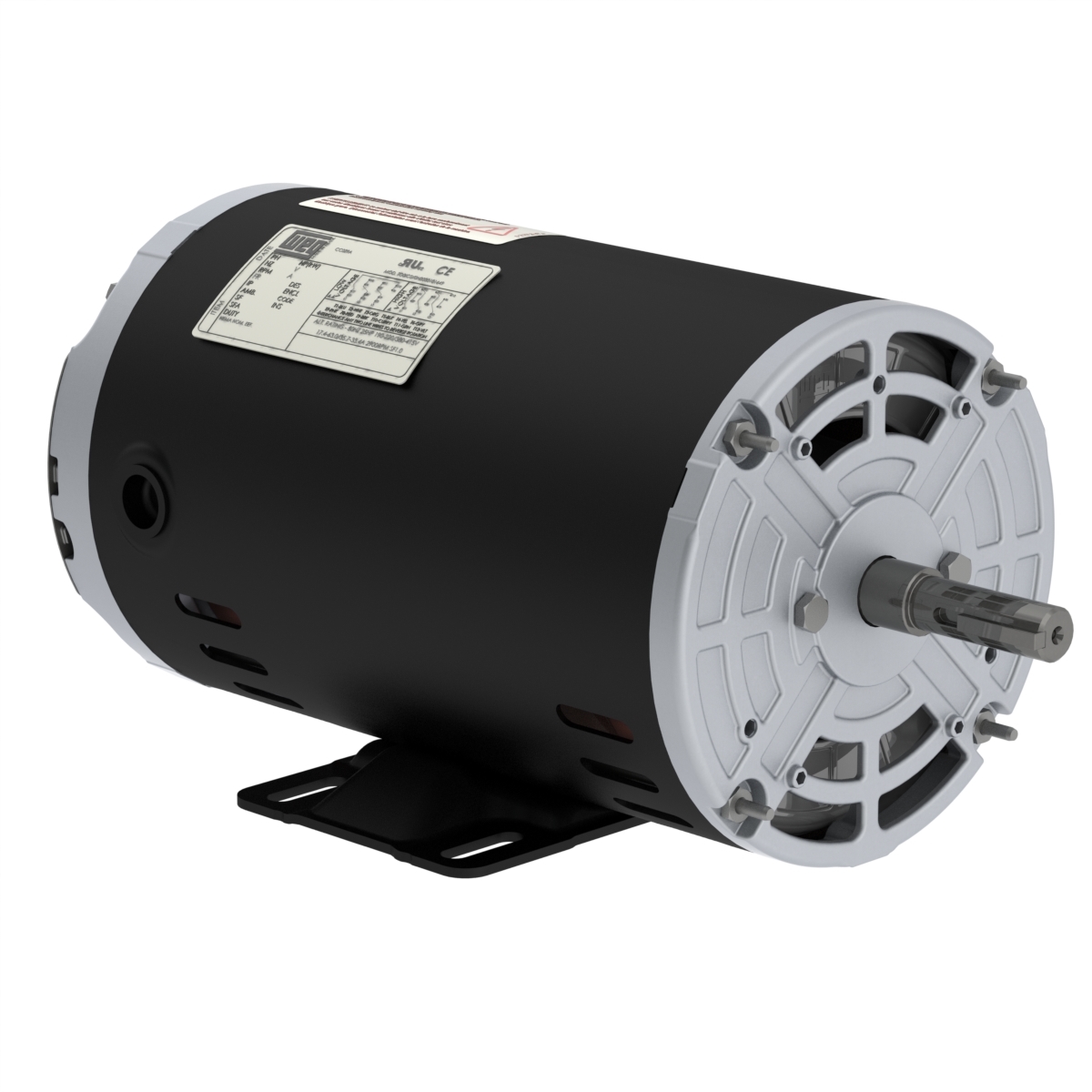

WEG Motor Pool Spa Pump Start Capacitor – 0.75HP, 230/460V – 3Ph, 60Hz, 1760RPM, IC01-ODP, Footless, Model: .7518OT3E56-S

WEG Motor Pool Spa Pump Start Capacitor - 0.75HP, 230/460V - 3Ph, 60Hz, 1760RPM, IC01-ODP, Footless, Model: .7518OT3E56-S
SKU: 5160703 Categories: , , , , , , , , Tags: , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5160703 Categories: , , , , , , , , Tags: , ,

WEG Motor Pool Spa Pump Start Capacitor – 0.75HP, 230/460V – 3Ph, 60Hz, 1760RPM, IC01-ODP, Footless, Model: .7518OT3E56-S

Print Product Page

The pool spa motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The ODP Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications.

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 0.75 HP
Flange Without
Mounting Foot-mounted
Terminal box Without
Enclosure IC01 – ODP

SKU 5160703 Categories , , , , , , , , Tags , ,

UNIT PRICE

$252.81

Motor Selection Tool
Not sure this is the correct motor?
Use our Electric Motor Filter to compare HP, voltage, phase, RPM, frame size, enclosure, and mounting options.
Find the Right Motor
In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Technical Data

Technical Data

Brand WEG
Frame 56
Output 0.75 HP (0.55 kW)
Number of Poles 4
Frequency 60 Hz
Rated Speed 1760 rpm
Slip (%) 2.22
Rated Voltage (V) 208-230/460
Rated Current (A) 2.54-2.30/1.15
L. R. Amperes (A) 18.5-16.8/8.40
LRC (A) 7.3x (Code K)
No load Current (A) 1.38-1.60/0.80
Rated Torque (ft.lb) 2.24
Locked Rotor Torque (%) 250
Breakdown Torque (%) 300
Locked Rotor Time 37s (cold) 21s (hot)
Moment of Inertia (J) 0.0747 sq.ft.lb
Insulation Class F
Service Factor 1.25
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 – ODP
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 52.0 dB(A)
Approx. Weight (lb) 23.3

Efficiency

25% 50% 75% 100%
71.6 74.0 78.5 81.1

Power Factor

25% 50% 75% 100%
0.29 0.52 0.65 0.74

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Tropicalized Painting Without
Bearing cap No
Drip Cover Without
Overload Protector (phenolic) Without
