SKU: 5171151

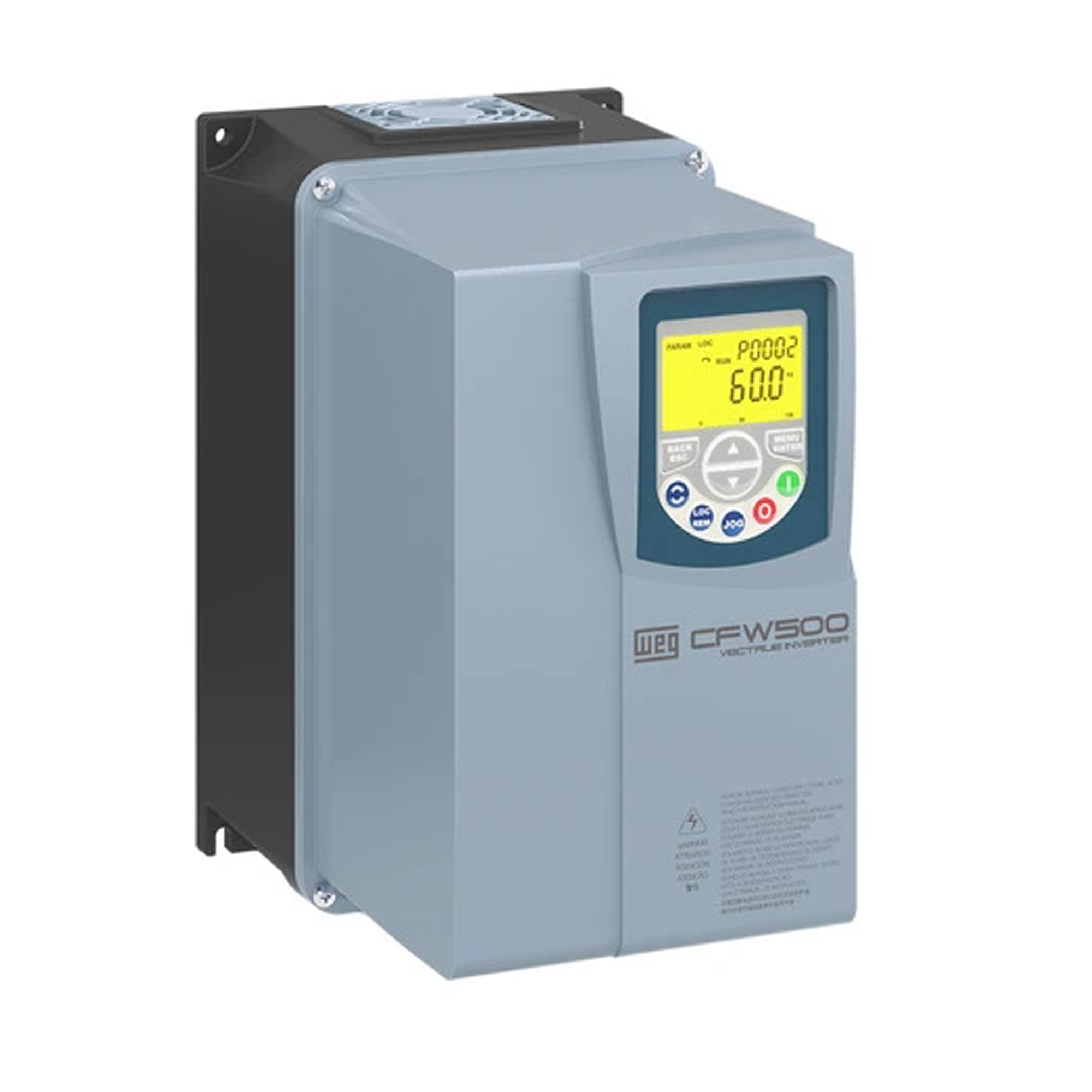

WEG DRIVE CFW500A16P0T2DB66G2, 3Ph, 200/240 V, IP66

WEG DRIVE CFW500A16P0T2DB66G2, 3Ph, 200/240 V, IP66
Free Shipping
SKU: 5171151 Categories: , Tags: , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5171151 Categories: , Tags: , , Brand:
SKU: 5171151

WEG DRIVE CFW500A16P0T2DB66G2, 3Ph, 200/240 V, IP66





Product features

Power supply 200-240 V
Input phases Three-phase
Configuration With options
Rated current (ND) Not applicable
Rated current (HD) 16 A
RFI filter Without filter
Enclosure IP66
Dynamic braking Standard with braking
Safety Stop Prepared to install the accessory CFW500-SFY2
Electronic supply Not Available
SKU 5171151 Categories , Tags , , Brand:

UNIT PRICE

$884.52

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description





Control method – induction motor V/f, VVW, Sensorless, Encoder and VVW PM
Rated efficiency ≥ 97%
Link Inductor No
Conformal Coating 3C2 (IEC 60721-3-3:2002)
SoftPLC Yes, incorporated
Temperature -10 °C a 40 °C
USB port Only with plug-in
Memory card Not included in the product
I/O standard 4 x DI; 1 relé NA/NF e 1 transistor x DO; 1 x AI; 1 x AO.
Safety Stop Prepared to install the accessory CFW500-SFY2
Display Numeric LCD

Main characteristics

  • Output current from 1,0 a 33 A (0 0,33 to 20 cv, 33 to 20 cv);
  • Single-phase or three-phase supply voltage 200-240 V or 380-480 V;
  • Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM);
  • Selectable plug-in modules;
  • Plug and Play philosophy;
  • Built-in operating and programming interface (HMI);
  • Pump Genius: functions dedicated to driving pumps;
  • Safety Function: STO and SS1 level SIL 3 / PLe;
  • SoftPLC – built-in PLC functionalities;
  • Braking IGBT (incorporated for all models);
  • Protection ratings;
  • Models with optional built-in disconnector for power isolation;
  • Internal RFI filter (optional);
  • USB communication port (CFW500-CUSB accessory);
  • Free WLP and WPS programming software application available at  Softwares.
