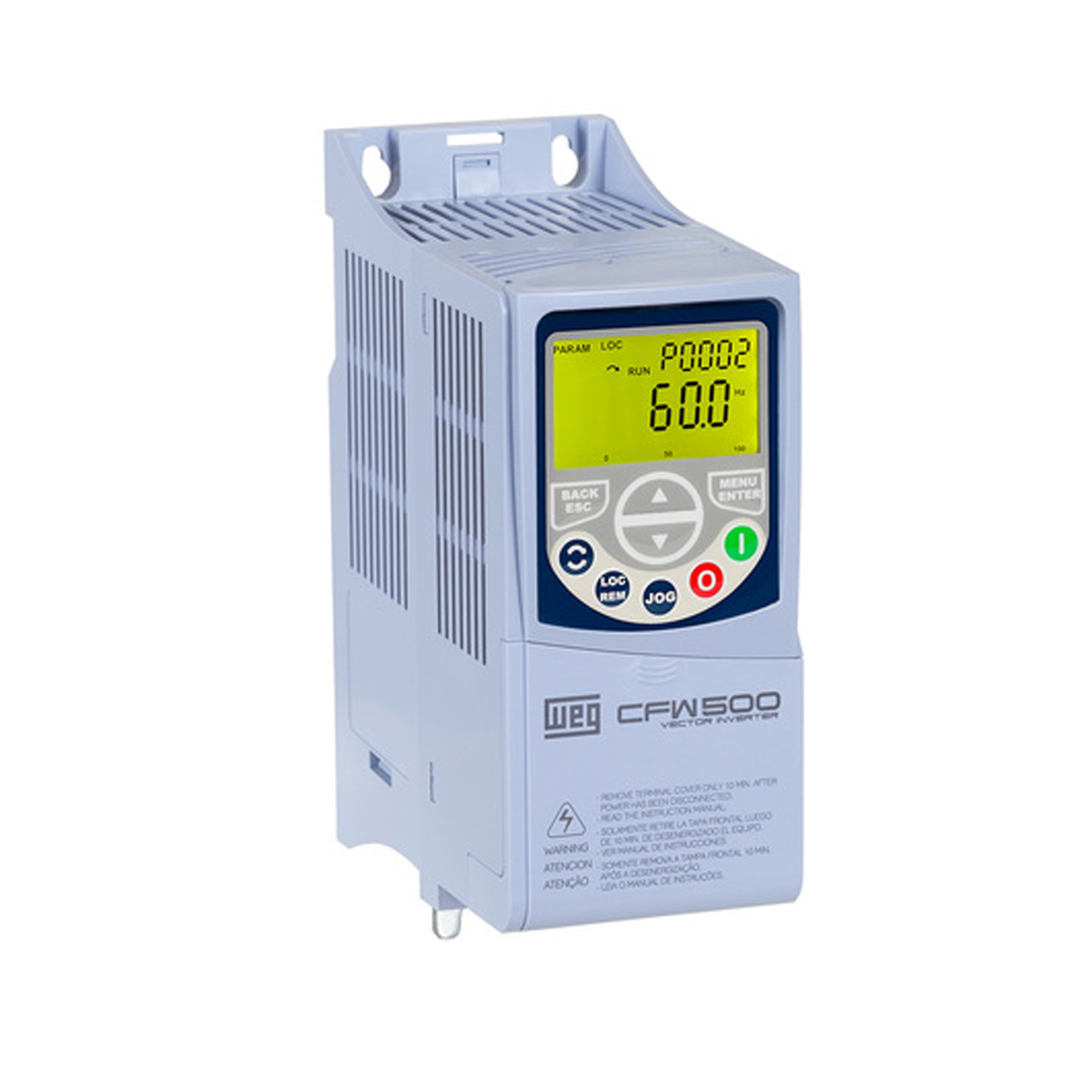

WEG DRIVE CFW500A07P0T2NB20G2 , 3Ph, 200/240 V, IP20

WEG DRIVE CFW500A07P0T2NB20G2 , 3Ph, 200/240 V, IP20
SKU: 5171148 Categories: , Tags: , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5171148 Categories: , Tags: , , Brand:

WEG DRIVE CFW500A07P0T2NB20G2 , 3Ph, 200/240 V, IP20

Print Product Page

With a modern design and power ranging from 0.25 to 175 cv (0.18 to 132 kW), the CFW500 frequency inverter is a high performance variable speed drive, which assists in controlling speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, which adds PLC (Programmable Logic Controller) functions, STO and SS1 Safety Functions, Pump Genius, which brings dedicated pumping functions, and selectable plug-in modules, providing a flexible and optimized solution for any application.



Power supply 200-240 V
Input phases Three-phase
Configuration With options
Rated current (ND) Not applicable
Rated current (HD) 7 A
RFI filter Without filter
Enclosure IP20
Dynamic braking Standard without braking
Safety Stop Prepared to install the accessory CFW500-SFY2
Electronic supply Not Available
SKU 5171148 Categories , Tags , , Brand:

UNIT PRICE

$411.47

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description







Control method – induction motor V/f, VVW, Sensorless, Encoder and VVW PM
Rated efficiency ≥ 97%
Link Inductor No
Conformal Coating 3C2 (IEC 60721-3-3:2002)
SoftPLC Yes, incorporated
Temperature -10 °C a 50 °C
USB port Only with plug-in
Memory card Not included in the product
I/O standard 4 x DI; 1 relé NA/NF e 1 transistor x DO; 1 x AI; 1 x AO.
Safety Stop Prepared to install the accessory CFW500-SFY2
Display Numeric LCD

Main characteristics

  • Output current from 1.0 to 211 A (0.25 to 175 cv / 0.18 to 132 kW);
  • Single-phase or three-phase supply voltage 200-240 V or 380-480 V;
  • Scalar Control (V / F), Vector Control (VVW), Sensorless Vector or Vector with Encoder Control and Permanent Magnet Motor Control (VVW PM);
  • Selectable plug-in modules;
  • Plug and Play philosophy;
  • Built-in operating and programming interface (HMI);
  • Built-in RS485 port (in any selected plug-in module);
  • Pump Genius: functions dedicated to driving pumps;
  • Safety Function: STO and SS1 level SIL 3 / PLe;
  • SoftPLC – built-in PLC functionalities;
  • Braking IGBT (available from frame B);
  • 3C2 or 3C3 protection class for application in environments with corrosive chemicals;
  • IP20 (standard) and NEMA1 (optional) protection ratings;
  • Fan with quick exchange system;
  • Internal RFI filter (optional);
  • USB communication port (CFW500-CUSB accessory);
  • Free WLP and WPS programming software application available at  Softwares.
