| Power supply | 200-240 V |
|---|---|
| Input phases | Single-phase |
| Rated current (HD) | 4.2 A |
| Enclosure | IP20 |
$184.16

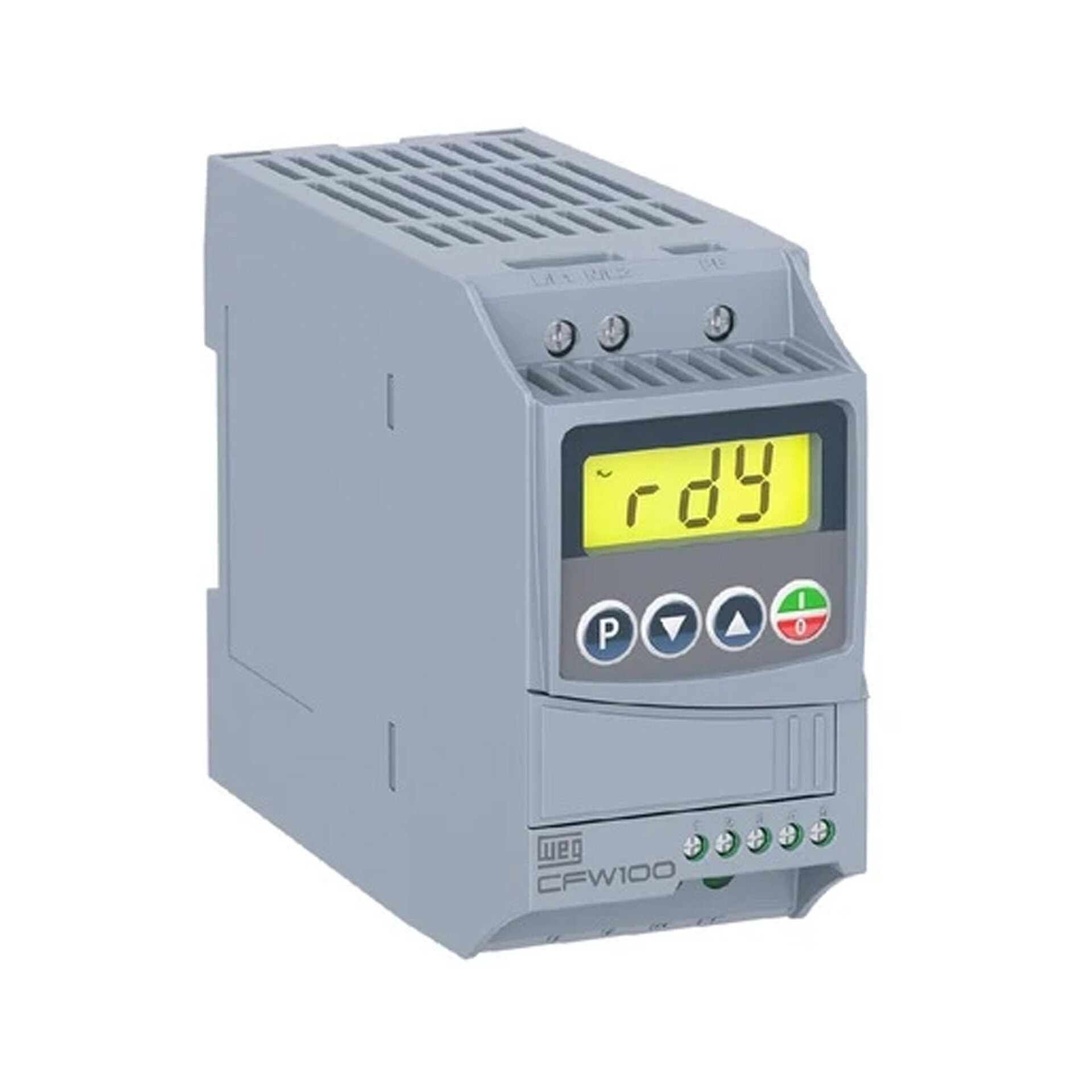

Functions available in the standard version, such as SoftPLC, Flying Starting, Ride Through, PID and Sleep Mode, provide electric energy savings, fast operating response, in addition to helping prevent possible breakdowns or involuntary stoppages. Easily installed accessories for network communication and I/O expansion enable the adaptation of the CFW100 for different applications. The flash memory module allows you to copy the setting from one CFW100 and download it to others in seconds, even with the inverters turned off, being an ideal solution for machine manufacturers.
| Control method – induction motor | V/f (escalar) and VVW |
|---|---|
| Rated efficiency | ≥ 97% |
| Conformal Coating | 3C2 (IEC 60721-3-3:2002) |
| SoftPLC | Yes, incorporated |
| USB port | Yes, by CFW100-CUSB |
| Memory card | Not included in the product |
| Display | Numeric LCD |
Technical Data| Brands | |
|---|---|
| Power supply | 200-240 |
