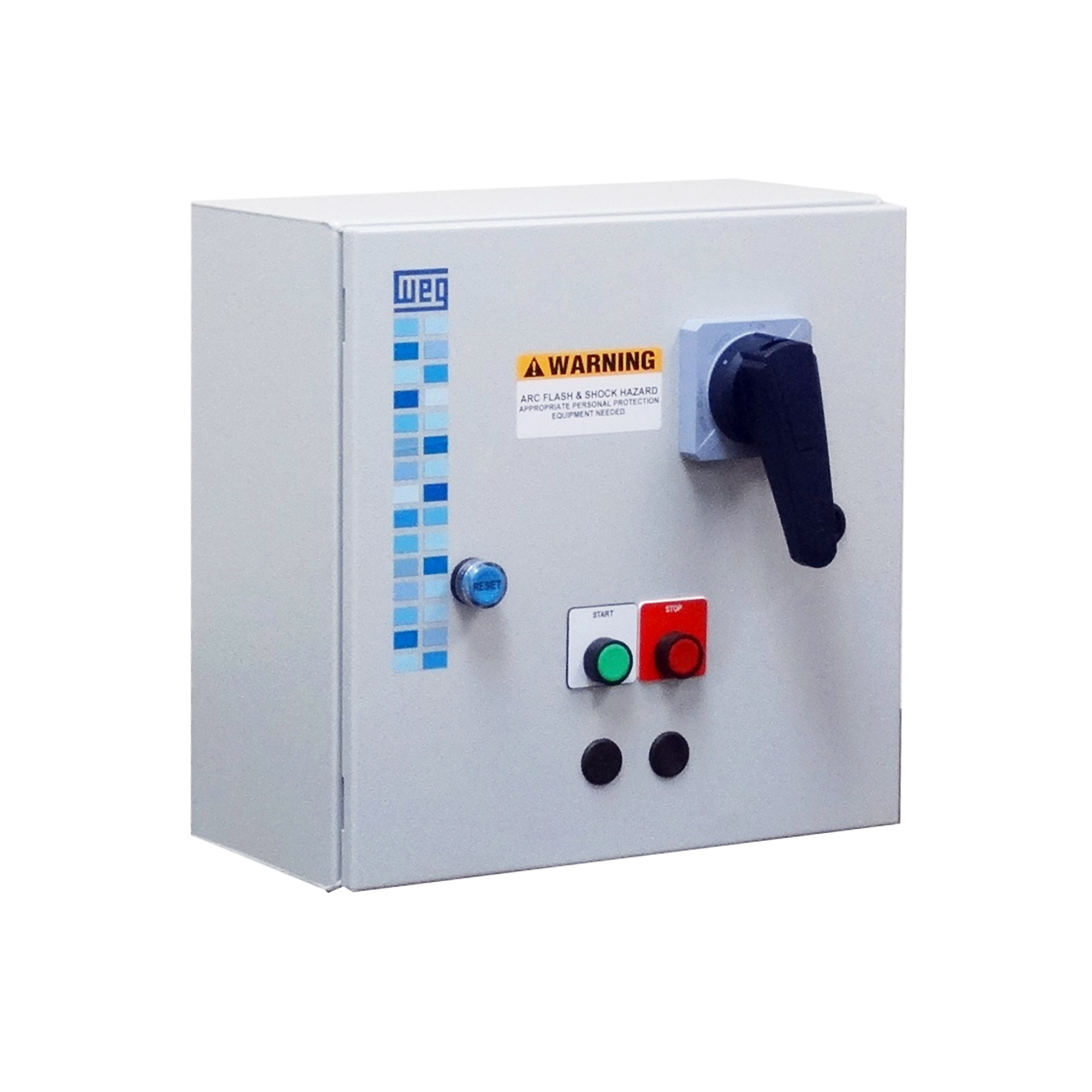

WEG Control Panel ESWC Series Combination Starters 20/40HP~ 3PH ~ 208-460V, 120CV with Transformer – ESWC-65TM1K9-RE6

WEG Control Panel ESWC Series Combination Starters 20/40HP~ 3PH ~ 208-460V, 120CV with Transformer - ESWC-65TM1K9-RE6
Free Shipping
SKU: 5170252 Categories: , , Tags: ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5170252 Categories: , , Tags: ,
SKU: 5170252

WEG Control Panel ESWC Series Combination Starters 20/40HP~ 3PH ~ 208-460V, 120CV with Transformer – ESWC-65TM1K9-RE6



ESWC Series Enclosed Starters

WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.



  Technical Data
Model ESWC-65TM1K9-RE6
Panel type Across the line
Horsepower (HP) 40HP
Thermal Managment None
General enclosure options None
Main voltage 208/230/460 V
Control Voltage

Control power transformer

 120 V with Transformer

100 VA – Open
Frequency 60 Hz
SCCR rating 5 kAIC
Disconnect switch type Circuit Breaker rotary handle disconnect
Bypass type None
Control options Start Pushbutton, Stop Pushbutton and Reset Pushbutton
Enclosure rating Type 3R/4/12
Certification UL

Standard Features

  • Multi-Rated Enclosure Type: 1/3R/4/12;
  • Multi-Voltage Transformer: primary 208V/230V/460V – secondary 120V;
  • Branch Disconnect: rotary through-the-door handle;
  • Short-Circuit Protection: molded case circuit breaker;
  • Motor Control: magnetic IEC contactor;
  • Overload Protection: solid-state overload relay – Selectable trip class 10, 20, 30 / (5:1) ratio adjustable current setting;
  • Standard Control Devices: RESET, START, STOP pushbuttons;
  • Custom control options available upon request
SKU 5170252 Categories , , Tags ,

UNIT PRICE

$1,791.05

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days
✓
Warranty
Manufacturer coverage
✓
Hassle-Free Returns
See return policy
✓
Real Support
(786) 613-5872 · [email protected]

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Standard Features

  • Multi-Rated Enclosure Type: 1/3R/4/12;
  • Multi-Voltage Transformer: primary 208V/230V/460V – secondary 120V;
  • Branch Disconnect: rotary through-the-door handle;
  • Short-Circuit Protection: molded case circuit breaker;
  • Motor Control: magnetic IEC contactor;
  • Overload Protection: solid-state overload relay – Selectable trip class 10, 20, 30 / (5:1) ratio adjustable current setting;
  • Standard Control Devices: RESET, START, STOP pushbuttons;
  • Custom control options available upon request
