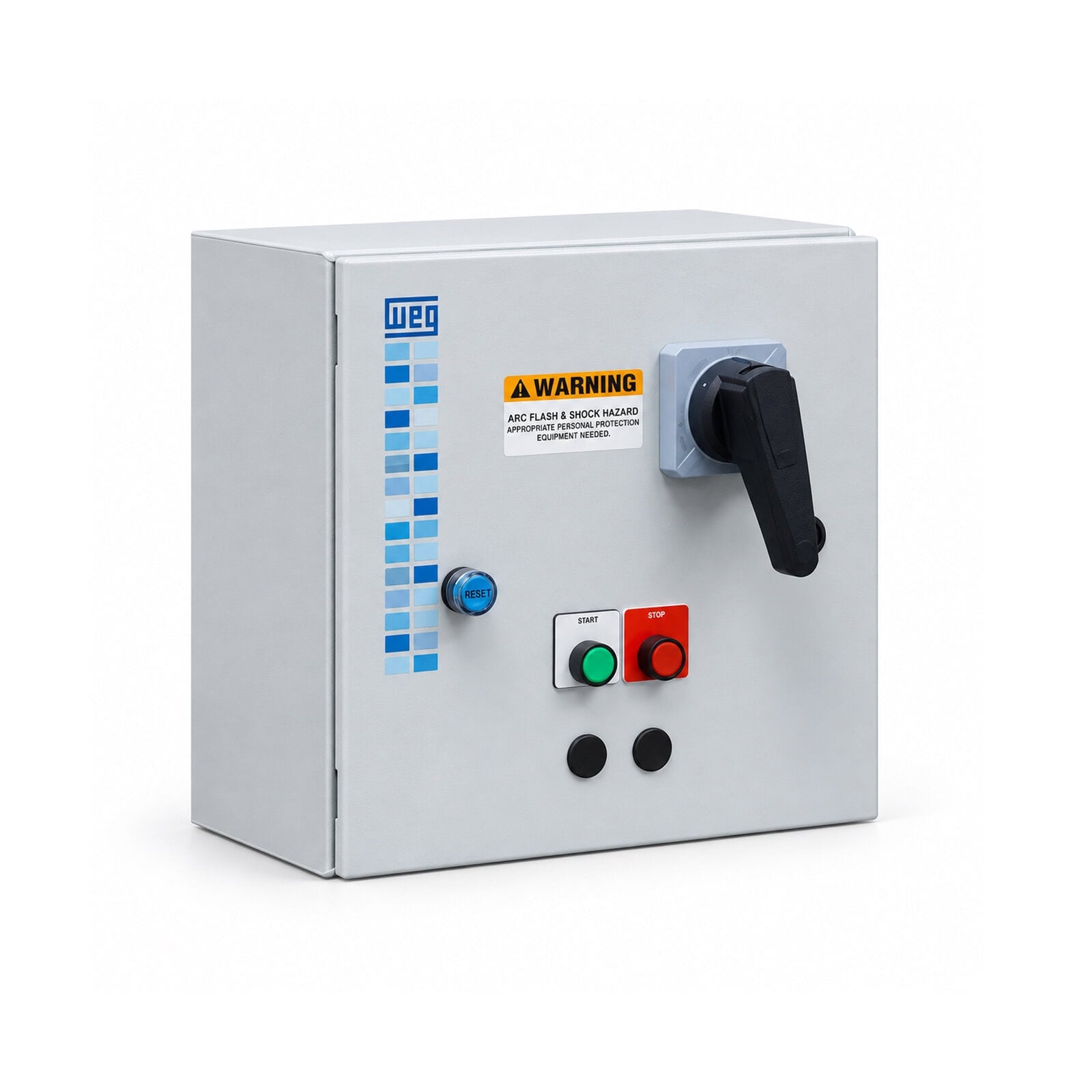

WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.
| Technical Data | ||
| Model | ESWC-38TM1A9-RE4 | |
| Panel type | Across the line | |
| Horsepower (HP) | 10/10/25HP | |
| Thermal Managment | None | |
| General enclosure options | None | |
| Main voltage | 208/230/460 V | |
| Control Voltage | 120 V | |
| Frequency | 60 Hz | |
| SCCR rating | 5 kAIC | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Bypass type | None | |
| Control options | Start Pushbutton, Stop Pushbutton and Reset Pushbutton | |
| Enclosure rating | Type 3R/4/12 | |
| Certification | UL | |
$1,522.94
