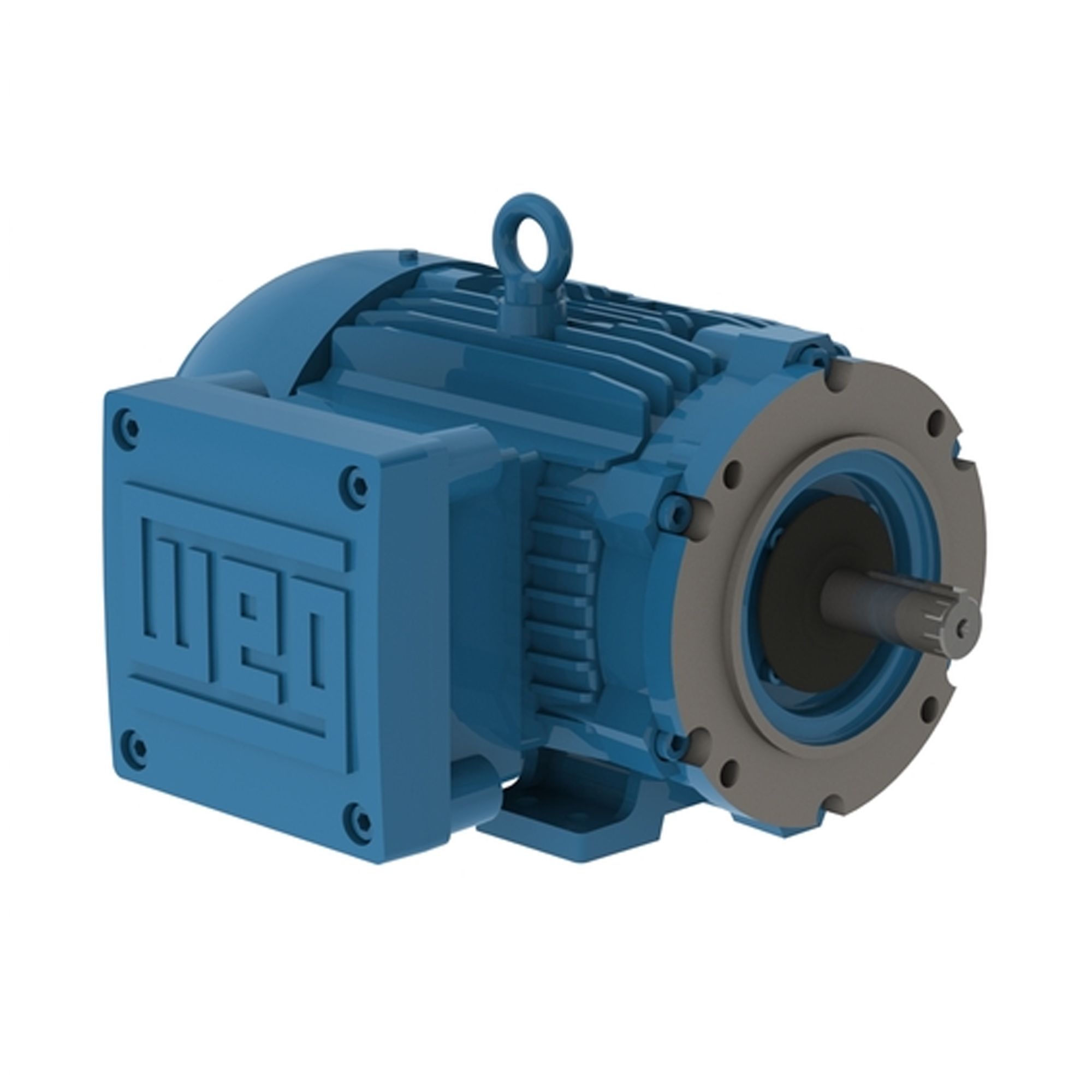

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 1.5 HP |
| Mounting | Foot-mounted |
| Flange | C |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |


Unit Price Only
$934.99
Forklift or loading dock required for commercial deliveries.
This item ships via freight and cannot be unloaded without proper equipment.
Residential Delivery
If the delivery address is residential , or classified as residential by the freight carrier , Liftgate + Residential Delivery Service must be added before shipment.
Important
The freight carrier determines whether an address is commercial or residential at the time the shipment is booked.
If the customer indicates the location is “commercial” (for example: farm, ranch, home-based business, or similar), but the carrier classifies the address as residential, residential and/or liftgate charges will still apply and must be paid before delivery can be scheduled.
Add the required services below if your location is residential or if a forklift/loading dock is not available.
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
| Brands | |
|---|---|
| Electric Motor Voltage | |
| Phase | |
| Horse Power Electric Motor | |
| Material Electric motor | |
| RPM | 1800 |
| Frame Size | 143/5 |
| Motor Standard | NEMA, Explosion Proof |
