Vertical Multistage Centrifugal Pump, 25HP, 12600GPH, 220/480V, 3PHASE, Model SBI 32-5, SS304

5/5

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Vertical Multistage Centrifugal Pump, 25HP, 12600GPH, 220/480V, 3PHASE, Model SBI 32-5, SS304

5/5

 Unit Price Only

$5,887.00$5,987.00

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Cart

Advertisement

Product Data >>>

The SBI (Stainless Steel 304) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBI pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.



Applications

WATER SUPPLY AND PRESSURE BOOSTING

  • Pressure boosting in buildings, hotels, residential complexes
  • Pressure booster stations, supply of water networks
  • Pressure boosting for industrial water supply

IRRIGATION AND AGRICULTURE

  • Greenhouses
  • Sprinkler irrigation
  • Field irrigation (flooding)

LIGHT INDUSTRY

  • Washing and cleaning systems
  • Car washing facilities
  • Fire fighting systems
  • Process water systems
  • Machine tools (cooling lubricants)

WATER TREATMENT

  • Water softeners and de-mineralization Reverse Osmosis systems
  • Distillation systems
  • Filtration
  • Ultra-filtration systems

HEATING, VENTILATION AND AIR-CONDITIONING

  • Boilers
  • Induction heating
  • Heat exchangers
  • Refrigerators
  • Cooling towers and systems
  • Temperature control systems

Description

Technical Data

More Details

Type Vertical Multistage Centrifugal Pump
Model SBI 32-5
Brand Gol Pumps
Manufacturer’s Warranty 1 year Limited Warranty
Material Stainless Steel 304
Port Size (in.) 2.5
Max Flow (GPH) 12600
HP 25
Volts 220/480V – Three phase – 60Hz
Amps (A) 59.7/28.5
Max. Total Head (ft.) 469
Max. Suction Lift (ft.) 17
Max. PSI 205
Suction Port (in.) 2.5
Discharge Port (in.) 2.5
Centrifugal Yes
Dimensions L x W x H (in.) 12.6 x 11.8 x 56.8
Product Weight (lbs.) 434

Performance Curve

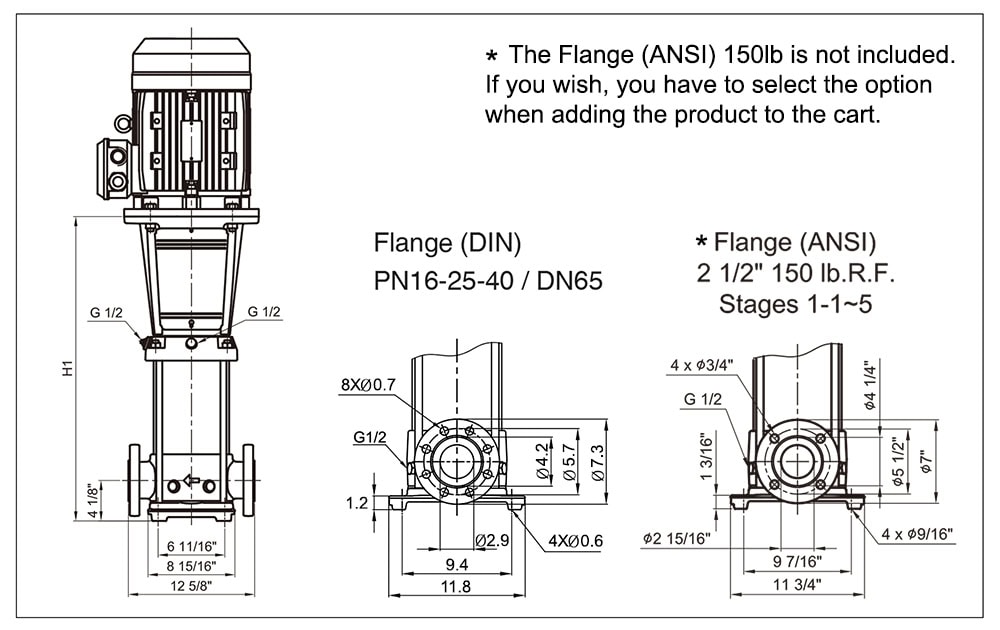

Dimensions

60Hz

Motor P2 Nominal current (A) Dimension [mm] Net weight [kg]
Three phase DIN flange Port Size D1 D2 DIN flange
Pump type [KW] [HP] 220/480V H1 H2 DNA DNM
SBI 32-5 18.5 25 59.7/28.5 894 1434 2.5″ 2.5″ 318 241 197.3

Parts List and Materials

Additional information

Weight 430 lbs
Dimensions 12.6 × 11.8 × 57 in
Brands

category ac pumps

AC voltage

, , ,

Horse power Ac

Phase

Pump Inlet and Outlet_Multistage
