Application:

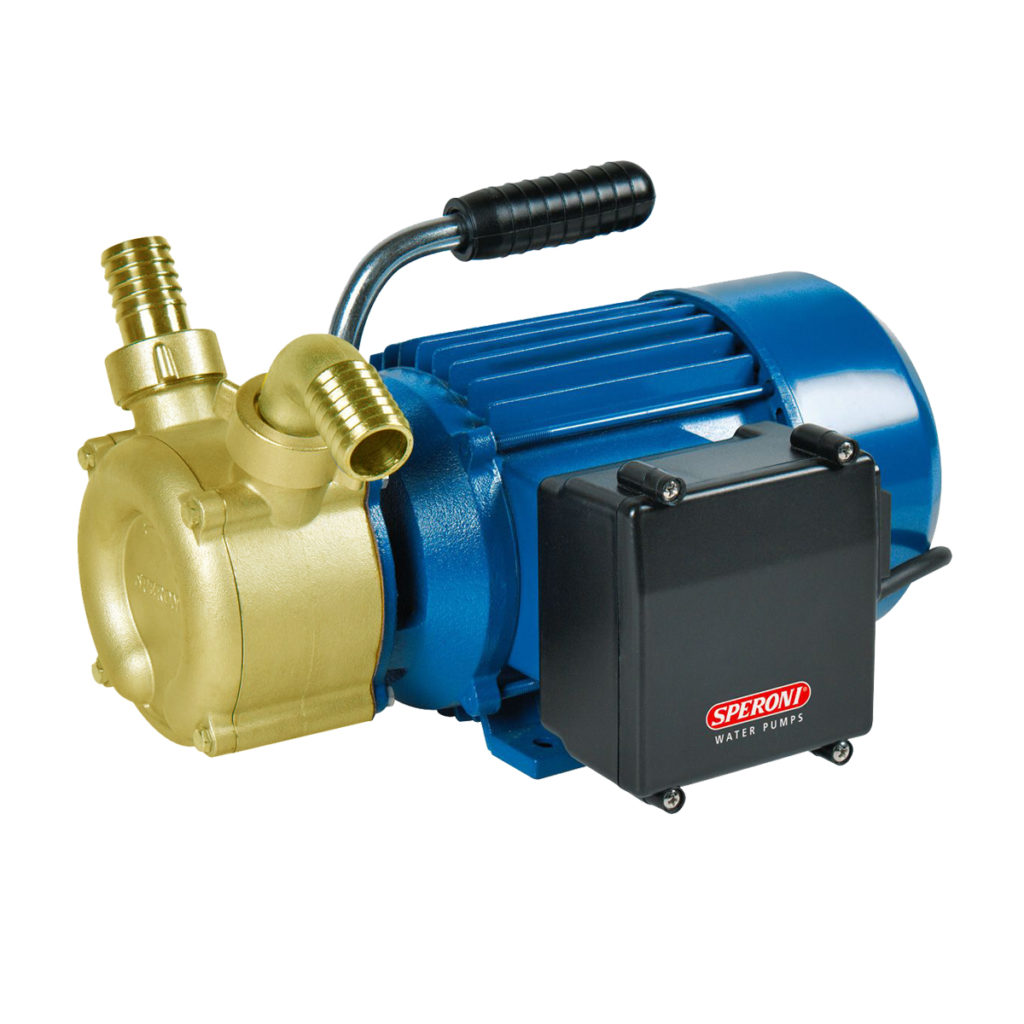

Bronze electropumps find their application in the transfer of salt water, clear water, oil and diesel and mixures of liquids with these compenents. For the correct functioning of the pump, use clean water, or non-agressive liquids only, without sand or other solid impurities. The special selfpriming system allows priming up to 8 meters depth. The electric motor is fitted with a reverser which allows the pump to rotate in two directions. The bidirectional rotation obtained through the reverser makes transfer operations easier since the suction side can be used for delivery and the delivery side for suction.

OPERATING CONDITIONS:

• – Liquid temperature up to 95°F (for home use
  according to EN 60335-2-41)
  Temperature max. liquid: 140°F (for other uses)
• – Ambient temperature up to 104°F
• – Total suction lift up to 26 ft.

MOTOR:

• – Single-phase 220V – 60Hz
• – Two-Pole induction motor (n = 3450 min-1)
• – Insulation Class F
• – Protection IP 44

MATERIALS:

• – Pump body: Bronze
• – Motor Support: Cast Iron
• – Impeller: Brass
• – Connectors: Brass
• – Shaft with rotor:  Stainless Steel AISI 304
• – Double oil seal

.
