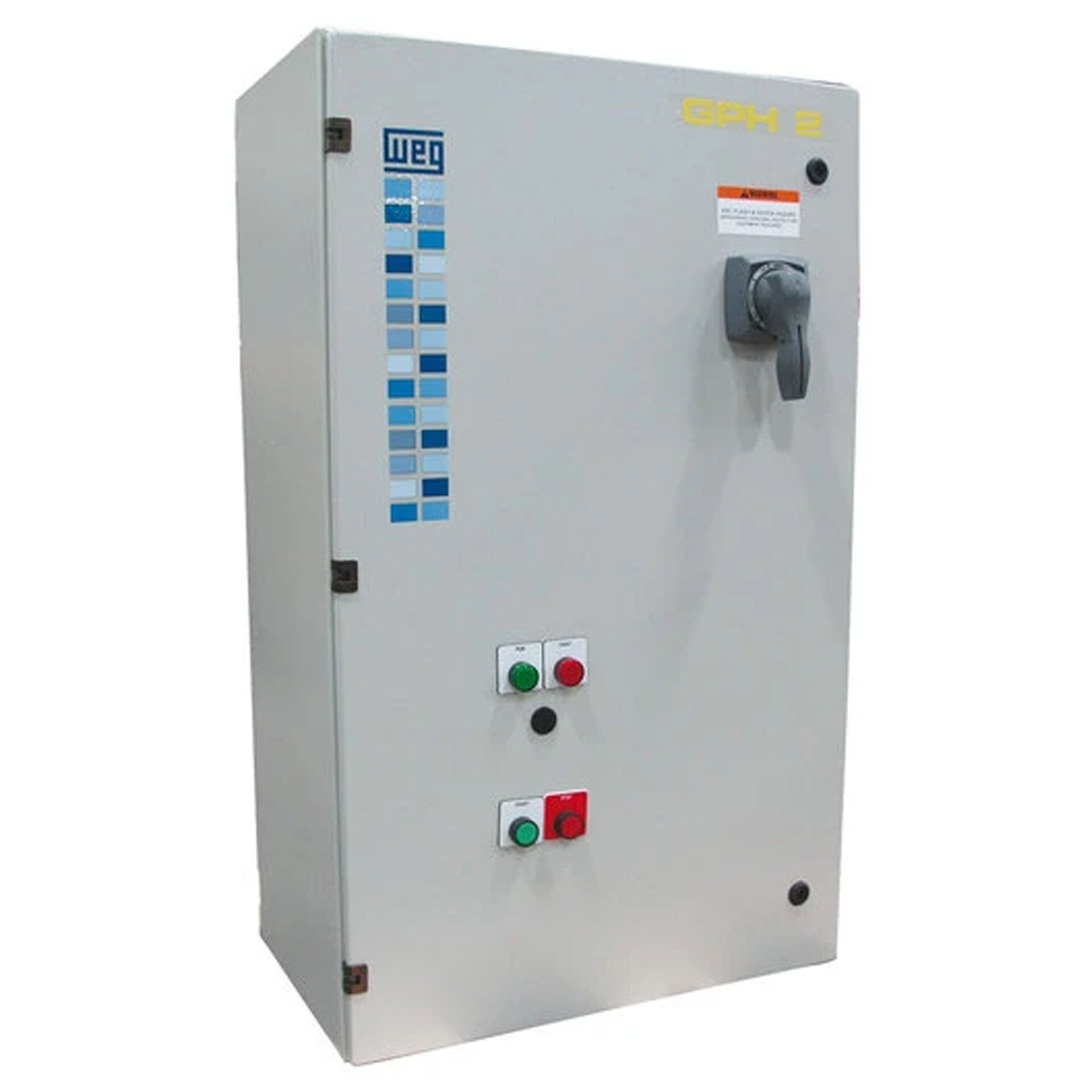

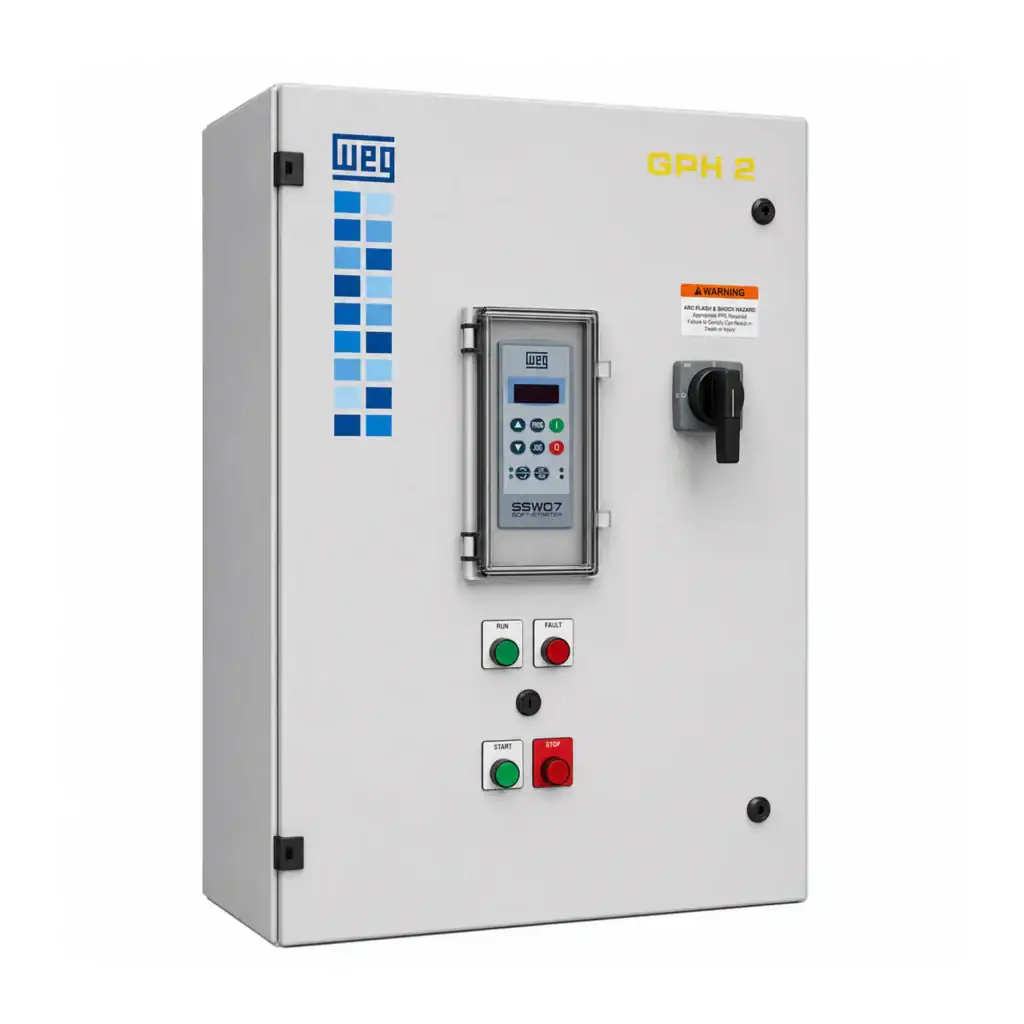

The Combination Soft Starter is a NEMA 4/12 Enclosed industrial general purpose AC motor soft starter package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections.
The Combination Soft Starter is built to complement the ruggedness and reliability of WEG motors, providing a complete, simple, and cost effective AC motor starting and protection solution.
| Product Features | ||
| Panel type | SOFT-STARTER | |
|---|---|---|
| Horsepower (HP) | 350 HP | |
| Main voltage | 460 V | |
| Bypass type | None | |
| Control options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad | |
| Enclosure rating | Type 4 | |
$11,185.07
| Technical Data | ||
| Series | GPH2 | |
|---|---|---|
| Panel type | SOFT-STARTER | |
| Horsepower (HP) | 350 HP | |
| Enclosure type | Free Standing | |
| Thermal Managment | None | |
| General enclosure options | Floor-Stand Kit | |
| Main voltage | 460 V | |
| Control Voltage | 120 V | |
| Frequency | 60 Hz | |
| SCCR rating | 5 kAIC | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Bypass type | None | |
| Control power transformer | 200 VA – Open | |
| Reactor/Filter | None | |
| Communication | None | |
| Control options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light and Keypad | |
| Enclosure rating | Type 4 | |

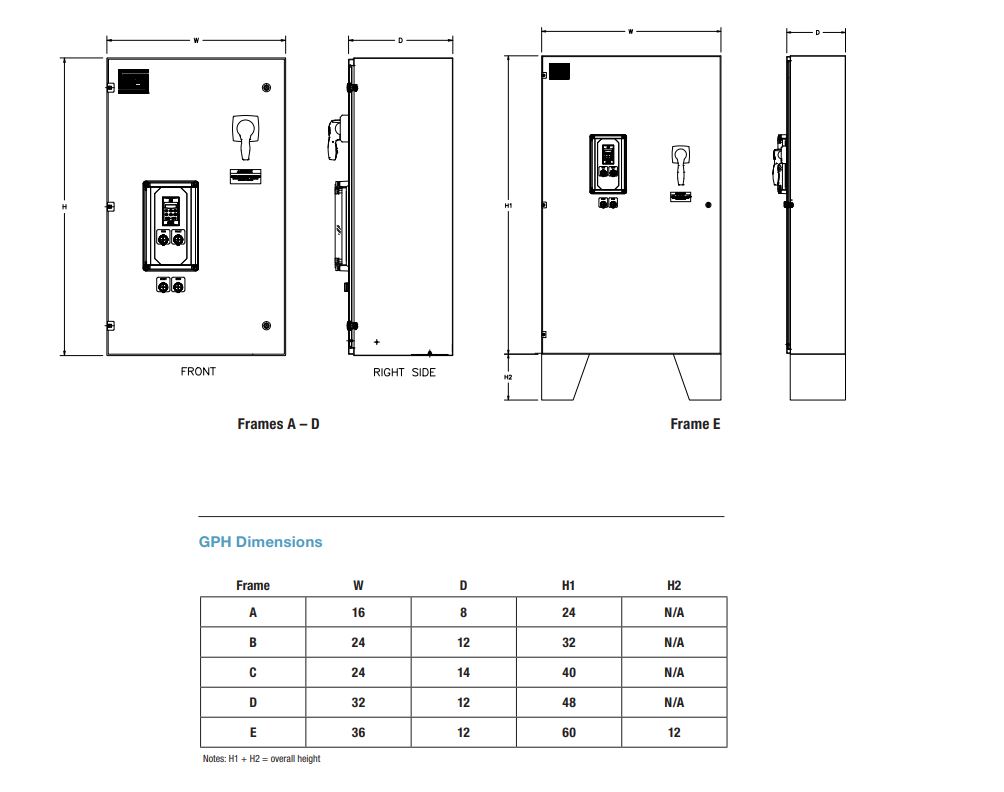

| Nominal height | 1524.0 mm / 60.0 in | |
| Nominal width | 914.4 mm / 36.0 in | |
| Nominal depth | 406.4 mm / 16.0 in | |
| Certification | UL/cUL | |
