STANDARD PANEL , 125 HP, 460 V – Model GPH2125QC4000

STANDARD PANEL , 125 HP, 460 V - Model GPH2125QC4000
STANDARD PANEL , 125 HP, 460 V - Model GPH2125QC4000 - Image 2
SKU: 5172698 Categories: , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 5172698 Categories: , , , Brand:

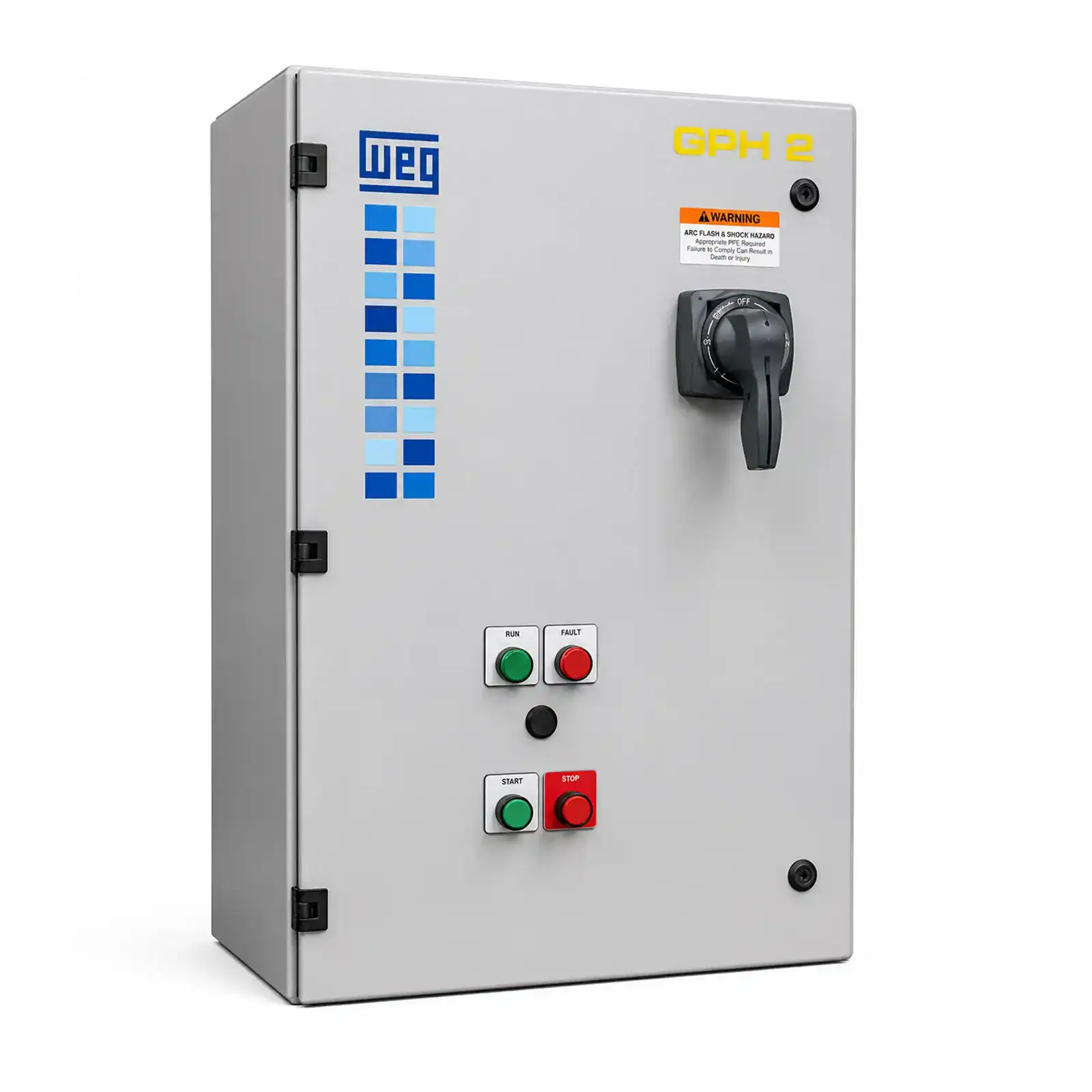

STANDARD PANEL , 125 HP, 460 V – Model GPH2125QC4000

Print Product Page

The Combination Soft Starter is a NEMA 4/12 Enclosed industrial general purpose AC motor soft starter package. It is designed for simple and quick installation and start-up, requiring only input power and output motor connections.

The Combination Soft Starter is built to complement the ruggedness and reliability of WEG motors, providing a complete, simple, and cost effective AC motor starting and protection solution.

Product features

  Product Features
Panel type SOFT-STARTER
Horsepower (HP) 125 HP
Main voltage 460 V
Bypass type None
Control options Start Pushbutton, Stop Pushbutton, Run Light and Fault Light
Enclosure rating Type 4
SKU 5172698 Categories , , , Brand:

UNIT PRICE

$5,594.40

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Applications

  • Centrifugal Pumps
  • Screw Compressors
  • Wood Chipper
  • Veneer Lathe
  • Saw
  • Conveyor
Technical Data
Series GPH2
Panel type SOFT-STARTER
Horsepower (HP) 125 HP
Enclosure type Wall mount
Thermal Managment None
General enclosure options None
Main voltage 460 V
Control Voltage 120 V
Frequency 60 Hz
SCCR rating 5 kAIC
Disconnect switch type Circuit Breaker rotary handle disconnect
Bypass type None
Control power transformer 100 VA – Open
Reactor/Filter None
Communication None
Control options Start Pushbutton, Stop Pushbutton, Run Light and Fault Light
Enclosure rating Type 4
Nominal height 1000.0 mm / 39.4 in
Nominal width 600.0 mm / 23.6 in
Nominal depth 350.0 mm / 13.8 in
Certification UL/cUL
