Description

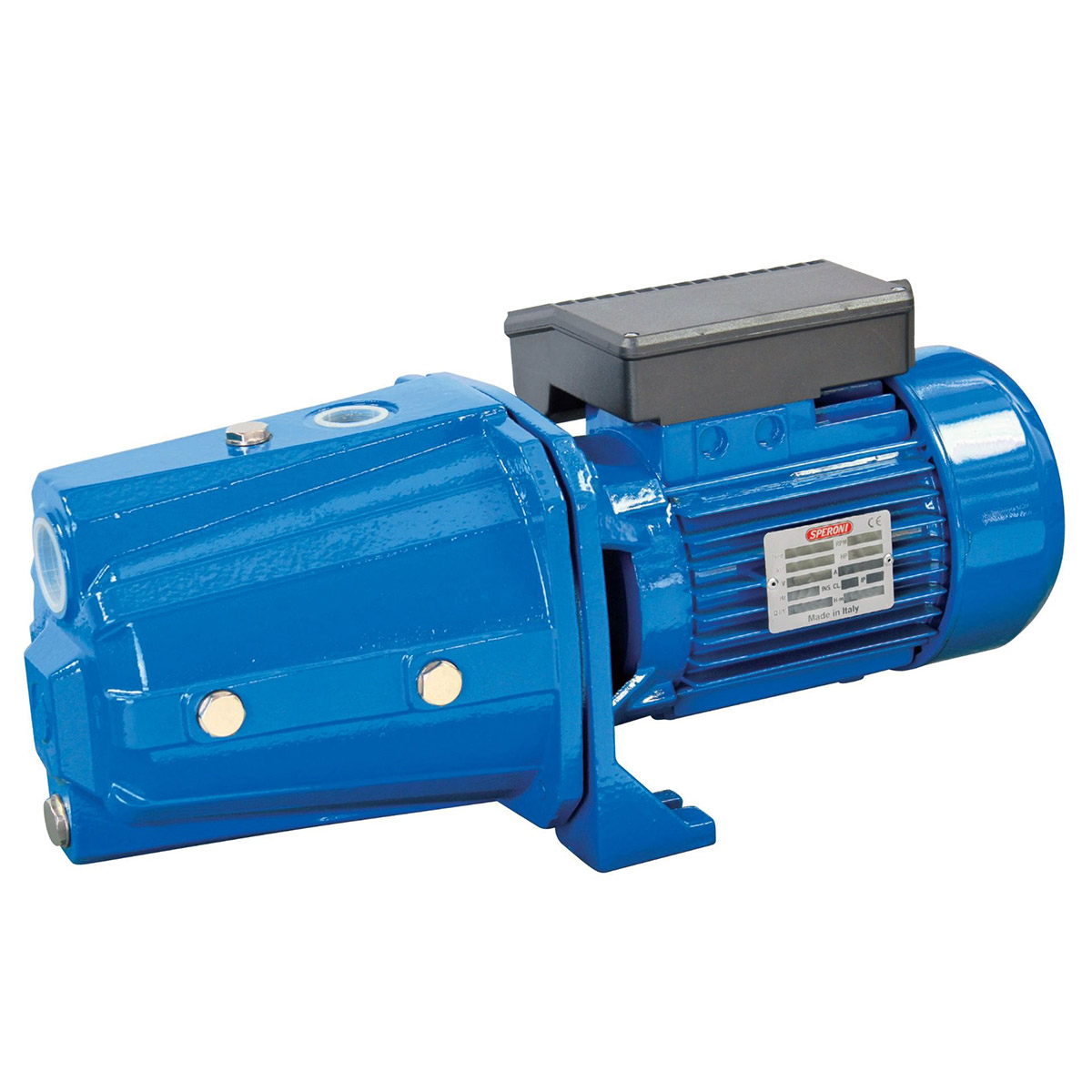

SPERONI Shallow Well Jet Pump – CAM202
Self-priming shallow well jet pump with high hydraulic performance and strong pressure capacity —
suitable for water lifting and domestic distribution in small and medium tank systems.
Brand: SPERONI • Made in Italy
Quick Specs
- Max Total Head: 154 ft
- Max Flow: 2376 GPH
- Max Suction Lift: 22 ft
- Motor: 2 HP • 220V • 1 Phase
- Ports: 1-1/4" suction / 1" discharge
Always confirm exact performance with the curve at your operating point.

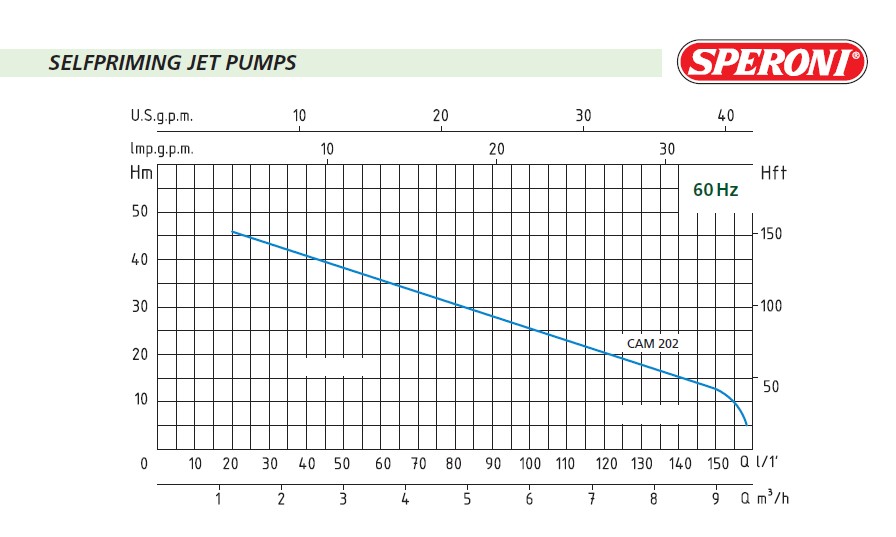

Performance Curve (60Hz)
Click the curve to open full size.
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 22 ft
Motor
- Single-phase 220V – 60Hz
- Insulation Class F
- Protection IP44
- AMP: 9
Materials
- Pump body: Cast Iron
- Motor support: Cast Iron
- Impeller: Stainless Steel 304
- Diffuser: Noryl
- Shaft with rotor: Stainless Steel 304
- Mechanical seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CAM202 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 Year Limited Warranty |
| Impeller Material | Stainless Steel 304 |
| Port Size (in.) | 1" and 1-1/4" |
| Flow (GPH) | 2376 |
| HP | 2 |
| kW | 1.5 |
| Volts | 220V • 1 Phase |
| AMP | 9 |
| Max Total Head (ft.) | 154 |
| Max Suction Lift (ft.) | 22 |
| Max PSI | 68 |
| Suction Port (in.) | 1-1/4" |
| Discharge Port (in.) | 1" |
| Self-Priming | Yes |
| Dimensions (L × W × H) | 22.4 × 9.3 × 10.8 in |
| Product Weight (lbs.) | 60.8 |
If you upload the dimension drawing/table image for CAM202, send it and I’ll add the same scrollable dimensions block (in inches) at the end.
Dimensions (inches) – Scroll
| Model | A | B | C | D | E | F | H | H1 | DNA | DNM | P | L | H (Overall) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAM202 | 11.10 | 6.73 | 22.44 | 9.29 | 7.80 | 0.47 | 10.79 | 7.80 | 1-1/4" | 1" | 9.21 | 21.65 | 11.22 | 60.85 |
Dimensions converted from manufacturer metric table (mm/kg) and rounded for web display.
Technical Drawing
Click drawing to enlarge.
Notes
Self-priming jet pumps are sensitive to suction setup. Keep suction line airtight, use the correct pipe size, and install a quality foot valve + strainer if pulling from a shallow source.
