Description

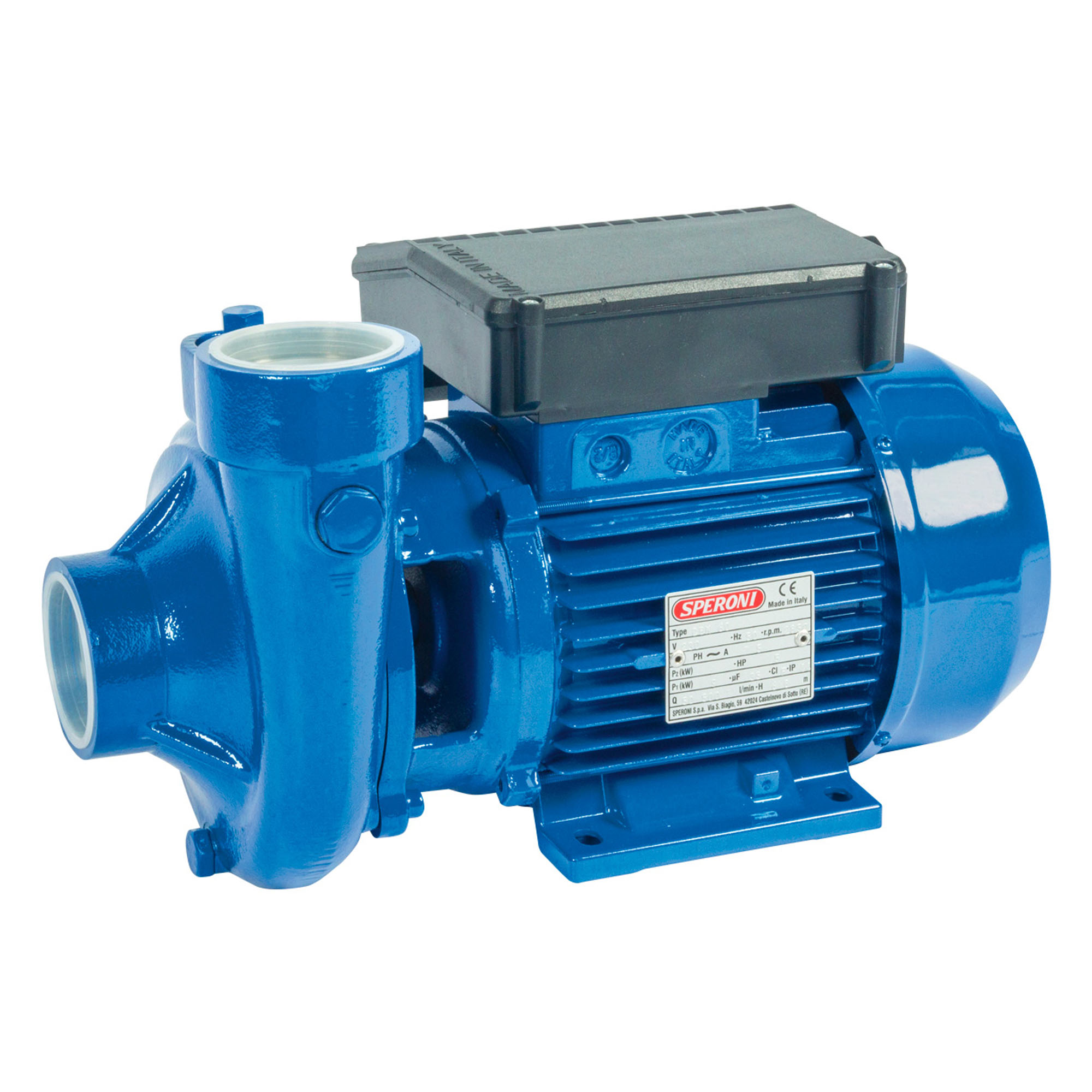

SPERONI Shallow Well Jet Pump – CBM 65
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates. Suitable to pump clean water or non-aggressive liquids charged with small solid impurities. To be used in flow irrigation systems in gardening and agriculture and in industrial fittings.
Brand: SPERONI • Made in Italy
Quick Specs
- Max Head: 55 ft
- Max Flow: 7800 GPH
- Max Suction Lift: 26.2 ft
- Motor: 2 HP • 220V • 1 Phase
- Ports: 2" suction / 2" discharge
Always confirm exact performance using the curve for your voltage selection and installation conditions.

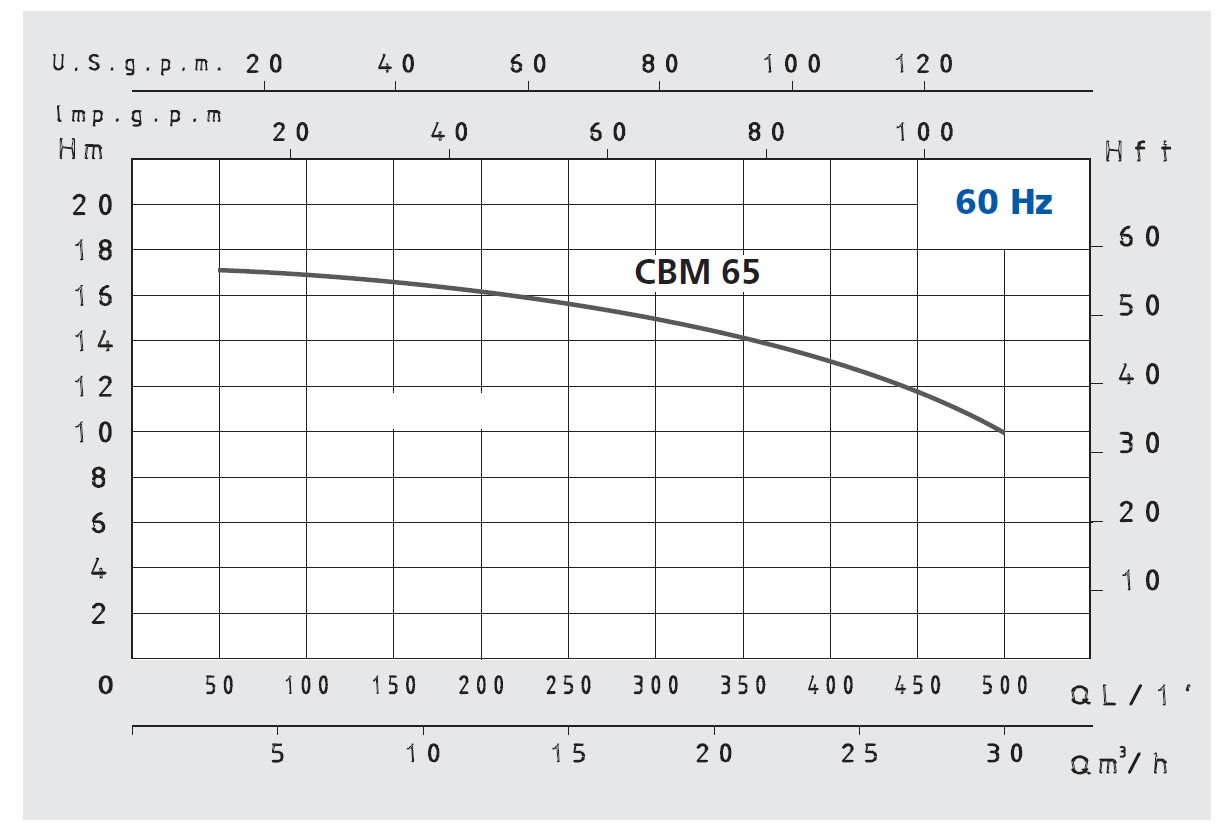

Performance Curve (60Hz)
Click the curve to open full size.
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft
Motor
- Single-phase 220V – 60Hz
- Insulation Class F
- Protection IP55
- AMP: 9.3
Materials
- Pump Body: Cast Iron
- Motor Support: Cast Urin
- Impeller: Cast Iron
- Shaft with rotor: Stainless Steel 304
- Mechanical Seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CBM 65 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 Year Limited Warranty |
| Impeller Material | Cast Iron |
| Port Size (in.) | 2 x 2" |
| Max Flow (GPH) | 7800 |
| HP | 2 |
| Volts | 220V • 1 Phase |
| AMP | 9.3 |
| Max Total Head (ft.) | ~55 |
| Max Suction Lift (ft.) | ~25.0 |
| Max PSI | 64 |
| Suction Port (in.) | 2" |
| Discharge Port (in.) | 2" |
| Self-Priming | No |
Note: Overall L×W×H on your Woo table may differ from the manufacturer dimensional chart because the chart includes multiple reference points (A…H1, P/L/H). Use the dimensions table below for precise installation clearance.
Dimensions (inches) – CBM65 (Scroll)
| Model | A | B | C | D | E | F | G | H | H1 | DNA | DNM | P | L | H (Overall) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CBM65 | 6.69" | 2.63" | 13.7" | 6.10" | 4.9" | 0.35" | 3.07" | 8.6" | 3.62" | 2" | 2" | 8.6" | 14.3" | 10.3" | 48.5 lb |
Dimensions converted from manufacturer metric data and rounded to 2 decimals for web display.

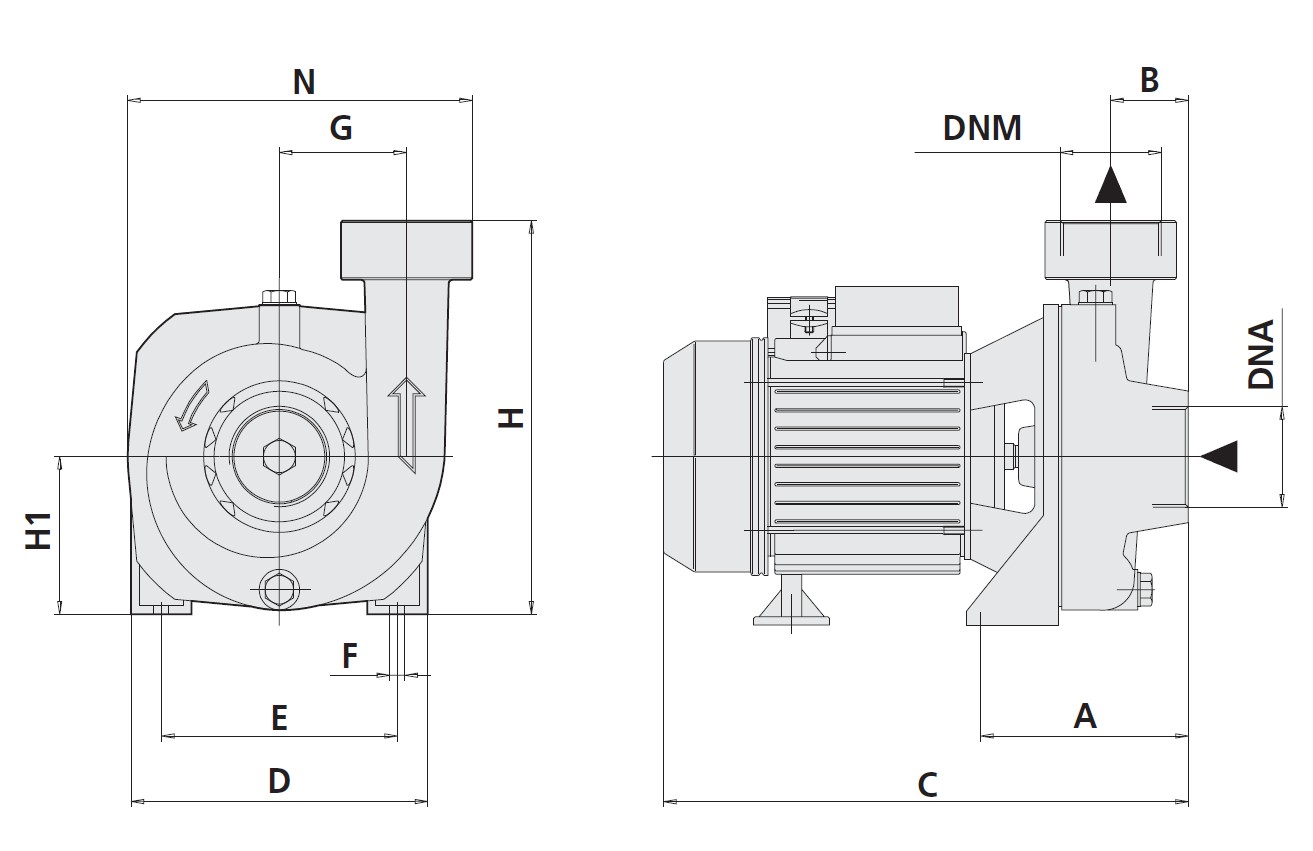

Technical Drawing
Click drawing to enlarge.
Compliance
Operating limits referenced from manufacturer documentation (including EN 60335-2-41 for home use). Use proper suction accessories (foot valve/check valve and strainer) to maintain prime and protect the pump.
