Description

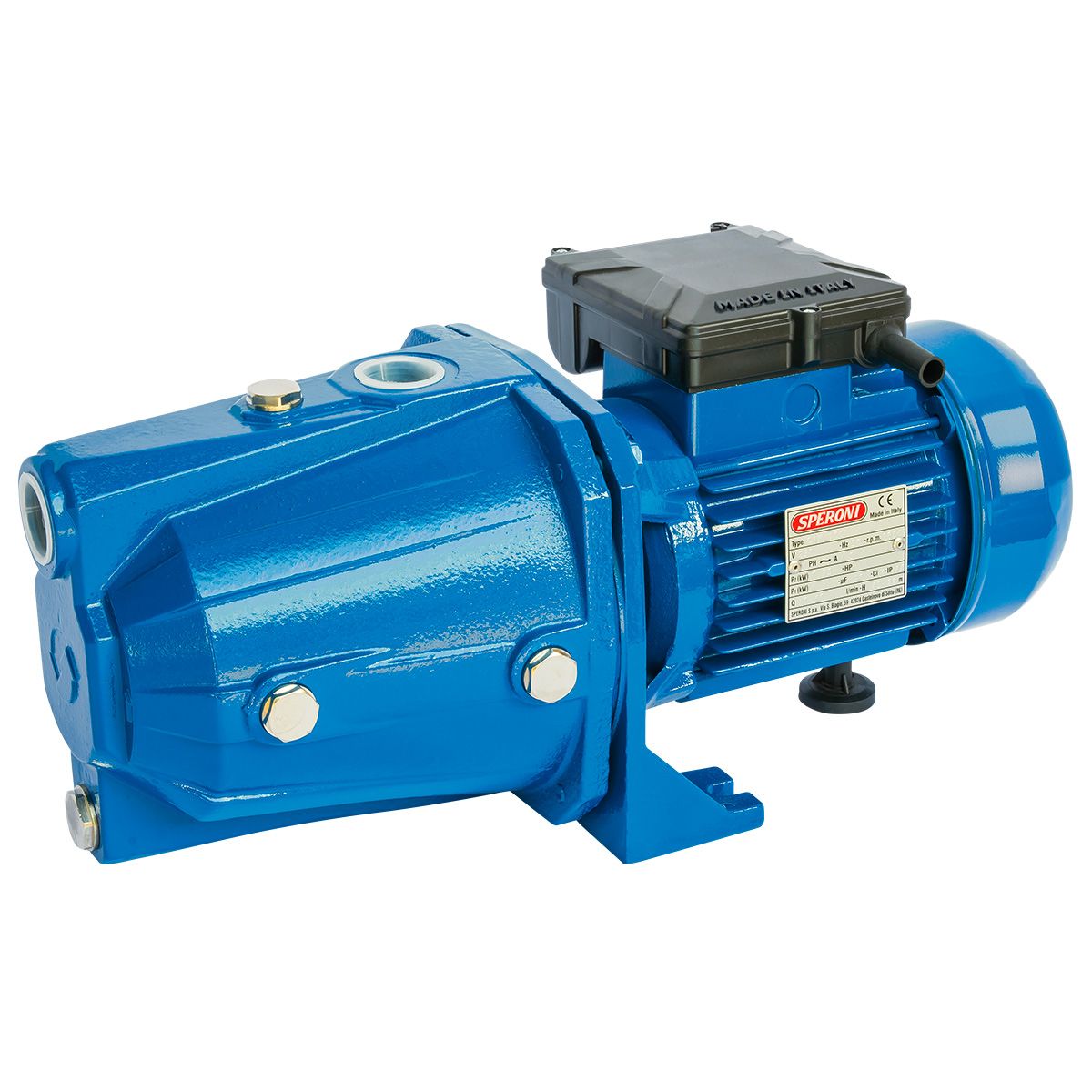

SPERONI Shallow Well Jet Pump – CAM100
Self-priming shallow well jet pump with very high hydraulic performance and strong pressure capacity.
Suitable for water lifting and distribution in domestic systems and small/medium tank applications.
Brand: SPERONI • Made in Italy
Quick Specs
- Max Head: 151 ft
- Max Flow: 950 GPH
- Max Suction Lift: 26.2 ft
- Motor: 1 HP • 110/220V • 1 Phase • 60Hz
- Ports: 1" suction / 1" discharge
Performance Curve (60Hz)
Click the curve to open full size. Curve values are approximate and may vary depending on installation, suction conditions, and system losses.
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft
Motor
- Single-phase 110/220V – 60Hz
- Insulation Class F
- Protection IP44
- AMP: 12.5 / 5.0
Materials
- Pump Body: Cast Iron
- Motor Support: Aluminium
- Impeller: Stainless Steel 304
- Pump Flange: Stainless Steel 304
- Mechanical Seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CAM100 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 Year Limited Warranty |
| Port Size (in.) | 1" |
| Flow (GPH) | 950 |
| HP | 1 |
| Volts | 110/220V • 1 Phase |
| AMP | 12.5 / 5.0 |
| Max Total Head (ft.) | 151 |
| Max Suction Lift (ft.) | 26.2 |
| Max PSI | 67 |
| Suction Port (in.) | 1" |
| Discharge Port (in.) | 1" |
| Self-Priming | Yes |
| Dimensions (L × W × H) | 16.6 × 7 × 7.7 in |
| Product Weight (lbs.) | 32 |
If your factory sheet lists slightly different values by region/version, follow the nameplate and official curve.
Compliance
Designed according to EN 60335-2-41 safety standards. Maintain proper suction line sizing and foot valve/check valve selection to keep prime.
