Description

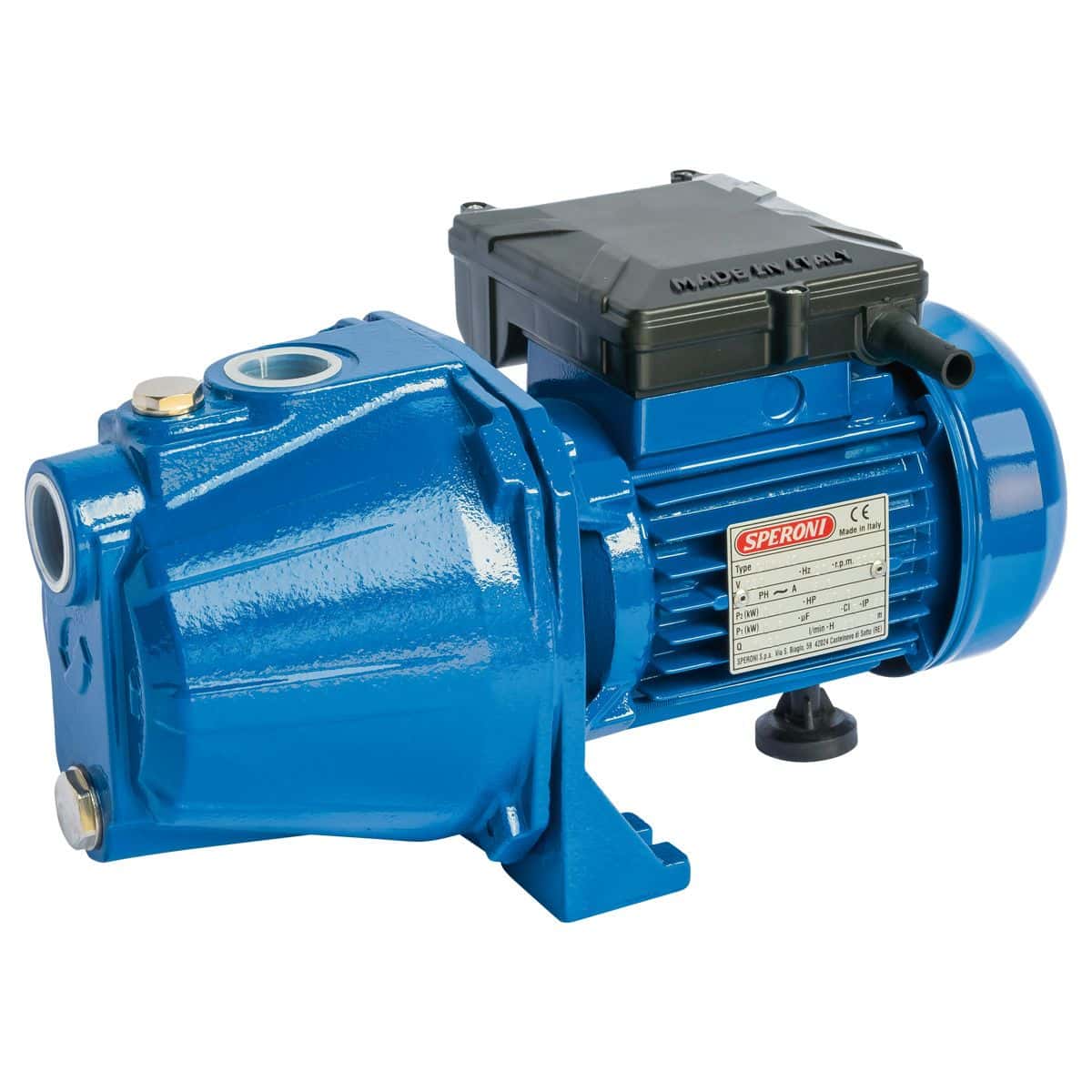

SPERONI Shallow Well Jet Pump – CAM60
Self-priming shallow well jet pump with high hydraulic performance and strong pressure capacity.
Suitable for water lifting and domestic distribution systems.
Brand: SPERONI • Made in Italy
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft
Motor
- Single-phase 110/220V – 60Hz
- Insulation Class F
- Protection IP44
Materials
- Pump Body: Cast Iron
- Motor Support: Aluminium
- Impeller: Noryl
- Pump Flange: Stainless Steel 304
- Mechanical Seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CAM60 |
| HP | 0.8 |
| Flow | 792 GPH |
| Max Head | 137.7 ft |
| Max Suction Lift | 26.2 ft |
| Max PSI | 61 |
| Volts | 110/220V – 1 Phase |
| Port Size | 1" |
| Weight | 22.2 lbs |

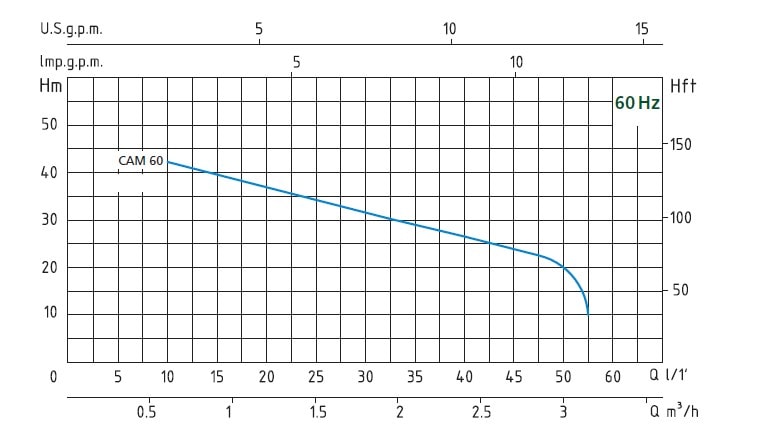

Performance Curve (60Hz)
Click to view full size. Curve values are approximate and may vary depending on installation and suction conditions.
Compliance
Designed according to EN 60335-2-41 safety standards. Always install with proper suction accessories to maintain prime.
