Description

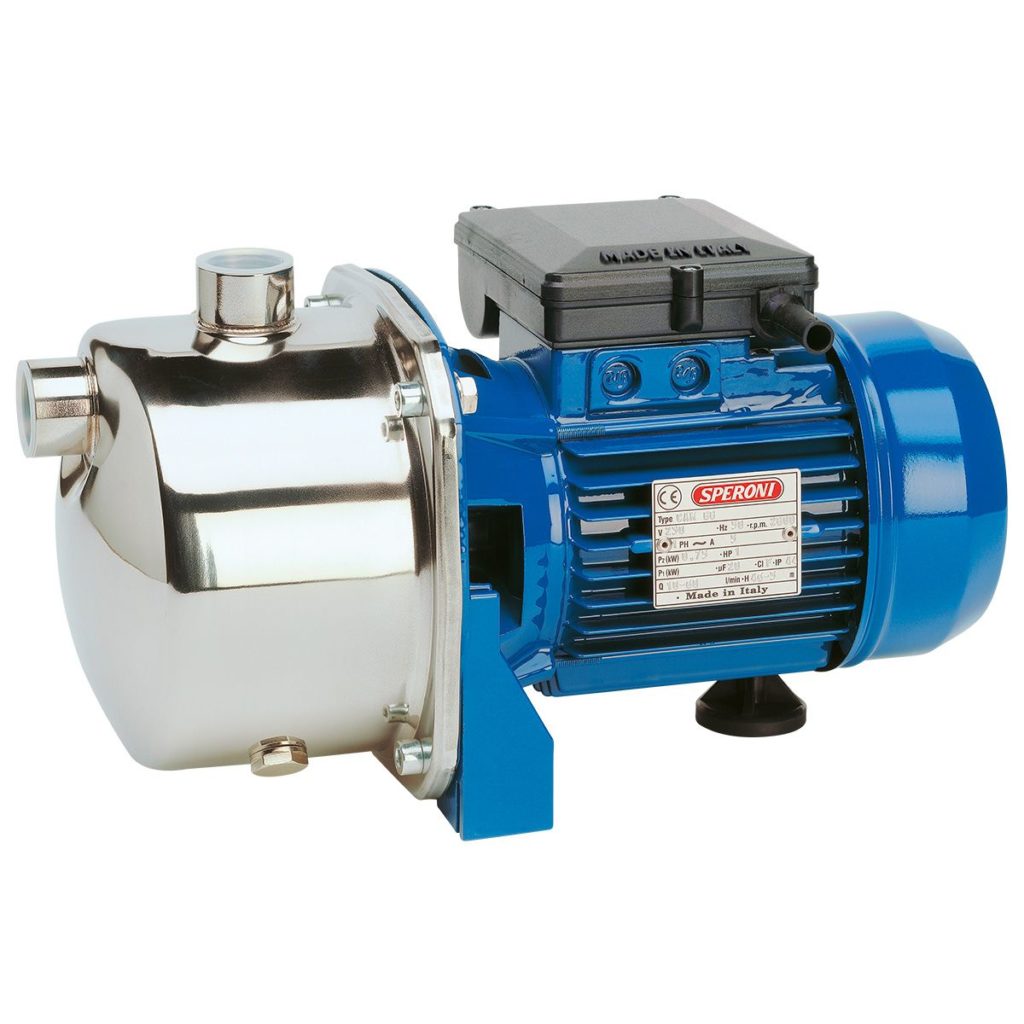

SPERONI Shallow Well Jet Pump – CAM85
Self-priming shallow well jet pump with high hydraulic performance and strong pressure capacity —
ideal for potable water and domestic distribution in small and medium tank systems.
Brand: SPERONI • Made in Italy
Quick Specs
- Max Head: 138 ft
- Max Flow: 792 GPH
- Max Suction Lift: 26.2 ft
- Motor: 0.9 HP (0.7 kW) • 110/220V • 1 Phase • 60Hz
- Ports: 1" suction / 1" discharge
Numbers shown are from your spec sheet. Always verify against the nameplate and curve for your exact voltage variant.

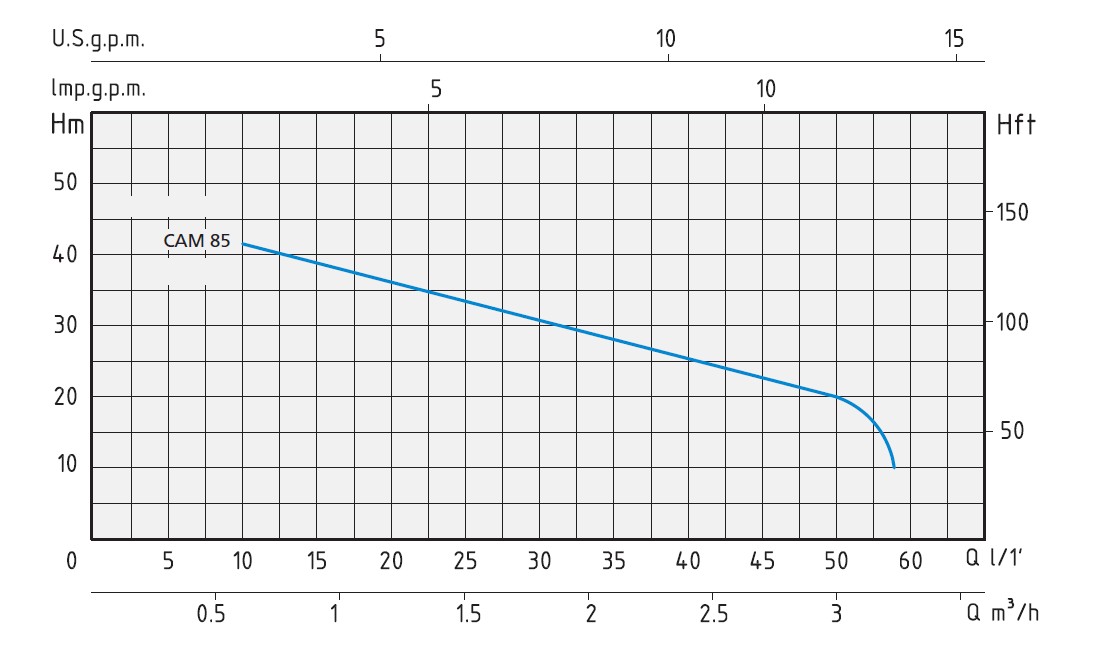

Performance Curve (60Hz)
Click the curve to open full size. Curve values are approximate and depend on suction conditions and system losses.
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft
Motor
- Single-phase 110/220V – 60Hz
- Insulation Class F
- Protection IP44
- AMP: 11.0 / 4.0
Materials
- Pump Body: Stainless Steel 304
- Motor Support: Aluminium
- Impeller: Noryl
- Diffuser: Noryl
- Pump Flange: Stainless Steel 304
- Shaft with rotor: Stainless Steel 304
- Mechanical Seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CAM85 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 Year Limited Warranty |
| Impeller Material | Noryl |
| Port Size (in.) | 1" |
| Flow (GPH) | 792 |
| HP | 0.9 |
| kW | 0.7 |
| Volts | 110/220V • 1 Phase |
| AMP | 11.0 / 4.0 |
| Max Total Head (ft.) | 138 |
| Max Suction Lift (ft.) | 26.2 |
| Max PSI | 61 |
| Suction Port (in.) | 1" |
| Discharge Port (in.) | 1" |
| Self-Priming | Yes |
| Dimensions (L × W × H) | 13.5 × 7 × 8 in |
| Product Weight (lbs.) | 17 |
Dimensions (mm) – Scroll
| Model | A | B | C | D | E | F | G | H | H1 | DNA | DNM | P | L | H (Overall) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAM85 | 163 | 81 | 343 | 176 | 140 | 9 | 184 | 200 | 149 | 1" | 1" | 200 | 414 | 228 | 7.7 |
Horizontal scroll enabled on mobile. Dimensions are approximate and subject to manufacturer tolerances.

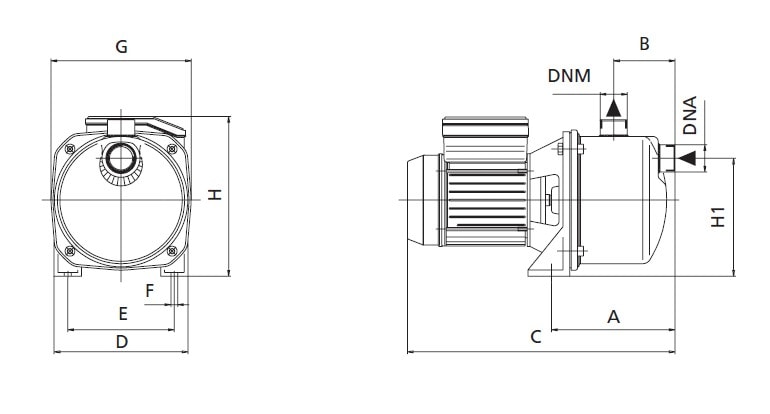

Technical Drawing
Click drawing to enlarge.
Compliance
Operating limits referenced from manufacturer documentation (including EN 60335-2-41 for home use). Use proper suction accessories and a foot valve/check valve to maintain prime.
