Description
SPERONI Shallow Well Jet Pump – CAM80
Self-priming shallow well jet pump with high hydraulic performance and strong pressure capacity —
suitable for potable water, water lifting, and domestic distribution in small and medium tank systems.
Brand: SPERONI • Made in Italy
Quick Specs
- Max Head: 125 ft
- Max Flow: 792 GPH
- Max Suction Lift: 26.2 ft
- Motor: 0.8 HP • 60Hz • Single-Phase
- Voltage: 110V or 220V (model/configuration dependent)
- Ports: 1" suction / 1" discharge
Confirm exact performance and electrical data from the nameplate for your selected voltage.

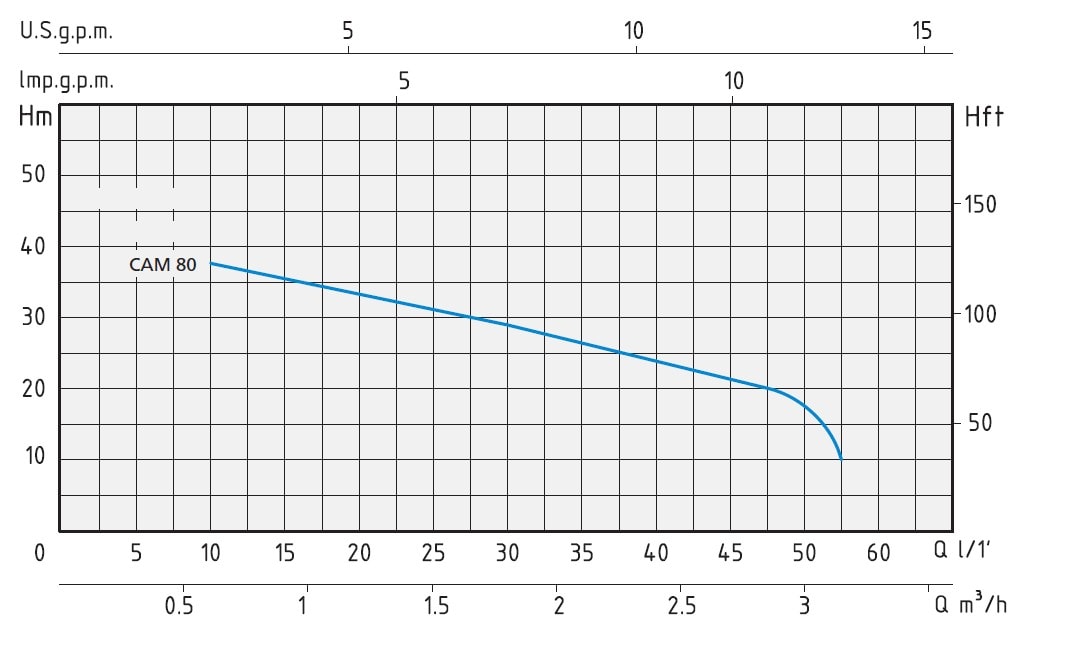

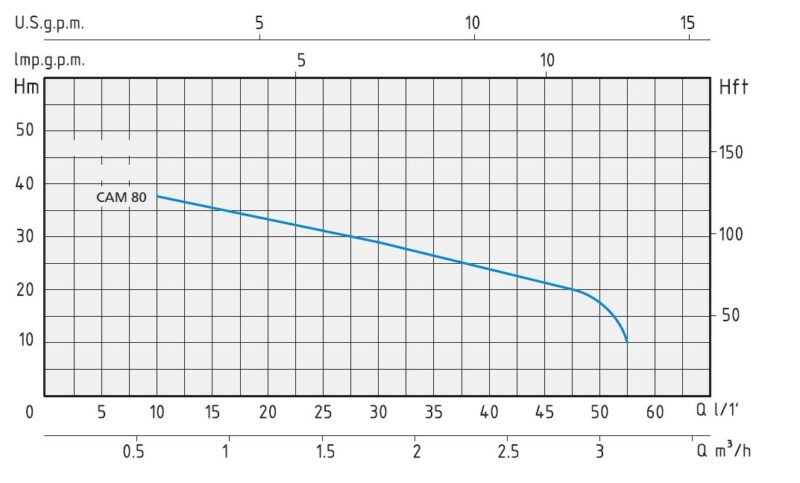

Performance Curve (60Hz)
Click the curve to open full size.
Operating Conditions
- Liquid temperature up to 95°F (home use according to EN 60335-2-41)
- Ambient temperature up to 104°F
- Total suction lift up to 26.2 ft
Motor
- Single-phase 110V or 220V – 60Hz
- Insulation Class F
- Protection IP44
- AMP: 8.8 / 3.8 (varies by voltage)
Materials
- Pump Body: Stainless Steel 304
- Motor Support: Aluminium
- Impeller: Noryl
- Diffuser: Noryl
- Pump Flange: Stainless Steel 304
- Shaft with rotor: Stainless Steel 304
- Mechanical Seal: Ceramic / Graphite / NBR
More Details
| Specification | Value |
|---|---|
| Model | CAM80 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 Year Limited Warranty |
| Impeller Material | Noryl |
| Port Size (in.) | 1" |
| Flow (GPH) | 792 |
| HP | 0.8 |
| Volts | 110V or 220V • 1 Phase |
| AMP | 8.8 / 3.8 |
| Max Total Head (ft.) | 125 |
| Max Suction Lift (ft.) | 26.2 |
| Max PSI | 55 |
| Suction Port (in.) | 1" |
| Discharge Port (in.) | 1" |
| Self-Priming | Yes |
| Overall Dimensions (L × H) | 13.78" × 7.87" (see technical dimensions below) |
| Product Weight (lbs.) | 14.8 |
Technical Dimensions (inches)
| Model | A | B | C | D | E | F | G | H | H1 | DNA | DNM | P | L | H (Overall) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAM80 | 6.42" | 2.83" | 12.60" | 6.38" | 4.96" | 0.35" | 6.54" | 7.09" | 4.84" | 1" | 1" | 6.93" | 13.78" | 7.87" | 14.8 lb |
Converted from manufacturer metric data (mm/kg) to inches/lb. Values rounded for web presentation.
Technical Drawing
Click drawing to enlarge.
Compliance
Operating limits referenced from manufacturer documentation (including EN 60335-2-41 for home use). Use proper suction accessories (foot valve/check valve and strainer) to maintain prime and protect the pump.
