Single Impeller Centrifugal Water Pump 8400 GPH – 3HP – CMX330/2.2 – SS304 – 1P

Print Product Page
SPERONI, Single Impeller Centrifugal Water Pump
Single Impeller Centrifugal Water Pump 8400 GPH - 3HP - CMX330/2.2 - SS304 - 1P - Image 2
SKU: 1811209 Categories: , , , , , , Tags: , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 1811209 Categories: , , , , , , Tags: , , , Brand:

Single Impeller Centrifugal Water Pump 8400 GPH – 3HP – CMX330/2.2 – SS304 – 1P

Print Product Page

Application

Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.

Operating Conditions

  •  Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
  • Temperature max. liquid: 90°C (for other uses)
  •  Ambient temperature up to 40°C
  •  Total suction lift up to 23 ft.

Motor

  • Two-Pole induction motor (n = 3450 min-1)
  • Insulation Class F
  • Protection IP 55

Materials

  • Pump body Stainless Steel AISI 304
  • Motor Support Aluminum
  • Impeller Stainless Steel AISI 304
  • Shaft with rotor Stainless Steel AISI 304
  • Mechanical seal Silicon/Graphite/EPDM



MADE IN ITALY



SKU 1811209 Categories , , , , , , Tags , , , Brand:

UNIT PRICE

$960.99

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

See Why Thousands of Customers Trust Pump Supermarket

Take a quick look inside our Miami warehouse and daciscover the people, products, and expertise behind every order we ship.

✔ 4,000+ Products in Stock ✔ Fast Nationwide Shipping ✔ Expert Technical Support ✔ Trusted by Thousands of Customers

Description

More Details

Model CMX330/2.2
Brand SPERONI
Manufacturer’s Warranty 1 year
Ship Weight 54 lbs
Port Size (in.) 1-1/4″ – 2″
Flow (GPH) 8400
HP 3
Voltage 230V – Single Phase
Amps 14
Max. Total Head (ft.) 78
Max. Suction Lift (ft.) 20
Max. PSI 34
Suction Port (in.) 2″
Discharge Port (in.) 1-1/4″
Self-Priming No
Dimensions L x W x H (in.) 19 x 9 x 11
Product Weight (lbs.) 51 lbs

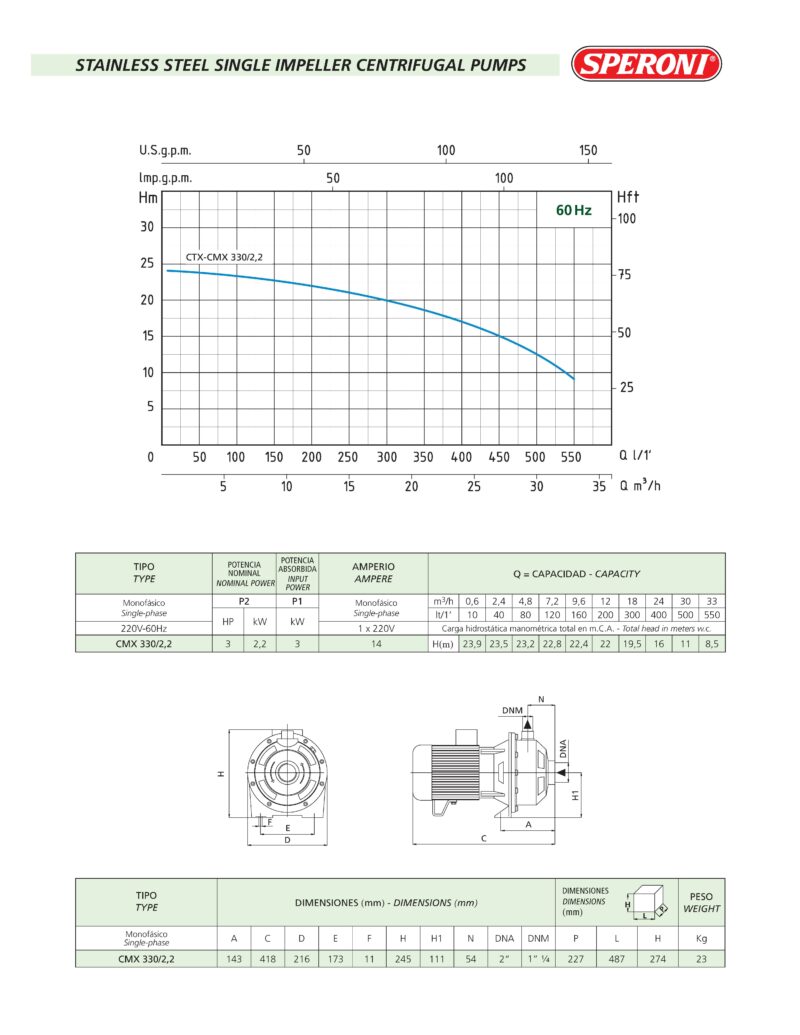

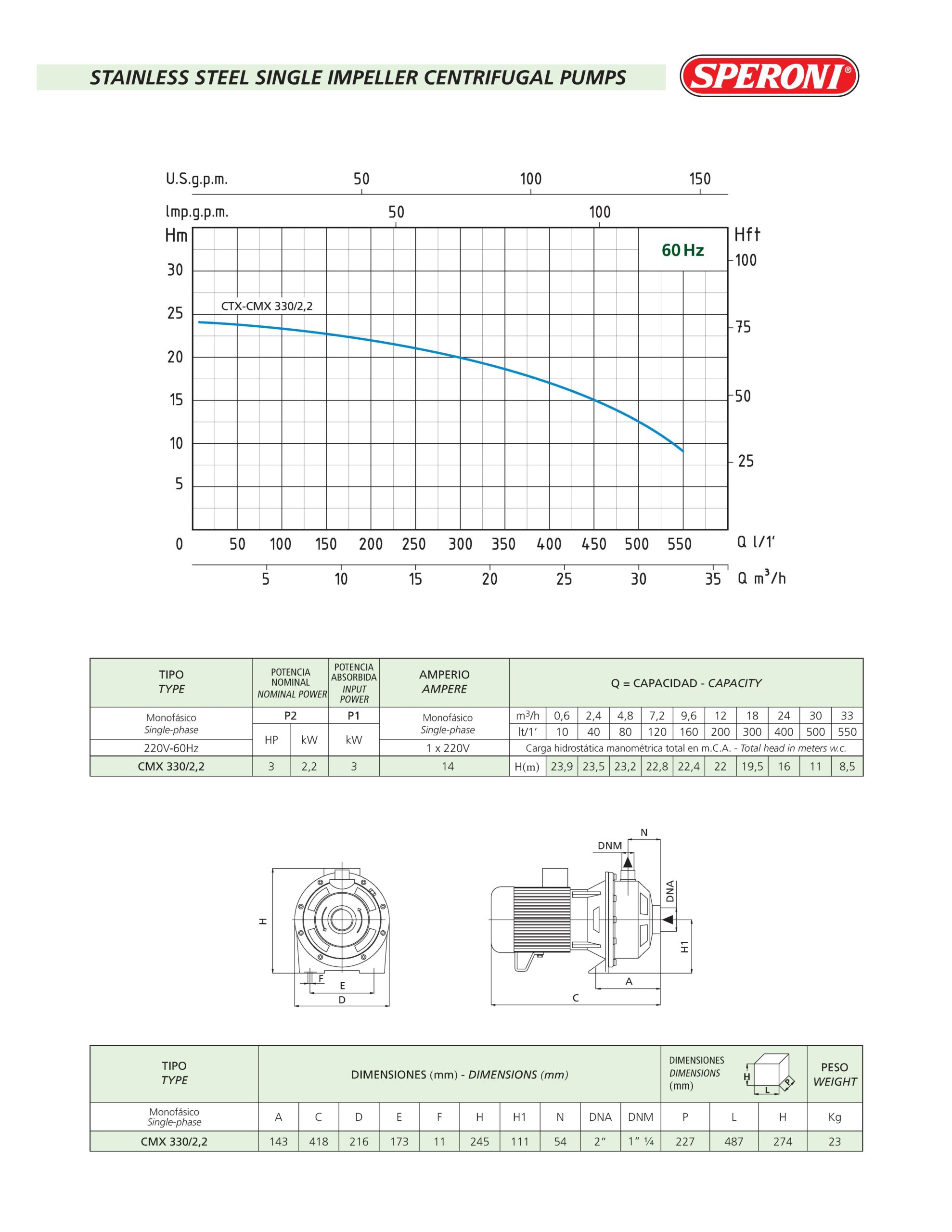

Model Power Voltage Amp Flow (gph)
HP P1 (kW) P2 (kW) 158.5 634.0 1268.0 1902.0 2536.1 3170.1 4755.1 6340.1 7925.2 8717.7
CMX 330/2.2 3 3 2.2 1 × 220V 14 78.4 ft 77.1 ft 76.1 ft 74.8 ft 73.5 ft 72.2 ft 64.0 ft 52.5 ft 36.1 ft 27.9 ft
