Description
APPLICATION

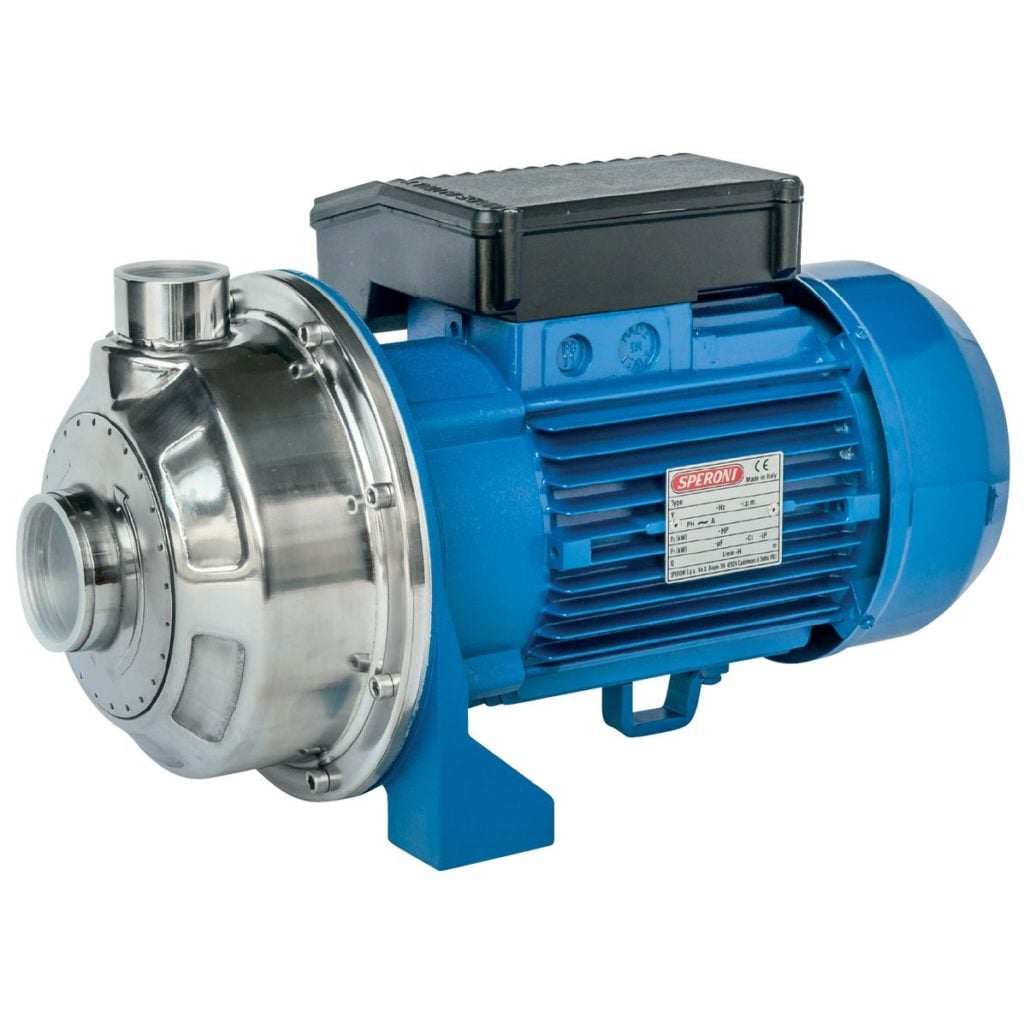

Single impeller centrifugal pumps suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.
OPERATING CONDITIONS
– Liquid temperature up to 35°C (for home use according to EN 60335-2-41),
Temperature max. liquid: 90°C (for other uses)
– Ambient temperature up to 40°C
– Total suction lift up to 23 ft.
MOTOR
– Two-Pole induction motor (n = 3450 min-1)
– Insulation Class F
– Protection IP 55
MATERIALS
– Pump body Stainless Steel AISI 304
– Motor Support Aluminium
– Impeller Stainless Steel AISI 304
– Shaft with rotor Stainless Steel AISI 304
– Mechanical seal Silicon/Graphite/EPDM
MADE IN ITALY
Estimated Delivery Time: 3 – 5 Business Days
More Details:
| Model | CTX 250/2.2 |
| Brand | SPERONI |
| Manufacturer’s Warranty | 1 year |
| Ship Weight | 54 lbs |
| Port Size (in.) | 1-1/2″ – 1-1/4″ |
| Flow (GPH) | 7860 |
| HP | 3 |
| Voltage | 220V – Three Phase |
| Amps | 5.6 |
| Max. Total Head (ft.) | 98 |
| Max. Suction Lift (ft.) | 20 |
| Max. PSI | 44.5 |
| Suction Port (in.) | 1-1/2″ |
| Discharge Port (in.) | 1-1/4″ |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 17 x 8.5 x 10 |
| Product Weight (lbs.) | 51 lbs |
