Description

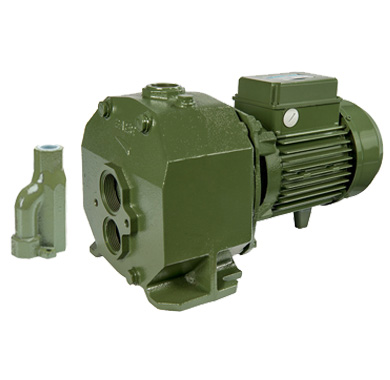

The SAER Self Priming Cast Iron Deep suction Well Jet pump M153, 1.5 HP, 230 Volt – 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER. General water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, farm also industrial applications. Water transfer and garden watering applications. (With External Ejector For Deep Wells 4″)
- Pump body in cast iron
- Diffuser in thermoplastic resin
- Mechanical seal in carbon/ceramic
- Maximum temperature of pumped liquid 5°F to 122°F
- Maximum working pressure 95 psi
- Maximum ambient temperature 104°F; for higher temperatures
- Ejector: P20
Technical Data
| Model | M-153 (P20) |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Brass |
| Port Size (in.) | 1 and 1.25 |
| Flow (GPH) | 758 |
| HP | 1.5 |
| Volts | 230V – Single Phase |
| AMP | 9.5 |
| Max. Total Head (ft.) | 217 |
| Max. Suction Lift (ft.) | 49 |
| Max. PSI | 95 |
| Suction Port (in.) | 1 |
| Discharge Port (in.) | 1.25 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 17 x 8.7 x 9.5 |
| Product Weight (lbs.) | – |
