Description

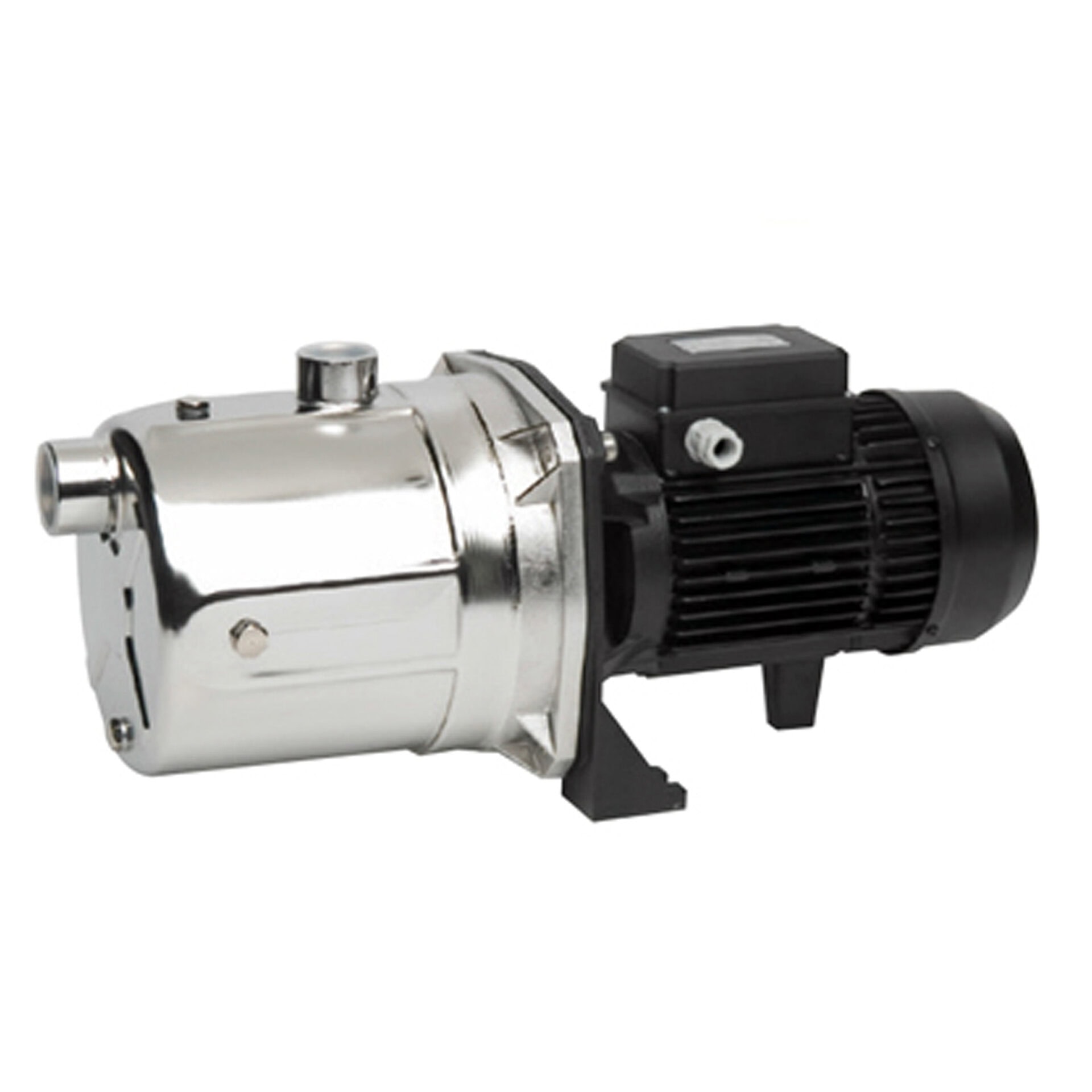

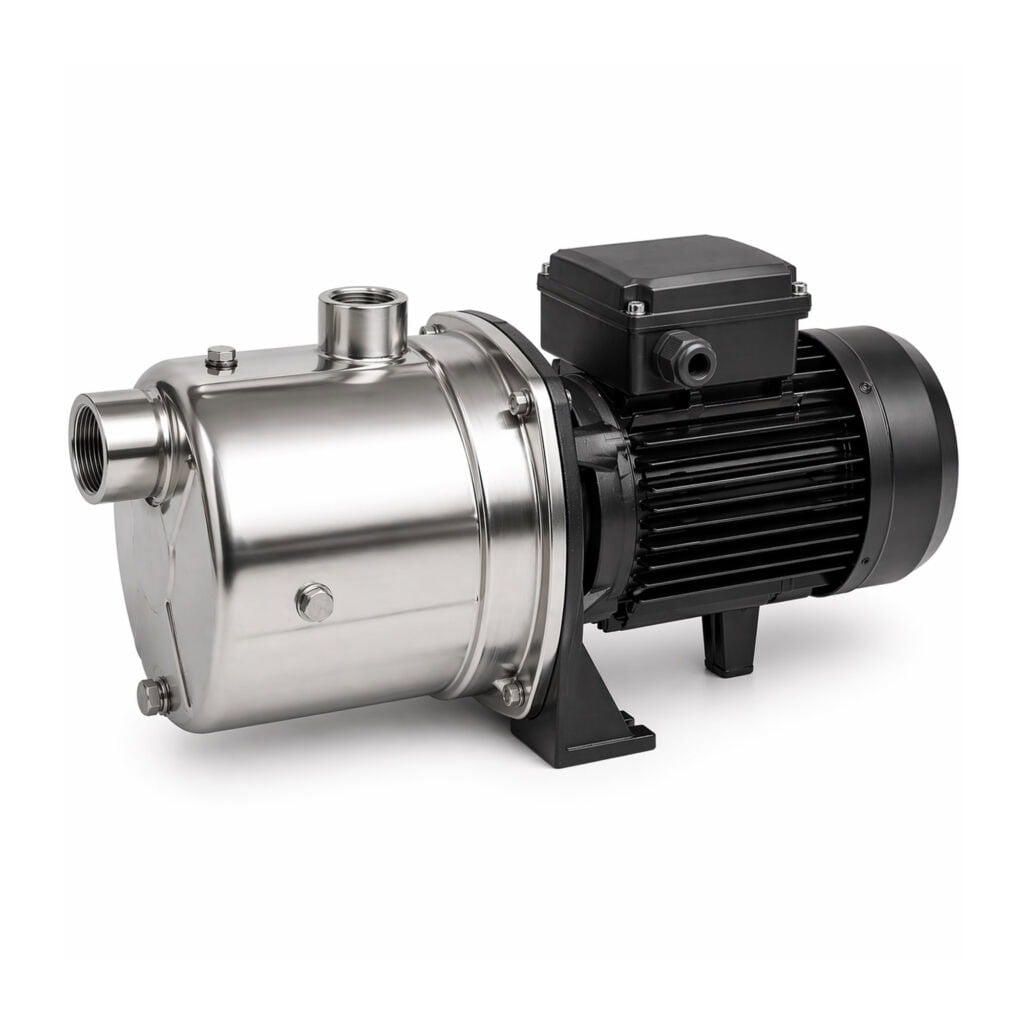

The SAER Self Priming Stainless Steel well Jet Pump M600B, 2 HP, 230 Volt – 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER. General water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, farm also industrial applications. Water transfer and garden watering applications.
- Pump body in Stainless Steel
- Diffuser in thermoplastic resin
- Mechanical seal in carbon/ceramic
- Maximum temperature of pumped liquid 5°F to 122°F
- Maximum working pressure 87 psi
- Maximum ambient temperature 104°F; for higher temperatures
Technical Data
| Model | M-600B |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1 year Manufacture Warranty |
| Pump Material Impeller Material |
Stainless Steel 316 Brass |
| Port Size (in.) | 1.25 & 1.5 |
| Flow (GPH) | 1848 |
| HP | 2 |
| Volts | 230V- Single Phase |
| Max. Total Head (ft.) | 197 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 87 |
| Suction Port (in.) | 1.5 |
| Discharge Port (in.) | 1.25 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 23.5 x 9 x 9.7 |
| Product Weight (lbs.) | 48 |
