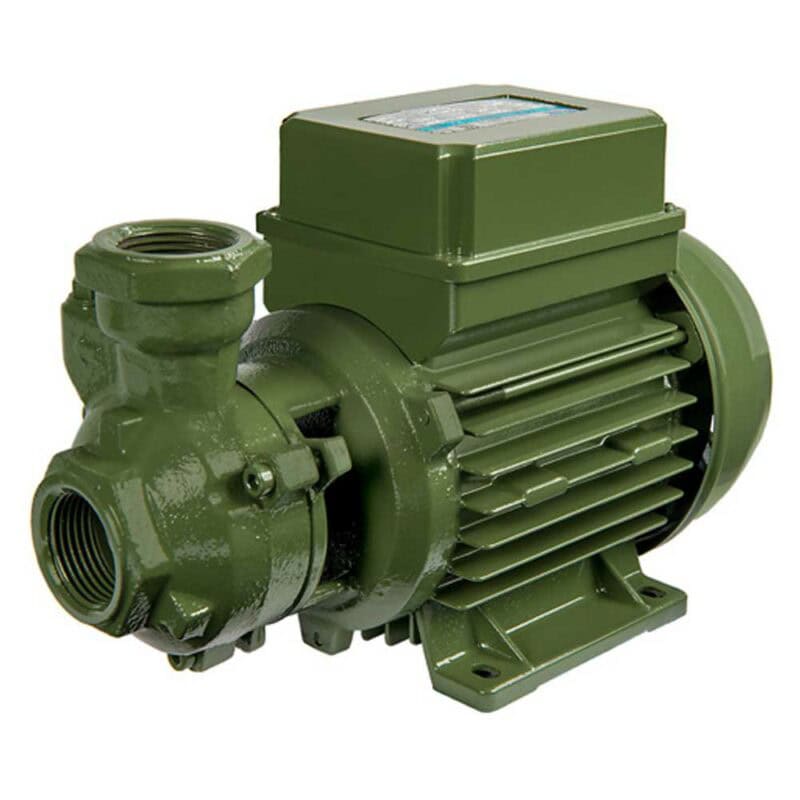

SAER-USA Booster Water Pump — 954 GPH, 0.75 HP, 1in. Ports, Model# KF3

$149.99

Detail:

This series of electric KF pumps has a peripheral type impeller with brass material. These pumps are made in this way because on the extremities of the impeller there are several radial paddles which give more energy to the pumped liquid. The special shaping of the paddles gives the fluid a fast radial recycling motion between the paddles of the impeller and the pump body. This characteristic enables. General water supply, pressurized water using pressure vessels (autoclaves), horticultural irrigation, mist irrigation, boosting showers, dairy and farm applications, garden watering applications, to empty and fill cisterns for clean liquids only.

  • Mechanical seal in carbon/ceramic
  • Rotor shaft in stainless steel with seal for life bearings
  • Maximum temperature of pumped liquid 5°F to 158°F
  • Maximum ambient temperature 104°F
  • Maximum working pressure 90 psi
  • Working features listed in the catalog are based on continuous service for clear water with a specific weight of 62.5 lbs./3 ft.

Applications:



Material: cast iron

Description


Detail:

This series of electric KF pumps has a peripheral type impeller with brass material. These pumps are made in this way because on the extremities of the impeller there are several radial paddles which give more energy to the pumped liquid. The special shaping of the paddles gives the fluid a fast radial recycling motion between the paddles of the impeller and the pump body. This characteristic enables. General water supply, pressurized water using pressure vessels (autoclaves), horticultural irrigation, mist irrigation, boosting showers, dairy and farm applications, garden watering applications, to empty and fill cisterns for clean liquids only.

  • Mechanical seal in carbon/ceramic
  • Rotor shaft in stainless steel with seal for life bearings
  • Maximum temperature of pumped liquid 5°F to 158°F
  • Maximum ambient temperature 104°F
  • Maximum working pressure 90 psi
  • Working features listed in the catalog are based on continuous service for clear water with a specific weight of 62.5 lbs./3 ft.

made in italy

Applications:

CIVIL AGGRICULTURE%20AND%20ARRIGATION

Materials: cast iron, brass.

Download PSM

Dimensions:

KF 3

Details:

This SAER®-USA KF3 ,  0.75 HP  Water Pump features a peripheral-type impeller to give fluids a fast, radial recycling motion between the paddles of the impeller and the pump body. Great for general water supply, irrigation, farm applications, garden watering and more.

  • Cast iron body and motor support for rugged durability
  • Pressed brass impeller provides corrosion resistance
  • Carbon/ceramic mechanical seal for wear resistance and long life
  • Stainless steel rotor shaft is strong and resists corrosion
  • Totally enclosed fan-cooled motor
  • 5°F–158°F temperature range
  • 130.5 PSI max. working pressure

Brand: SAER-USA

MADE IN ITALY

More Details:

Model KF-3
Brand Saer-USA
Manufacturer’s Warranty 1 year Limited Warranty
Ship Weight 24 lbs
Port Size (in.) 1
Flow (GPH) 954
HP 0.75
Volts

60 Hz AMP

50 Hz AMP

115 –  Single Phase

12

5.5

Max. Total Head (ft.) 203
Max. Suction Lift (ft.) 17
Max. PSI 90
Suction Port (in.) 1
Discharge Port (in.) 1
Self-Priming No
Dimensions L x W x H (in.) 11.3 x 5.3 x 7.1
Product Weight (lbs.) 24

Additional information

Weight 24 lbs
Dimensions 11.3 × 5.3 × 7.1 in
