Description

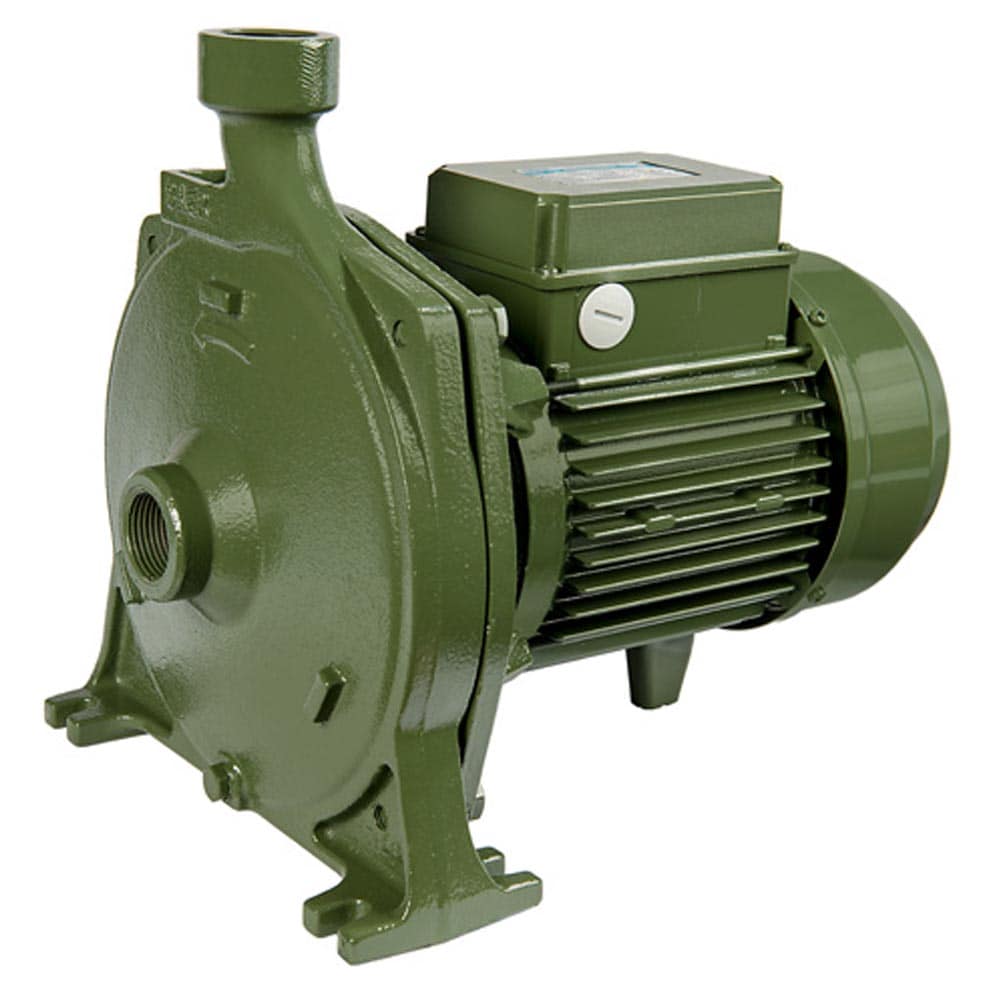

This SAER®-USA Centrifugal Pump is suitable for domestic systems, water supply, small gardening applications and increasing pressure in main water supply systems.
- Fitted with an overhang impeller directly splined key-way on to the motor shaft
- Cast iron body and motor support for rugged durability
- Pressed brass impeller resists corrosion
- Carbon/ceramic mechanical seal or wear resistance and long life
- Totally enclosed fan-cooled motor
- 5°F–158°F temperature range
- 85.5 PSI max. working pressure
Technical Data
| Model | CM1C |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Material | Cast Iron |
| Port Size (in.) | 1 |
| Flow (GPH) | 2400 |
| HP | 3 |
| Volts | 230 / 380 3-Phase |
| Amps | 10 / 5.8 |
| Max. Total Head (ft.) | 194 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 85.5 |
| Suction Port (in.) | 1 |
| Discharge Port (in.) | 1 |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 14.9 x 9.5 x 11.5 |
| Product Weight (lbs.) | 61 |
