Description

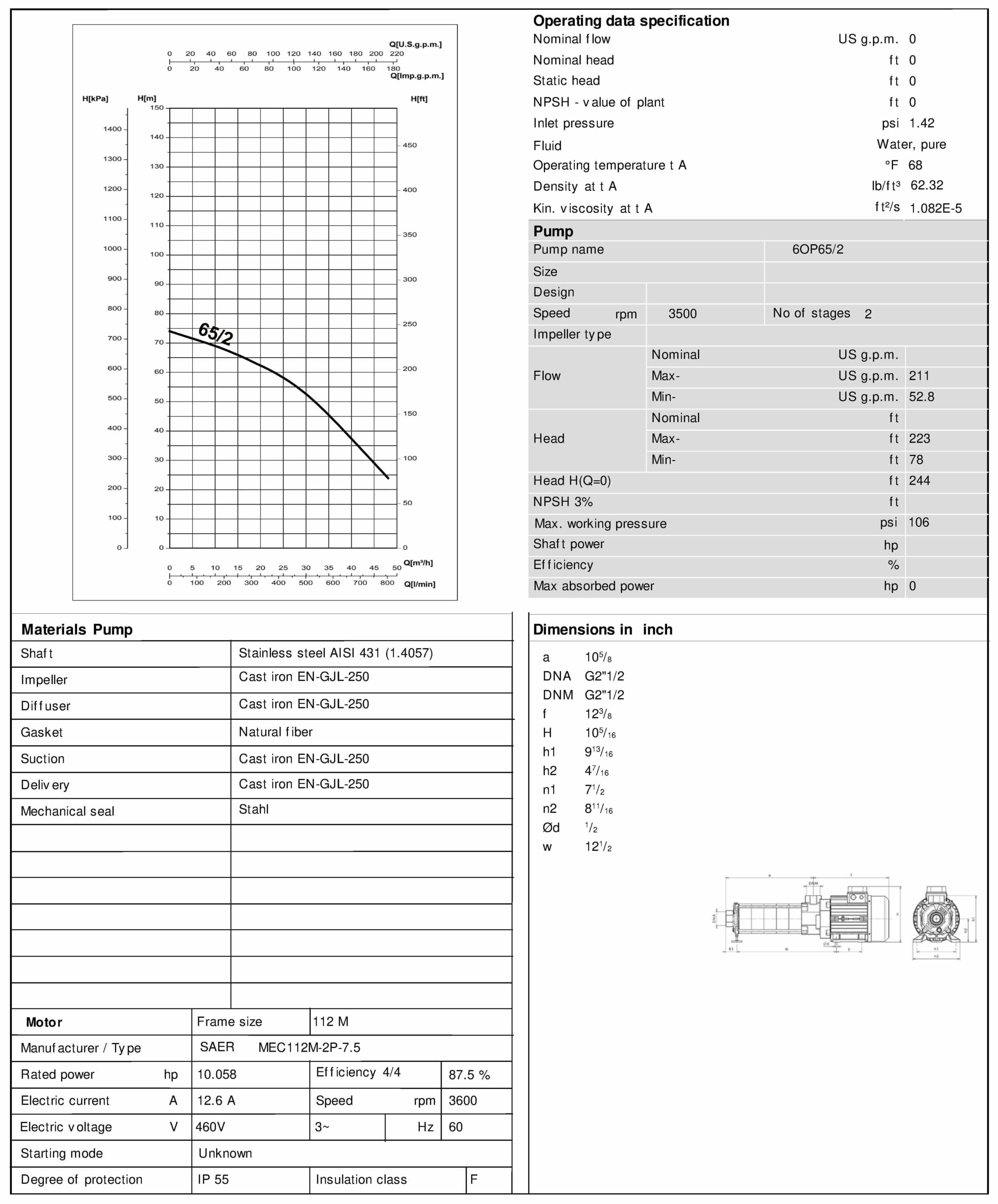

Technical Data

Model	6OP65/2
Brand	Saer-USA
Manufacturer’s Warranty	1 year Limited Warranty
Diffuser body Impeller Material	Stainless Steel AISI304 Stainless Steel AISI304
Port Size (in.)	2-1/2
Flow (GPH)	12720
HP KW	10 7.5
Volts	460V – Three phase
Amps	15
Max. Total Head (ft.)	243
Max. Suction Lift (ft.)	17
Max. PSI	108
Suction Port (in.)	2-1/2
Discharge Port (in.)	2-1/2
Self-Priming	No
Dimensions L x W x H (in.)	25.3 x 10.3 x 8.6
Product Weight (lbs.)

Dimensions	26 × 11 × 9 in
Brands	SAER
category ac pumps	Horizontal Multistage Pumps
AC voltage	440V-480V, 460 volts
Horse power Ac	10 hp
Phase	Three Phase
Pump material	Cast iron
Self Priming	Non Self Priming
Pump Inlet	2 1/2"
Pump Outlet	2 1/2"
