Description

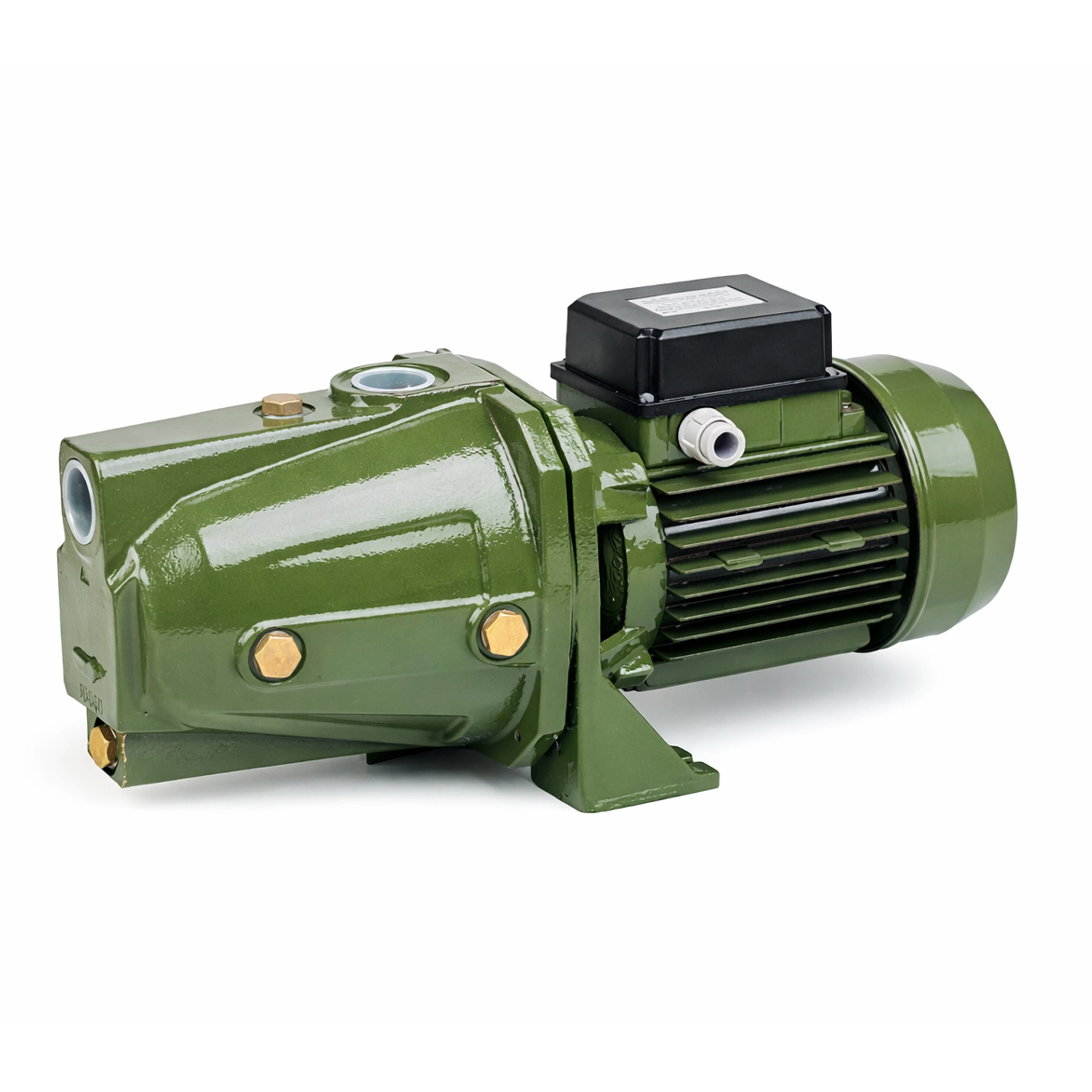

The SAER Self Priming Cast Iron Shallow well Jet pump M80, 1 HP, 115 Volt – 60 HZ, NPT TREAD, BRASS & CAST-IRON IMPELLER. General water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, farm also industrial applications. Water transfer and garden watering applications.
- Pump body in cast iron
- Diffuser in thermoplastic resin
- Mechanical seal in carbon/ceramic
- Maximum temperature of pumped liquid 5°F to 122°F
- Maximum working pressure 80 psi
- Maximum ambient temperature 104°F; for higher temperatures
Technical Data
Model | M-80 |
Brand | Saer-USA |
Manufacturer’s Warranty | 1 year Limited Warranty |
Impeller Material | Brass |
Port Size (in.) | 1 |
Flow (GPH) | 900 |
HP | 1 |
Volts | 115V – 1 PHASE |
Max. Total Head (ft.) | 180 |
Max. Suction Lift (ft.) | 17 |
Max. PSI | 80 |
Suction Port (in.) | 1 |
Discharge Port (in.) | 1 |
Self-Priming | Yes |
Dimensions L x W x H (in.) | 16.6 x 7.1 x 8.2 |
Product Weight (lbs.) | 33 |
