Description

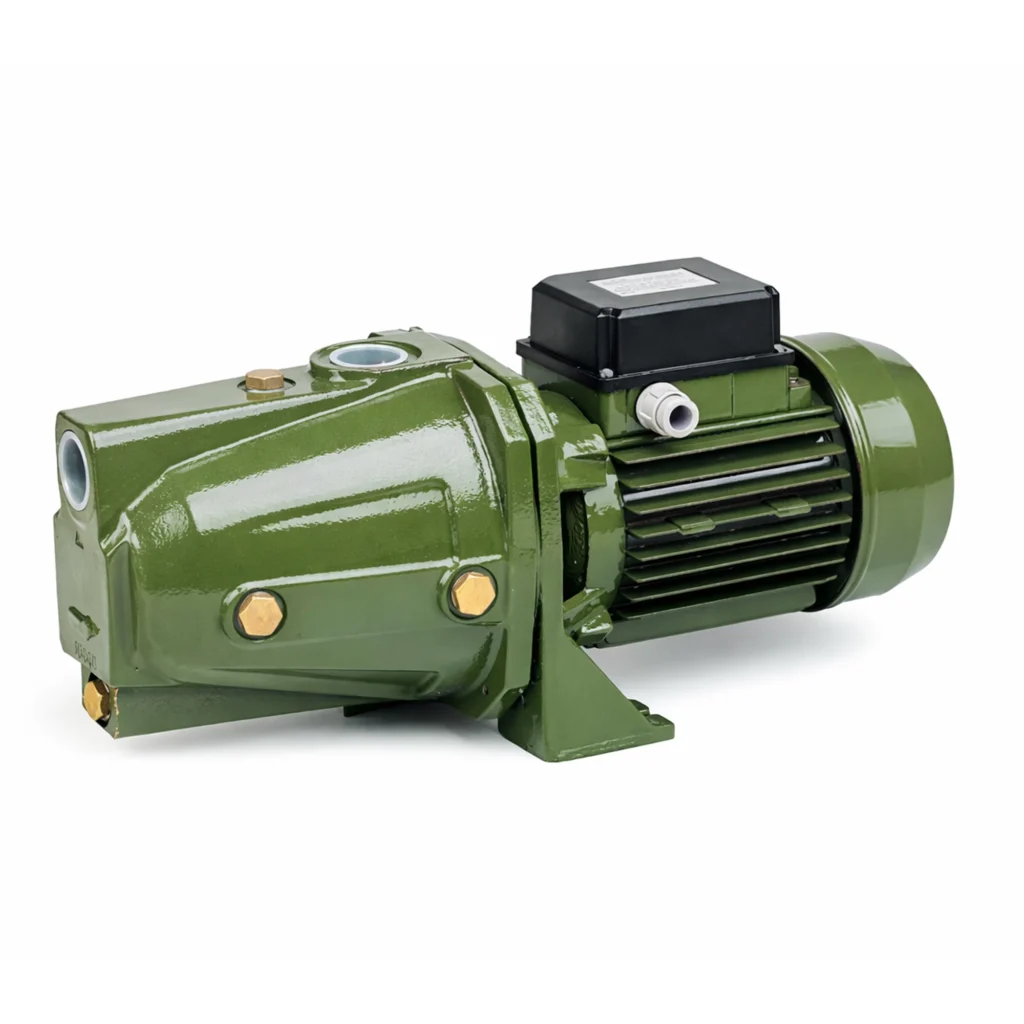

The SAER Self Priming Cast Iron Shallow Jet Pump M60, 1/2 HP, 115 Volt – 60 HZ , NPT TREAD, BRASS & CAST-IRON IMPELLER. General water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, farm also industrial applications. Water transfer and garden watering applications.
- Pump body in cast iron
- Diffuser in thermoplastic resin
- Mechanical seal in carbon/ceramic
- Maximum temperature of pumped liquid 5°F to 122°F
- Maximum working pressure 68 psi
- Maximum ambient temperature 104°F; for higher temperatures

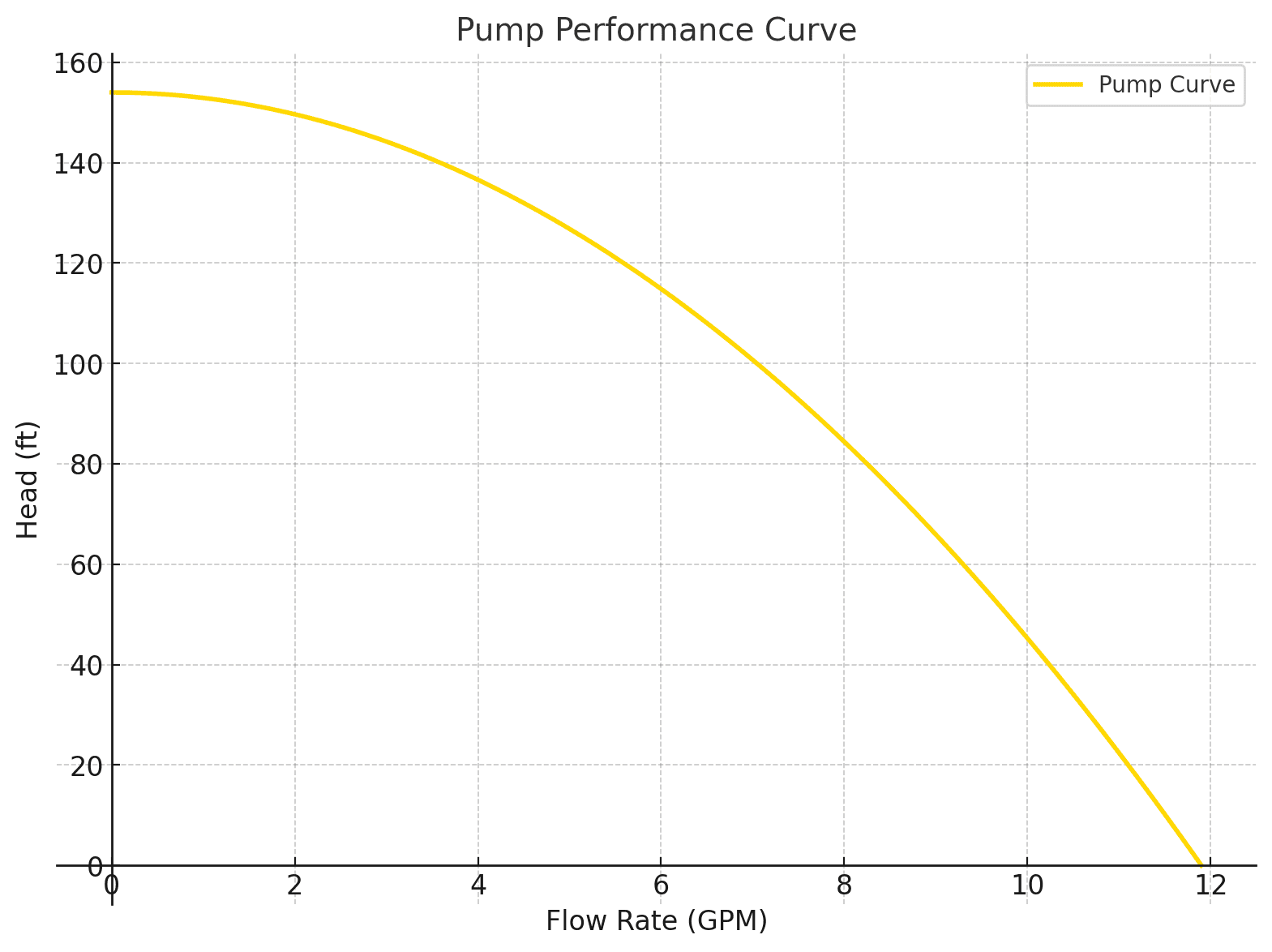

Performance curve
Technical Data
| Model | M-60 |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Brass |
| Port Size (in.) | 1 |
| Flow (GPH) | 715 |
| HP | 0.5 |
| Volts | 115V – 1 Phase |
| AMP | 6.7 |
| Max. Total Head (ft.) | 154 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 68 |
| Suction Port (in.) | 1 |
| Discharge Port (in.) | 1 |
| Self-Priming | Yes |
| Dimensions L x W x H (in.) | 18 x 11 x 11 |
| Product Weight (lbs.) | 33 |
