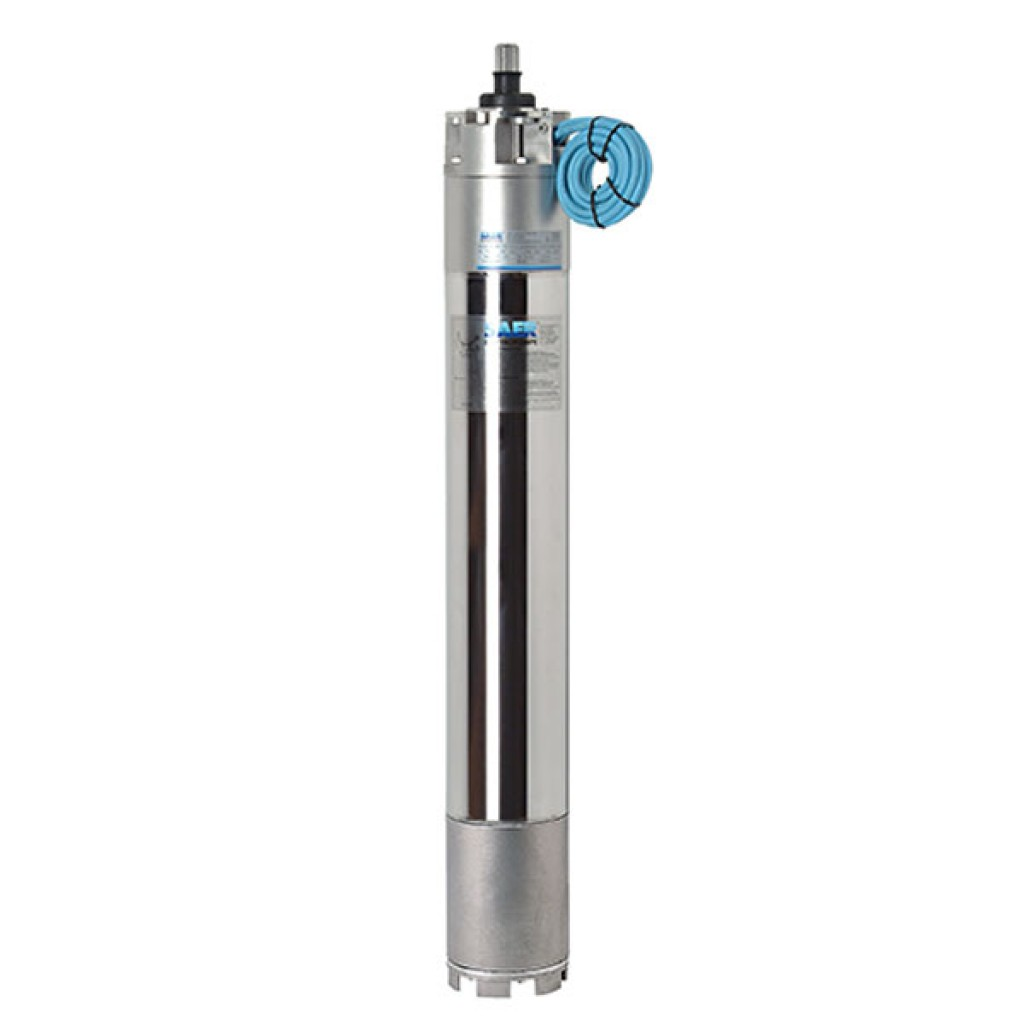

SAER 8″ Stainless Steel 316 Submersible Motor – 100HP, 460V-3PH, 3 Wire, SS316 + PT100

Motor for radial or semi-axial submersible pumps, in wells with 8” diameter or bigger, basins or boosters for pressurization systems.

Product Advantages

  • A compensation membrane on the bottom of the motor ensures the balance between the internal and external pressures, along with the variation of the water volume due to the temperature.
  • Standard, double seal system on rotor shaft: bi-directional mechanical seal in SiC-AlO + sand-guard with laminar seal.
  • Rotation: clockwise or counter clockwise without distinction.
  • Cable material suitable for use with drinking water.
  • All motors 100% tested.
  • Ready for installation of a PT100 sensor.

 Unit Price Only

$30,343.04

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

🚨 Important Shipping Note:

Forklift or loading dock required for commercial deliveries.
This item ships via freight and cannot be unloaded without proper equipment.



Residential Delivery
If the delivery address is residential , or classified as residential by the freight carrier , Liftgate + Residential Delivery Service must be added before shipment.



Important
The freight carrier determines whether an address is commercial or residential at the time the shipment is booked.


If the customer indicates the location is “commercial” (for example: farm, ranch, home-based business, or similar), but the carrier classifies the address as residential, residential and/or liftgate charges will still apply and must be paid before delivery can be scheduled.



Add the required services below if your location is residential or if a forklift/loading dock is not available.Hand Point Down SVG Vector

Free Shipping , Get it in 2 – 5 Business Days

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Description

Technical Data

Technical Specifications

  • From 13kW to 110kW.
  • Flange: 8” NEMA.
  • Protection rating: IP68.
  • Installation: vertical or horizontal.
  • 60 Hz voltage tolerance: -10% / +10%.
  • Max. immersion depth: 652.2 ft.
  • Max. water temperature: 122 °F.

Technical Data

Brand Saer
Model MSX201-100C + PT100
Material Stainless Steel 316
Rated Output HP 100
kW 75
Rated Voltage V 460 – 3 Phase
Rated Current A 124
RPM min⁻¹ 3505
ɳ (Eff.) % 50% 83.5
75% 86.5
100% 87
COSφ (PF) 50% 0.67
75% 0.79
100% 0.86
Ia / In 5.70
Ca / Cn 1.96
Axial Thrust lb 10000
Ia / In: Locked rotor current/Rated amperage
Ca / Cn: Locked rotor Torque/Rated Torque

Dimensions

Flange Conection Diameter L Net Weight
in in lb
Nema 8 52.6 490.6

Materials

Parts List
