Description
Product Description
The Rovatti HL65-200 Cast Iron Hydraulic-Driven Centrifugal Pump is a high-performance solution designed for demanding agricultural, fire fighting, and industrial applications. Built with precision and durability in mind, this pump delivers a maximum flow rate of 640 GPM, making it ideal for high-volume water transfer, irrigation, and emergency fire suppression.
Constructed from heavy-duty cast iron, the Rovatti HL50-200 ensures long-lasting performance and reliability in challenging environments. Its hydraulic-driven design offers superior efficiency and flexibility, allowing seamless integration with hydraulic systems commonly used in tractors and mobile equipment.
Whether you’re operating in agricultural fields, industrial sites, or fire fighting operations, the Rovatti HL65-200 provides consistent, powerful performance when it matters most.
Key Features
- High Flow Capacity: Delivers up to 640 GPM, suitable for large-scale applications.
- Robust Cast Iron Construction: Ensures durability and resistance to wear, even in harsh environments.
- Hydraulic-Driven Design: Compatible with hydraulic systems, offering reliable and efficient operation without the need for an electric or fuel motor.
- Versatile Applications: Ideal for irrigation, water transfer, industrial use, and fire fighting.
- Easy Maintenance: Designed for simple servicing, reducing downtime and maintenance costs.
Technical Specifications
- Model: HL65-200
- Flow Rate: Up to 640 GPM
- Material: Cast Iron
- Drive Type: Hydraulic
- Applications: Agriculture, Fire Fighting, Industrial Water Transfer
- Made in Italy
Dimensions
|
Flanges |
Connections | |||||||||||||||
|
DN |
PN | D1 [mm] |
D2 [mm] |
Holes [mm] |
D3 [mm] |
1 | 2 |
3 |
||||||||
| 65 | 16 | 185 | 145 | 8 | 18 | G ¼” | G ¼” |
G ¼” |
||||||||
|
Pump |
DNa | DNm | A | B | C | h1 | h2 | m1 | m2 | m3 | n1 | n2 | s1 |
Weight |
||
|
HL65-200 |
80 | 65 | 304 | 100 | 210 | 160 | 225 | 125 | 95 | 65 | 320 | 250 | 14 | 45 | ||
| Pump | Max. Speed | Max. Suction Pressure [bar] |
Max. Operating Pressure [bar] |
| HL 65-200 | 2600 | 1 |
10 |

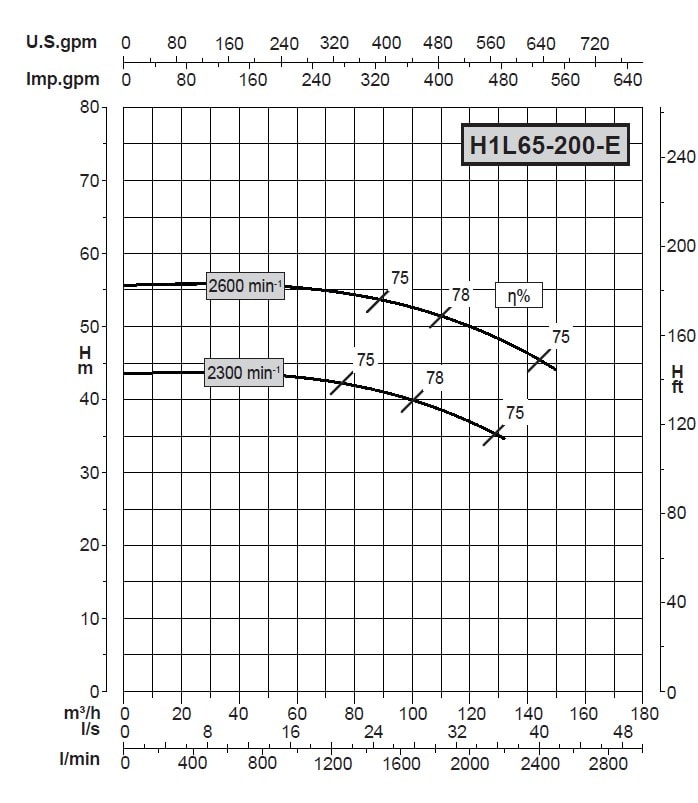

Performance Curve
Performance Table
|
Pump |
Impeller |
min-1 |
m3/h |
0 | 24 | 48 | 72 | 84 | 96 | 108 |
|
l/min |
0 | 400 | 800 | 1200 | 1400 | 1600 | 1800 | |||
| l/s | 0 | 6,7 | 13,3 | 20 | 23,3 | 26,7 | 30 | |||
|
HL50-200 E impeller Ø=220mm |
E |
2300 |
H(m) |
43,5 | 43.7 | 41.6 | 38 | 34.6 | ||
| N(kW) | 6 | 8.2 | 12.4 | 15.2 | 16.8 |
|
||||
|
E |
2600 |
H(m) |
55.6 | 55.8 | 54.1 | 50.9 | 48 | 44,1 | ||
| N(kW) | 8.7 | 11.4 | 16.6 | 20.2 | 22.3 | 24.3 | ||||
|
|
|
|||||||||
