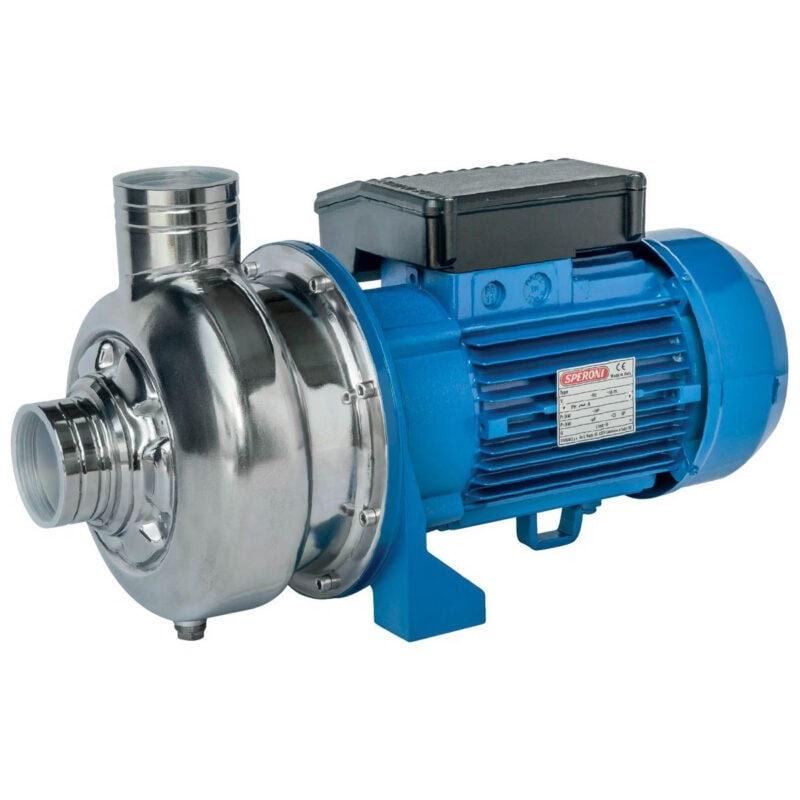

Open Impeller Centrifugal Water Pump 11040 GPH – 1.5HP – WXM300-A/1.1 – SS304 – 1P

$449.99

APPLICATION

It can be used to convey the residual suspended solids from food processing; it can be used to clean vegetables, meat or fish or to clean metal parts, bottles, tins, or glassware It can be used in circulating systems and it can be used to convey any type of dirty liquid and slightly corrosive liquids as well. It is suitable to be used as part of factory washing systems and industrial dishwashers.

OPERATING CONDITIONS

– Liquid temperature up to 35°C (for home use
according to EN 60335-2-41)
Temperature max. liquid: 90°C (for other uses)
– Ambient temperature up to 40°C
– Total suction lift up to 3 mt.
– Continuous duty

MOTOR
– Single-phase 230V-60Hz
– Two-Pole induction motor (n = 3450 rpm)
– Insulation Class F
– Protection IP 55

MATERIALS
– Pump body Stainless Steel AISI 304
– Motor Support Aluminium
– Open impeller Stainless Steel AISI 304
– Shaft with rotor Stainless Steel AISI 304
– Mechanical seal Silicon/Silicon/Viton

MADE IN ITALY

Estimated Delivery Time: 3 – 5 Business Days

.

Description

APPLICATION

It can be used to convey the residual suspended solids from food processing; it can be used to clean vegetables, meat or fish or to clean metal parts, bottles, tins, or glassware It can be used in circulating systems and it can be used to convey any type of dirty liquid and slightly corrosive liquids as well. It is suitable to be used as part of factory washing systems and industrial dishwashers.

OPERATING CONDITIONS

– Liquid temperature up to 35°C (for home use
according to EN 60335-2-41)
Temperature max. liquid: 90°C (for other uses)
– Ambient temperature up to 40°C
– Total suction lift up to 3 mt.
– Continuous duty

MOTOR
– Single-phase 230V-60Hz
– Two-Pole induction motor (n = 3450 rpm)
– Insulation Class F
– Protection IP 55

MATERIALS
– Pump body Stainless Steel AISI 304
– Motor Support Aluminium
– Open impeller Stainless Steel AISI 304
– Shaft with rotor Stainless Steel AISI 304
– Mechanical seal Silicon/Silicon/Viton

MADE IN ITALY

Estimated Delivery Time: 3 – 5 Business Days

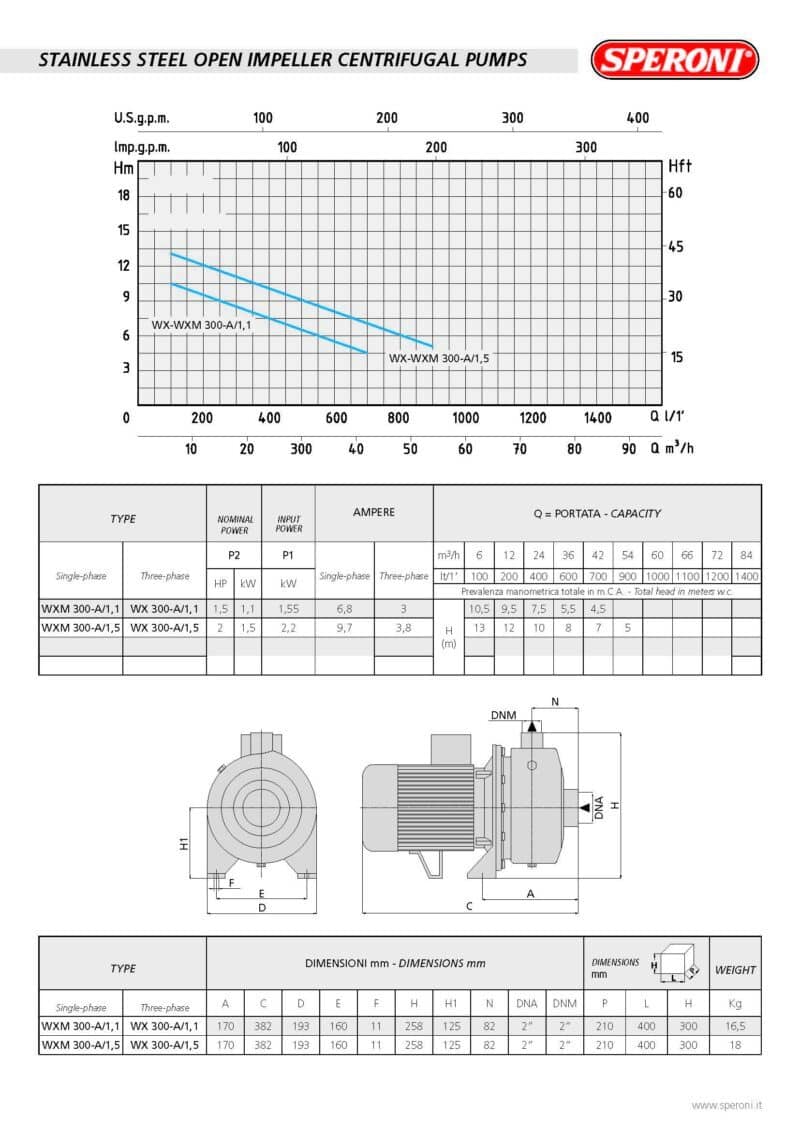

More Details:



Model WXM300-A/1.1
Brand SPERONI
Manufacturer’s Warranty 1 year
Ship Weight 36 lbs
Port Size (in.) 2″
Flow (GPH) 11040
HP 1.5
Voltage 220V – Single Phase
Amps 8.2
Max. Total Head (ft.) 32
Max. Suction Lift (ft.) 10
Max. PSI 15.2
Suction Port (in.) 2″
Discharge Port (in.) 2″
Self-Priming No
Dimensions L x W x H (in.) 18 x 12 x 15
Product Weight (lbs.) 32 lbs

WXM300 A1.1SPERONI



Additional information

Weight 35 lbs
Dimensions 18 × 12 × 15 in
