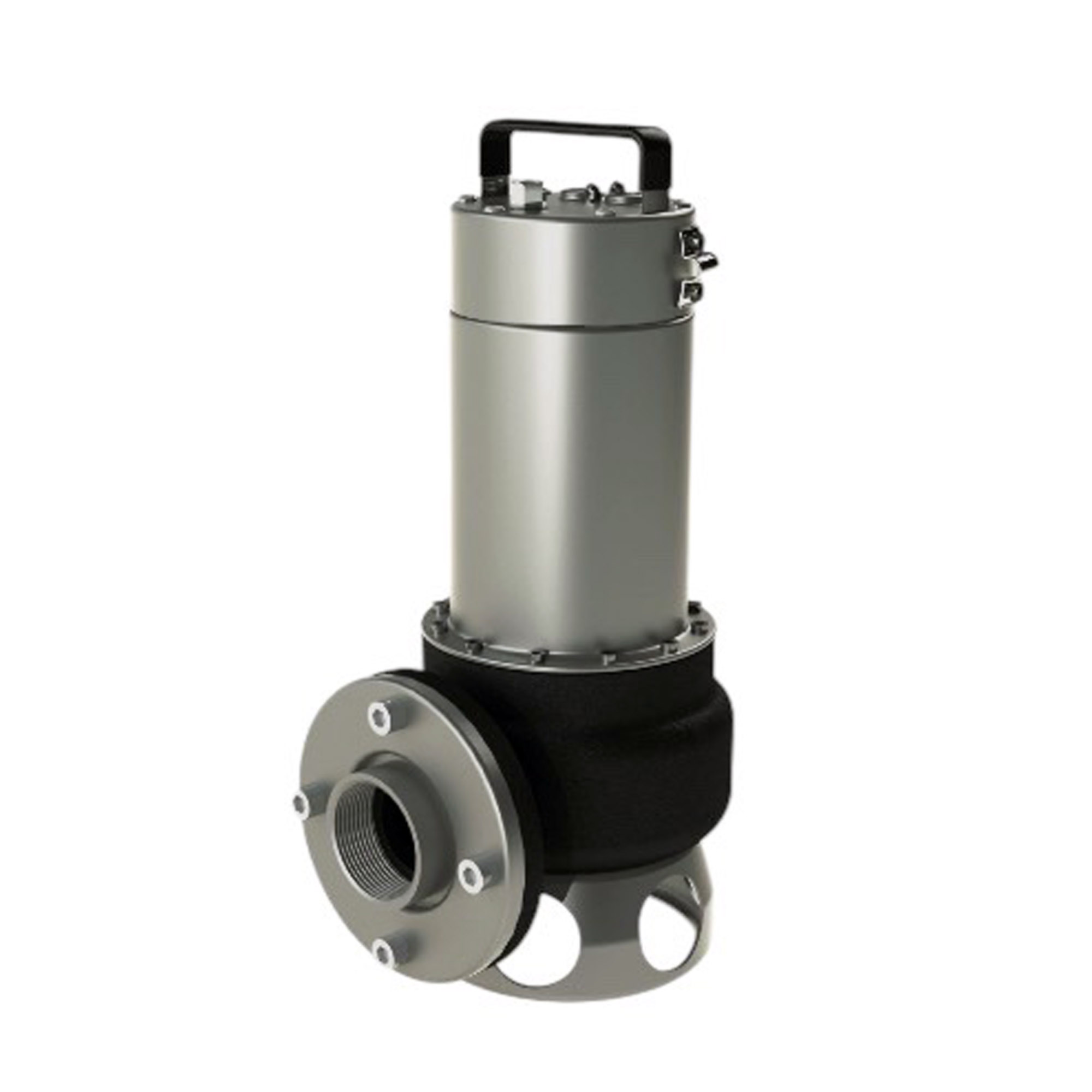

Manual Sewage Submersible Pump JIGER F 400 – 230V, 3Ph, 19284GPH, 5.5HP, 3″

5/5
FREE SHIPPING
SKU: 1137126 Categories: , , , , Tags: ,
SKU 1137126 Categories , , , , Tags ,
SKU: 1137126 Categories: , , , , Tags: ,

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Manual Sewage Submersible Pump JIGER F 400 – 230V, 3Ph, 19284GPH, 5.5HP, 3″

5/5

 Unit Price Only

$3,401.41

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Request Lift Gate Service
Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Scan or click to get the app!

Cart

Advertisement

Product Data >>>

Submersible Vortex electric pumps for wastewater, featuring a counter flange

Applications

  • Decantation pit, sewage pit and slurry collection pit pump out.
  • Pump out of lavatory/foul water with possible floating solids contents.
  • Domestic and industrial lavatory/black water handling systems.

Description

Design Engineering

  • Dual Chamber Electric Pump (Motor, Mechanical Seal).
  • Oil Bath Motor (Biodegradable and Dielectric) for Colling and Bearing Lubrication.
  • Sealing Ring – Engine Face.
  • Oil Bath Mechanical Seal.
  • Permissible Draught of Water: 16.4 ft.
  • Protection Class IP 68.
  • Class “F” Insulation.
  • Max. Pumped Liquid Temperature: 77°F with Partially submerged pump and 95°F with Totally submerged pump.
  • By Pass Section: 3.1″.
  • Three Phase: 230V/60Hz with built in thermal protection and permanent capacitor.
  • Cable Length: 32.8 ft. H07RN-F.

Performance Curve

Model Voltage HP P1 Max. Ampere Capacitor Capacity
60Hz Kw A μF VC Gal/Min 0 13.2 52.8 92.5 123.3 184.9 264.2 321.4
JIGER F 400 3 x 230V 5.5 6.5 20.5 – – Ft. 62.3 60.7 59.1 54.1 49.2 39.4 23 6.6

Dimensions

Dimensions (inch) Cable Length Weight
A B C D E F G Ft. Lb
3 NPT 1 5.2 11.4 8.8 20.6 8.4 32.8 105.6

Parts List and Materials

Additional information

Weight 106 lbs
Dimensions 10.5 × 15 × 29 in
