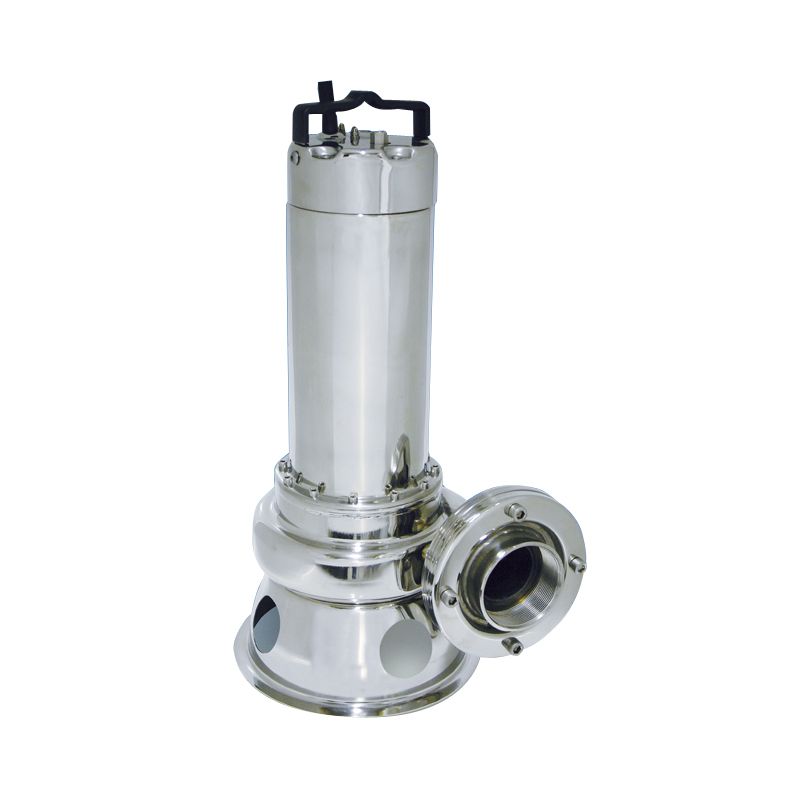

Manual Sewage Submersible Pump JENAX 200F – 230V, 3Ph, 14400GPH, 2.5HP, 2.5″

Manual Sewage Submersible Pump JENAX 200F - 230V, 3Ph, 14400GPH, 2.5HP, 2.5"
SKU: 1137140 Categories: , , , , Tags: , ,

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 1137140 Categories: , , , , Tags: , ,

Manual Sewage Submersible Pump JENAX 200F – 230V, 3Ph, 14400GPH, 2.5HP, 2.5″

Print Product Page

Submersible Single Channel Electric Pumps for Very Foul Wastewater, featuring a Counter Flange

Applications

  • Decantation pit, slurry collection pit pump out.
  • Pump out of lavatory / foul water with floating / non-floating solids and fiber suspensoids.
  • Domestic and industrial lavatory / black water handling systems.

SKU 1137140 Categories , , , , Tags , ,

UNIT PRICE

$3,029.79

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Design Engineering

  • Double Chamber Electric Pump (Motor, Mechanical Seal).
  • Oil Bath Motor (Biodegradable and Dielectric) for Colling and Bearing Lubrication.
  • Sealing Ring – Engine Face.
  • Oil Bath Mechanical Seal.
  • Permissible Draught of Water: 16.4 ft.
  • Protection Class IP 68.
  • Class “F” Insulation.
  • Max. Pumped Liquid Temperature: 77°F with Partially submerged pump and 95°F with Totally submerged pump.
  • By Pass Section: 2.4″.
  • Three Phase: 230V/60Hz with overload protection care of the user.
  • Cable Length: 32.8 ft. H07RN-F.

Performance Curve

Model Voltage HP P1 Max. Ampere Capacitor Capacity
60Hz Kw A μF VC Gal/Min 0 13.2 52.8 105.7 167.3 198.1 237.8 290.6 317 356.6
JENAX 200F 3 x 230V 2.5 3.3 10 – – Ft. 59.1 55.8 42.7 29.5 16.4 11.5 6.6 – – –

Dimensions

Dimensions (inch) Cable Length Weight
A B C D E F G Ft. Lb
2.5 NPT 4.5 4.6 10.2 7.6 18.6 8.4 32.8 49.5

Parts List and Materials

Additional information

Weight 50 lbs
Dimensions 10.5 × 12 × 21 in
