JMS Drainage Submersible Pump JUMPER 200 – 230V, 3Ph, 6360GPH, 2.5HP, 2″

JMS Drainage Submersible Pump JUMPER 200 - 230V, 3Ph, 6360GPH, 2.5HP, 2"
SKU: 1137115 Categories: , , , , , , Tags: , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 1137115 Categories: , , , , , , Tags: , Brand:

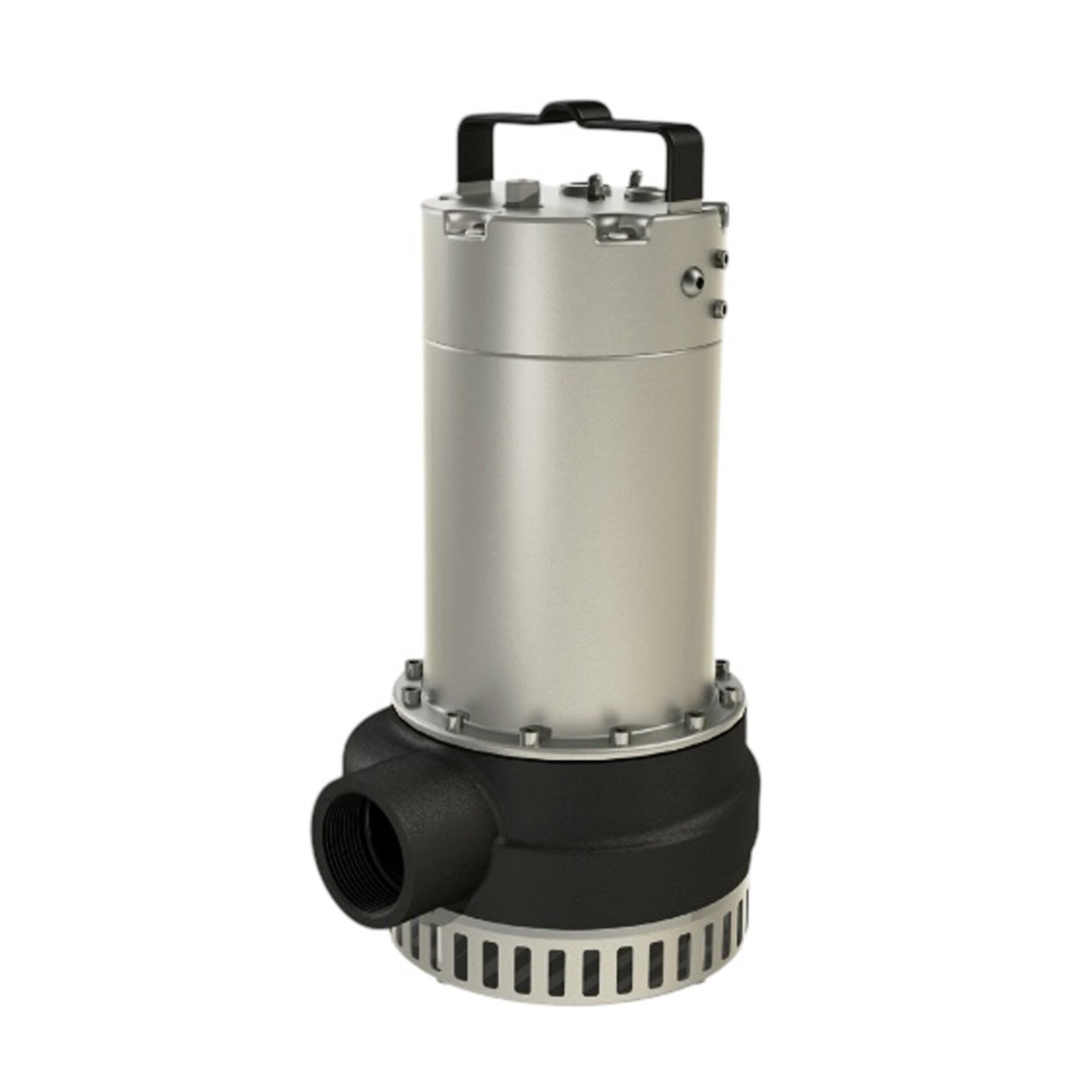

JMS Drainage Submersible Pump JUMPER 200 – 230V, 3Ph, 6360GPH, 2.5HP, 2″

Print Product Page

Submersible electric pumps for foul wastewater drainage

Applications

  • Cellar, garage and basement pump out.
  • Swimming pools, all sorts of vats, tanks and reservoir pump out.
  • Rain, seepage, sump pit and catch tank water pump out.
  • Garden and vegetable-garden irrigation.

SKU 1137115 Categories , , , , , , Tags , Brand:

UNIT PRICE

$2,345.64

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Design Engineering

  • Double Chamber Electric Pump (Motor, Mechanical Seal).
  • Oil Bath Motor (Biodegradable and Dielectric) for Colling and Bearing Lubrication.
  • Sealing Ring – Engine Face.
  • Oil Bath Mechanical Seal.
  • Permissible Draught of Water: 16.4 ft.
  • Protection Class IP 68.
  • Class “F” Insulation.
  • Max. Pumped Liquid Temperature: 77°F with Partially submerged pump and 95°F with Totally submerged pump.
  • By Pass Section: 0.3″.
  • Three Phase: 230V/60Hz with overload protection care of the user.
  • Cable Length: 32.8 ft. H07RN-F.

Performance Curve

Model Voltage HP P1 Max. Ampere Capacitor Capacity
60Hz Kw A μF VC Gal/Min 0 13.2 26.4 39.6 52.8 66 79.3 92.5 105.7 132.1 145.3
JUMPER 200 3 x 230V 2.5 3.6 10.5 – – Ft. 68.9 62.3 55.8 49.2 44.3 32.8 23 13.1 4.9 – –

Dimensions

Dimensions (inch) Cable Length Weight
A B C D E G Ft. Lb
2 NPT 7.5 9.8 14.9 5.8 3.2 32.8 62.7

Parts List and Materials

Additional information

Weight 63 lbs
Dimensions 10.5 × 12 × 20 in
