Customized voltage and frequency rating available on demand.
Available with UL list motors.
$293.76
Take a quick look inside our Miami warehouse and discover the people, products, and expertise behind every order we ship.
Browse pumps, motors, and industrial equipment right from your phone. Find what you need, explore products, and shop with ease.
at 3450 rpm 60Hz
The performances data holds true for liquids:
p= 1,0 kg/dm3 density and a v=1 mm2/s viscosity.
| Model | Voltage | P2 Nom. | P1 Max | Ampere | Hydraulic | |||||||||||
| 60Hz | Hp | Kw | Kw | 1 x 115V 60Hz | 1 x 220V 60Hz | Gal/Min | 2.6 | 5.3 | 8 | 10.6 | 13 | 16 | 32 | 37 | 40 | |

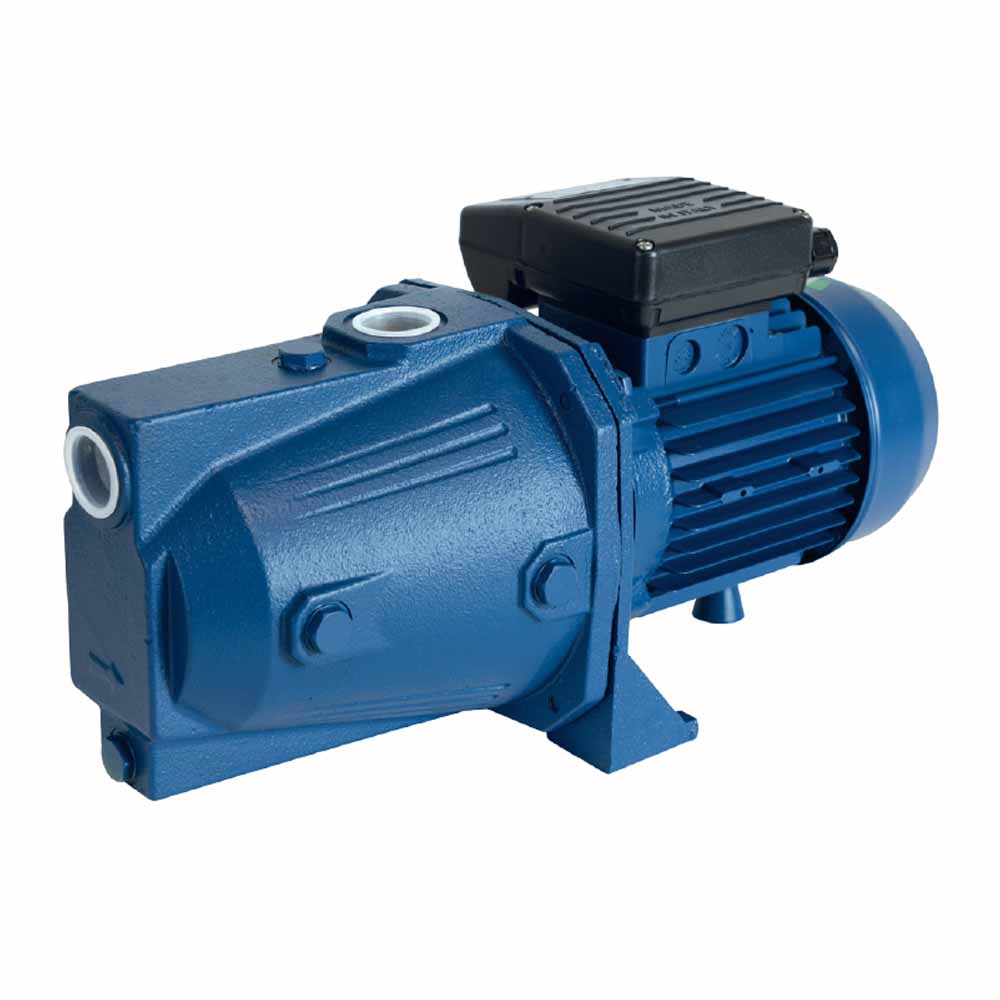

| JET-P 80M | 1 x 115-220V | 0.8 | 0.6 | 0.8 | 9.8 | 4.8 | Ft. | 138 | 118 | 98.4 | 82 | – | – | – | – | – |
| DNA Aspir | Outlet | Dimensions Box | Weight | ||
| Inch | Inch | L | M | N | Lb |
| 1 | 1 | 8 | 18 | 9.4 | – |
| Weight | 57 lbs |
|---|---|
| Dimensions | 17 × 11 × 12 in |
| AC voltage | |
| Brands | |
| category ac pumps | |
| Horse power Ac | |
| Phase | |
| Pump material | |
| Self Priming |
Easy Selector
Product information
Applications For domestic systems and small irrigation system pressurization. Handling of non aggressive civil and industrial liquids. For washing systems and for insertion into complex industrial machinery and lines. For any application requiring a self priming system. Design Engineering 2 pole electric induction motor for continuous operations. Stator made with low-loss laminated electric sheet steel. Insulation Class F. IP 44 protection level. Thermal protection for single-phase models, the user is responsible for supplying protection for…
