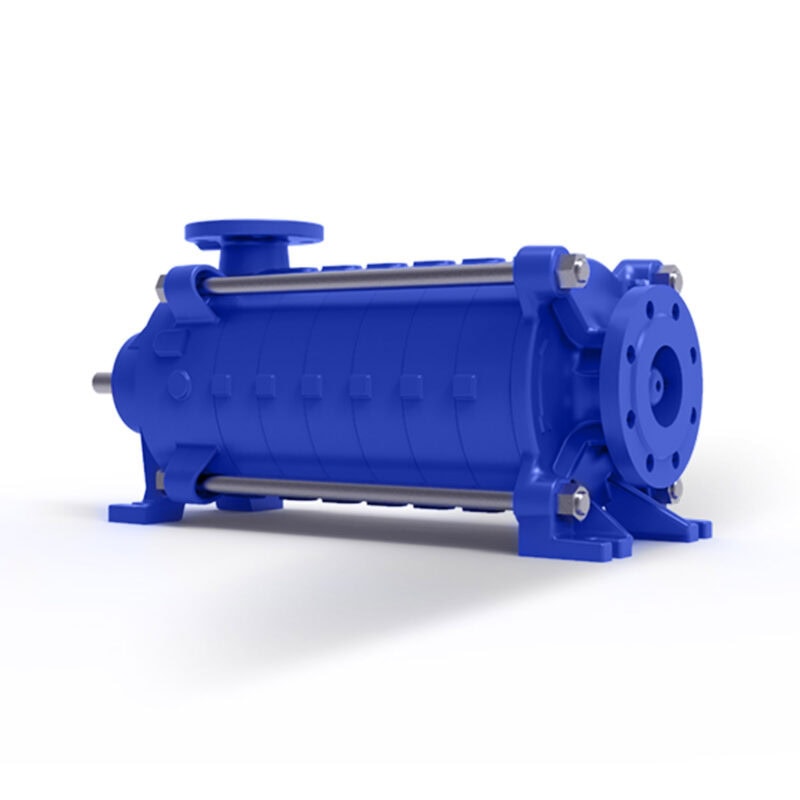

Horizontal Multi Stage Centrifugal Pump – Model ARS-U 80-03

5/5

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Horizontal Multi Stage Centrifugal Pump – Model ARS-U 80-03

5/5

 Unit Price Only

$3,054.34

ETA 3-5 Days - Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Cart

Advertisement

Product Data>>>

Transferable Liquids

Low-viscosity liquids that are non-abrasive, free of solid particles and fibers, clean or slightly contaminated.

Shaft Sealing

  • In standard production, it is used as soft pocking up to 110 ° C and soft pocking together with refrigerated pocking boxes between 11O ° C and 140 ° C.
  • Mechanical seal pumps are also available upon request.

Applications

  • Water Treatment and Pressurization
  • Power Plants
  • Heating Ventilating and Air Conditioning
  • Oil Industry
  • Agricultural Irrigation and Drainage
  • Chemical Industry
  • Food and Beverage Industry
  • Mining
  • Iron and Steel Industry
  • Marine
  • Building System
  • Fire Fighting

Description

Design Features

  • Horizontal ring section, multistage, centrifugal pumps with closed impellers and diffusers in end suction design.
  • 7 Models from DN 40 up to DN 150 discharge flange diameter.
  • Suction nozzle flanges conform to EN 1092 – 2 / PN 16 and discharge nozzle flanges conform to EN 1092 – 2 / PN 40 (PN 63) (For steel or stainless-steel casing pumps, flanges conform to related pressure class ratings defined in EN 1092 – 1).
  • Discharge flange is on top for standard production, upon request different discharge flange positions can be applied.
  • All impellers are balanced dynamically or statically according to ISO 1940 class 6.3.
  • Axial thrust is balanced by impeller balancing holes system.
  • Direction of rotation is always counter clockwise viewed from drive end. That’s why these pumps cannot be accoupled directly with diesel engines.
  • Bearings of ARS-U type pumps are grease lubricated. Sleeve bearing used in the suction side is lubricated by the pumping liquid.

Pump Code

Parts List

Pump Dimensions

Flange Dimensions

Flange Dimensions

Material Options

Catalogue 1800RPM

Catalogue 3600RPM
