Description

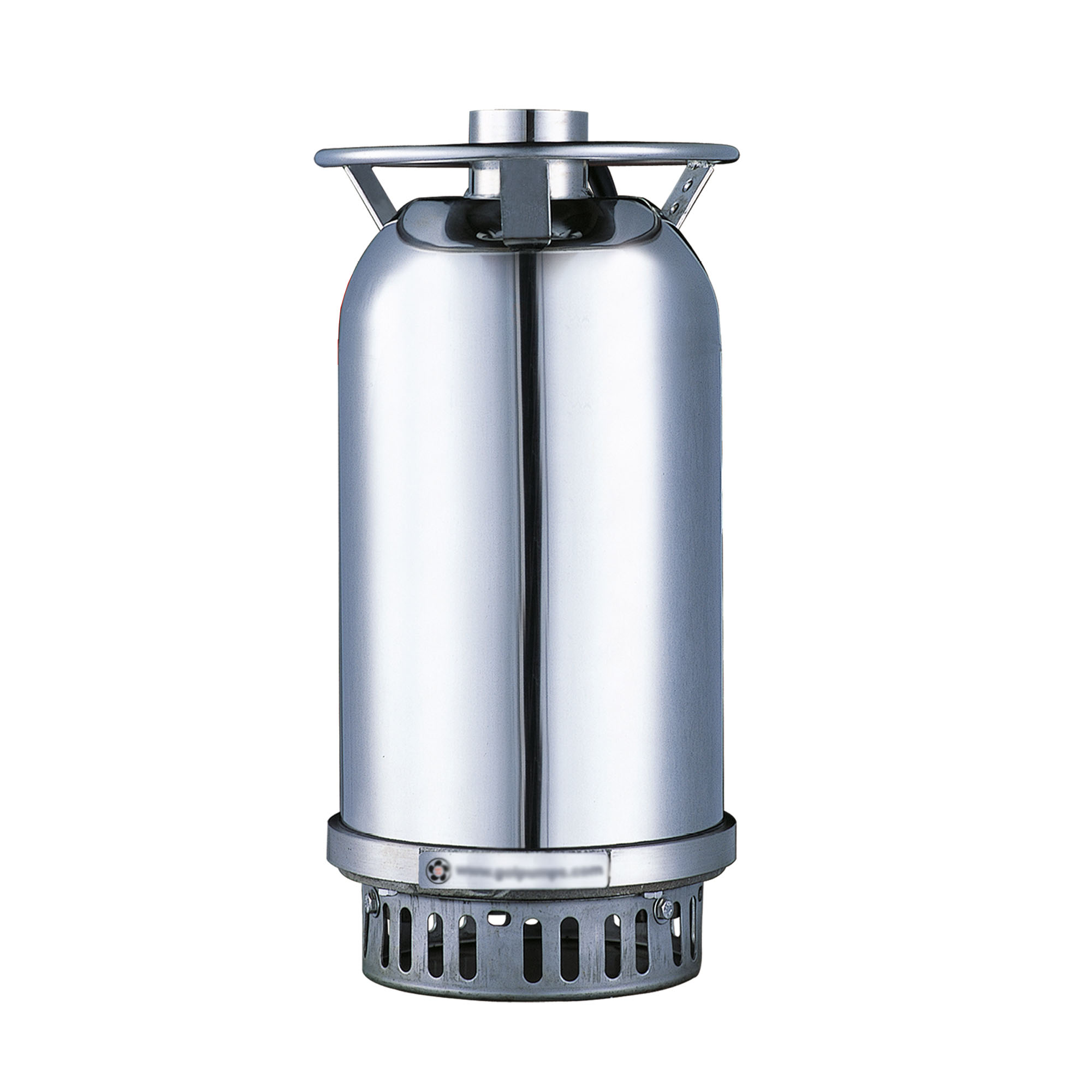

Extra long life design, since the pump body and all related parts are made of casting stainless SCS 13(#304), these will have the capability of anti-acid & alkali; and also suitable for using in sea water. Equipped with double mechanical seals, together with anti-corrosion viton so as to make up these special assemblies. Impeller was balancing processed, this vibration free advantage brings the pump and motor superior servicing life.
Suction Cover: Easily replaceable.
Triplex Seal System for less downtime and longer life: Oil-lubricated Double Mechanical Seals (highly wear-resistant SiC/SiC with Viton) and separate Viton Oil Seal, together with Viton O-Ring.
Motor: Quality motor with a level of protection IP 68, suitable for continuous duty.
Thermal Protector: Single phase model built-in thermal protector prevents any burning damage to the motor.
Applications
The pumps are applicable in the following Industries: Chemistry, heavy-chemistry, medicines, photograph, bleaching, food, fishery, drinks, brewing, oil and fat, fiber, oil refining, cosmetic, metal treatment and electro-plating. For a member of plant for preventing pollution, sewage and drainage treatment, washing plant, dust collecting plant and clean air plant.
Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as:
- Mining dewatering containing acidic fluid.
- Dyeing industry.
- Mariculture.
- Chemical plating.
- Irrigation and other general corrosive media.
Performance Curve
| Type | Motor | Pump | |||||||
| Power | Phase | Volt | Pump Outlet Discharge | Max. Head | Max. Flow | Solid Passage | |||
| HP | KW | PH | V | Inch | Mm | Ft | Gal/Min | Inch | |
| GKHQ-212N | 2 | 1.5 | 1 | 230V | 2 | 50 | 66 | 119 | 1.3 x 0.4 |
Dimensions
| Size (inch) | Weight (lbs.) | ||
| A | B | C | |
| 9 | 3.1 | 22 | 101.2 |
Materials
