HBN 12-20 Horizontal Multistage Water Pump
Non-self-priming horizontal multistage centrifugal pump designed for water supply, pressure boosting, industrial circulation, and liquid handling applications requiring enhanced corrosion resistance.
Construction & Design
- Horizontal multistage centrifugal pump with compact design
- Designed for freely flowing, non-corrosive, non-explosive, and non-flammable liquids
- Suitable for clean liquids without solid matter, sand, fibers, or similar debris
- Stainless steel 316 construction for higher corrosion resistance and durability
- Linear port configuration for convenient installation
Applications
- Water supply and pressure boosting
- Heating and cooling in industrial processes
- Industrial washing and dish-washing machines
- Air-conditioning systems
- Fertilizer and dosing systems
Motor
- Totally enclosed fan-cooled standard motor
- Rated speed: 3450 RPM (60 Hz)
- Enclosure class: IP54
- Insulation class: F
Operating Conditions
- Liquid temperature range: 32°F to 230°F
- Maximum ambient temperature: 104°F
- Maximum operating pressure: 142 PSI
- Maximum inlet pressure limited by maximum operating pressure
- For thin, clean, non-aggressive, and non-explosive liquids without solid particles or fibers
Material: Stainless Steel 316
Performance: 4260 GPH, 4.5 HP, 220/460 Volts, 60 Hz, 3 Phase
+1 (786) 613-5872

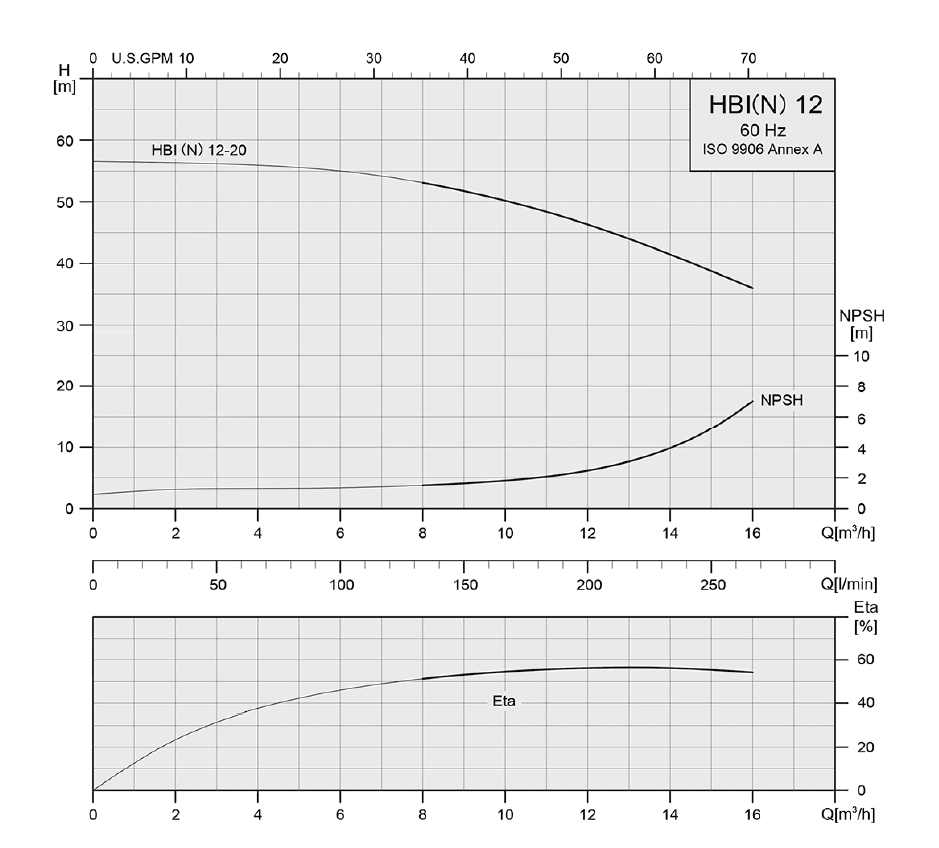

Technical Data
