The SBI pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBI pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.
$2,078.41
WATER SUPPLY AND PRESSURE BOOSTING
IRRIGATION AND AGRICULTURE
LIGHT INDUSTRY
WATER TREATMENT
HEATING, VENTILATION AND AIR-CONDITIONING
Technical Data| Type | Vertical Multistage Centrifugal Pump |
| Model | SBI 5-9 Nema |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Port Size (in.) | 1.25 |
| Flow (GPH) | 2640 |
| HP | 3 |
| Max. Total Head (ft.) | 282 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 124 |
| Suction Port (in.) | 1.25 |
| Discharge Port (in.) | 1.25 |
| Centrifugal | Yes |

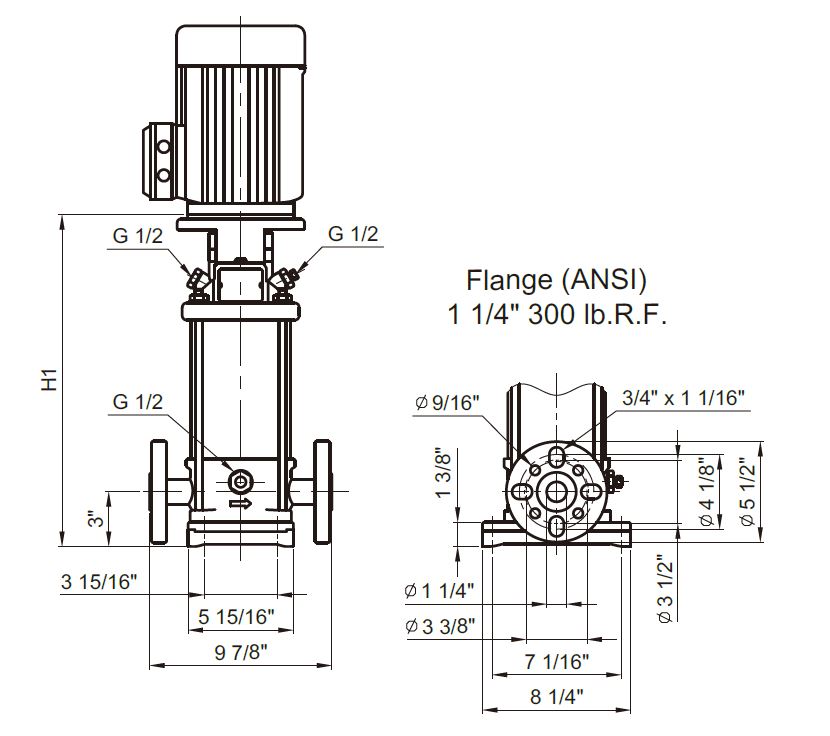

| Dimensions L x W x H (in.) | 9.8 x 8 x 26.6 |
| Product Weight (lbs.) | 86.2 |
|
60Hz Pump type |
Motor P2 | Volts | SBI | |||
|
NEMA Frame |
Dimensions[inch] | Weights[lbs] | ||||
|
Three phase |
ANSI flange | ANSI flange | ||||
| [KW] | [HP] | H1 | ||||
| SBI 5-9 | 2.2 | 3 | 208-230/440-460V | 182 TC | 20.41 |
47.1 |
| Weight | 90 lbs |
|---|---|
| Dimensions | 9.8 × 8 × 30.8 in |
| Brands | |
| category ac pumps | |
| AC voltage | |
| Horse power Ac | |
| Phase | |
| Pump Inlet and Outlet_Multistage |
