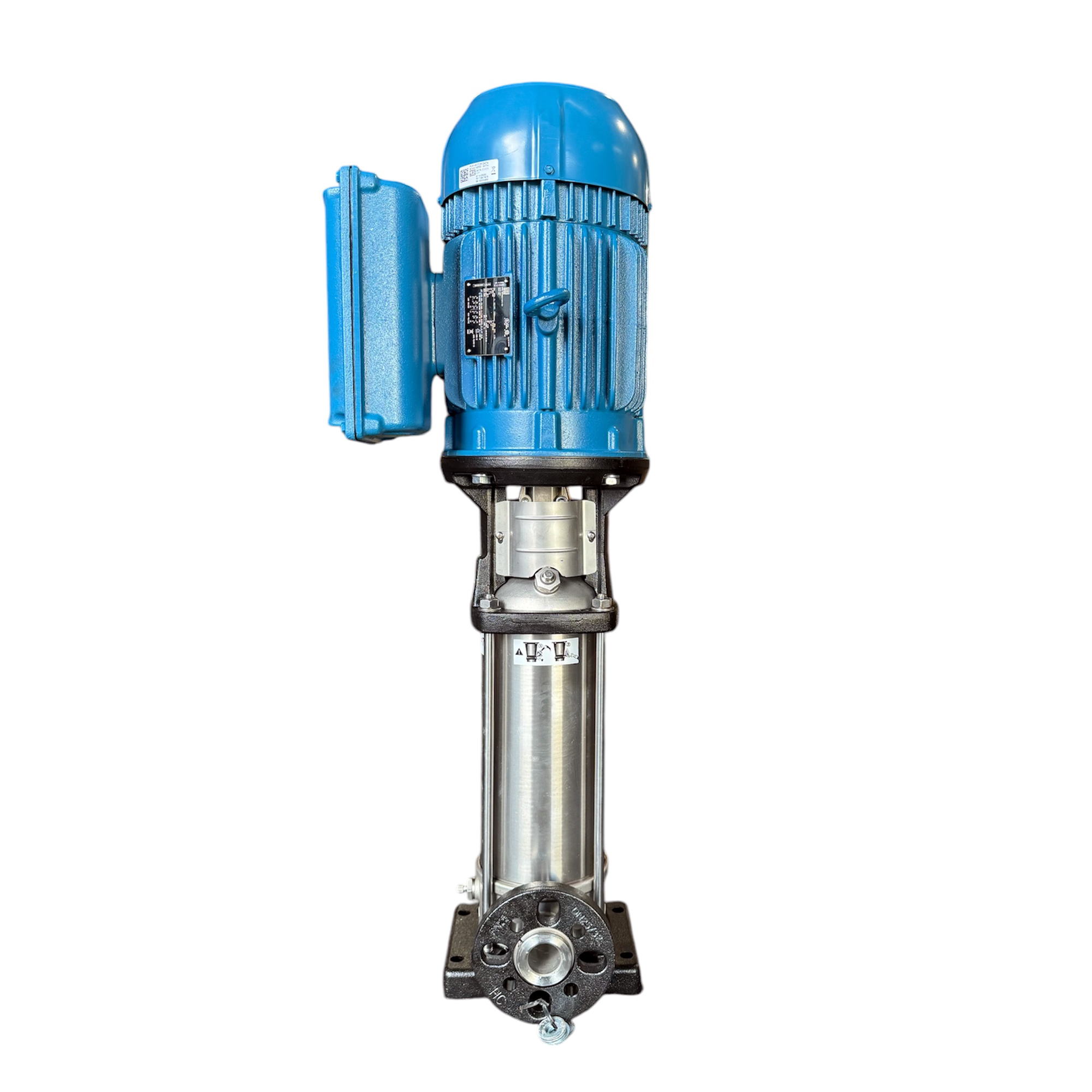

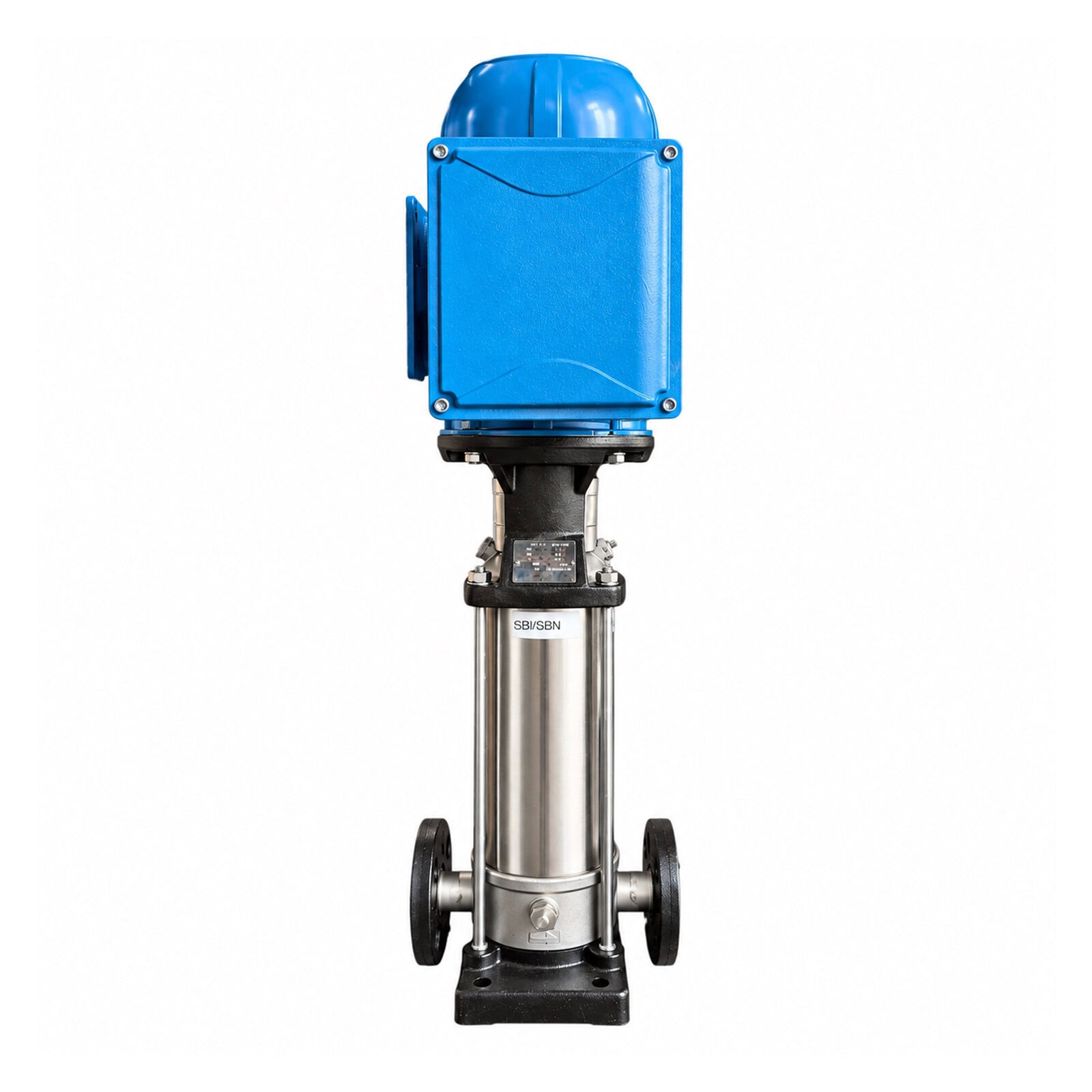

The SBI pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB and SBI pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.
Unit Price Only
$2,490.36
Forklift or loading dock required for commercial deliveries.
This item ships via freight and cannot be unloaded without proper equipment.
Residential Delivery
If the delivery address is residential , or classified as residential by the freight carrier , Liftgate + Residential Delivery Service must be added before shipment.
Important
The freight carrier determines whether an address is commercial or residential at the time the shipment is booked.
If the customer indicates the location is “commercial” (for example: farm, ranch, home-based business, or similar), but the carrier classifies the address as residential, residential and/or liftgate charges will still apply and must be paid before delivery can be scheduled.
Add the required services below if your location is residential or if a forklift/loading dock is not available.
Free Shipping , Get it in 2 – 5 Business Days
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
WATER SUPPLY AND PRESSURE BOOSTING
IRRIGATION AND AGRICULTURE
LIGHT INDUSTRY
WATER TREATMENT
HEATING, VENTILATION AND AIR-CONDITIONING
Technical Data| Type | Vertical Multistage Centrifugal Pump |
| Model | SBI 3-17 NEMA |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Material | Stainless Steel 304 |
| Port Size (in.) | 1.25 |
| Flow (GPH) | 1410 |
| HP | 3 |
| Max. Total Head (ft.) | 524 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 232 |
| Suction Port (in.) | 1.25 |
| Discharge Port (in.) | 1.25 |
| Centrifugal | Yes |
| Dimensions L x W x H (in.) | 9.8 x 8 x 41 |
| Product Weight (lbs.) | 89.3 |
|
60Hz Pump type |
Motor P2 | Volts | SBI | |||
|
NEMA Frame |
Dimensions[inch] | Weights[lbs] | ||||
|
Three phase |
ANSI flange | ANSI flange | ||||
| [KW] | [HP] | H1 | ||||
| SBI 3-17 | 2.2 | 3 | 208-230V | 182 TC | 22.89 |
50.2 |
| Weight | 90 lbs |
|---|---|
| Dimensions | 9.8 × 8 × 30.5 in |
| Brands | |
| category ac pumps | |
| AC voltage | |
| Horse power Ac | |
| Phase | |
| Pump Inlet and Outlet_Multistage |
