Description
Applications
WATER SUPPLY AND PRESSURE BOOSTING
- Pressure boosting in buildings, hotels, residential complexes
- Pressure booster stations, supply of water networks
- Pressure boosting for industrial water supply
IRRIGATION AND AGRICULTURE
- Greenhouses
- Sprinkler irrigation
- Field irrigation (flooding)
LIGHT INDUSTRY
- Washing and cleaning systems
- Car washing facilities
- Fire fighting systems
- Process water systems
- Machine tools (cooling lubricants)
WATER TREATMENT
- Water softeners and de-mineralization Reverse Osmosis systems
- Distillation systems
- Filtration
- Ultra-filtration systems
HEATING, VENTILATION AND AIR-CONDITIONING
- Boilers
- Induction heating
- Heat exchangers
- Refrigerators
- Cooling towers and systems
- Temperature control systems
More Details
| Type | Vertical Multistage Centrifugal Pump |
| Model | GSBI 3-10 NEMA |
| Brand | Gol Pumps |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Material | Stainless Steel 304 |
| Port Size (in.) | 1.25 |
| Flow (GPH) | 1410 |
| HP | 2 |
| Max. Total Head (ft.) | 308 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 135 |
| Suction Port (in.) | 1.25 |
| Discharge Port (in.) | 1.25 |
| Centrifugal | Yes |
| Dimensions L x W x H (in.) | 9.8 x 8 x 28.3 |
| Product Weight (lbs.) | 79.6 |
Performance Curve

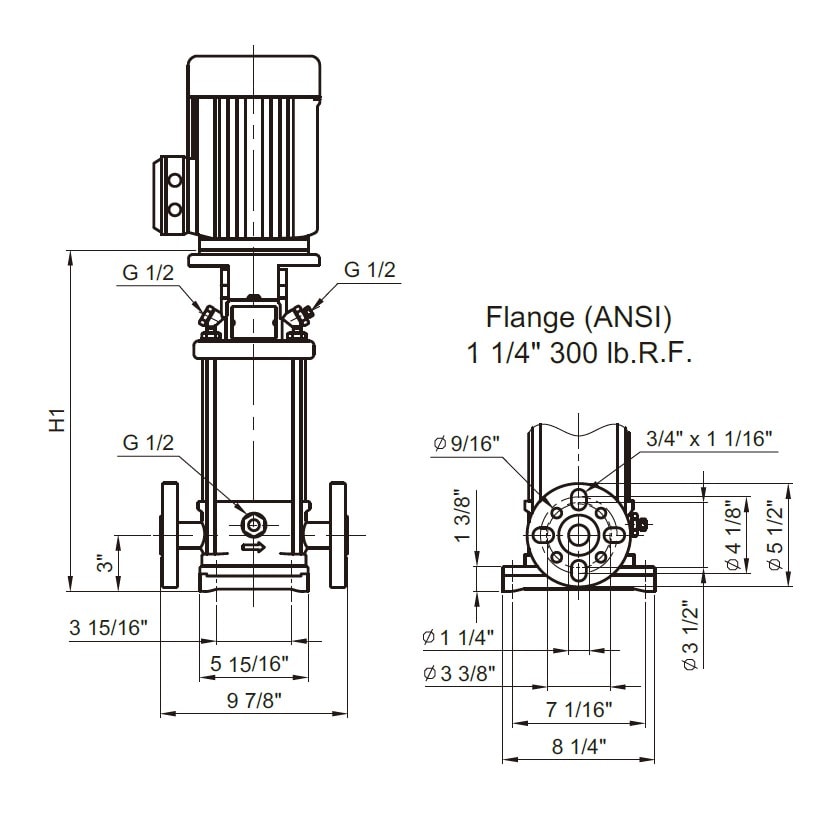

Dimensions
|
60Hz Pump type |
Motor P2 | Volts | SBI | |||
|
NEMA Frame |
Dimensions[inch] | Weights[lbs] | ||||
|
Three phase |
ANSI flange | ANSI flange | ||||
| [KW] | [HP] | H1 | ||||
| GSBI 3-10 | 1.5 | 2 | 208-230/440-460 V | 56 TC | 17.01 |
38.8 |
Parts List and Materials
