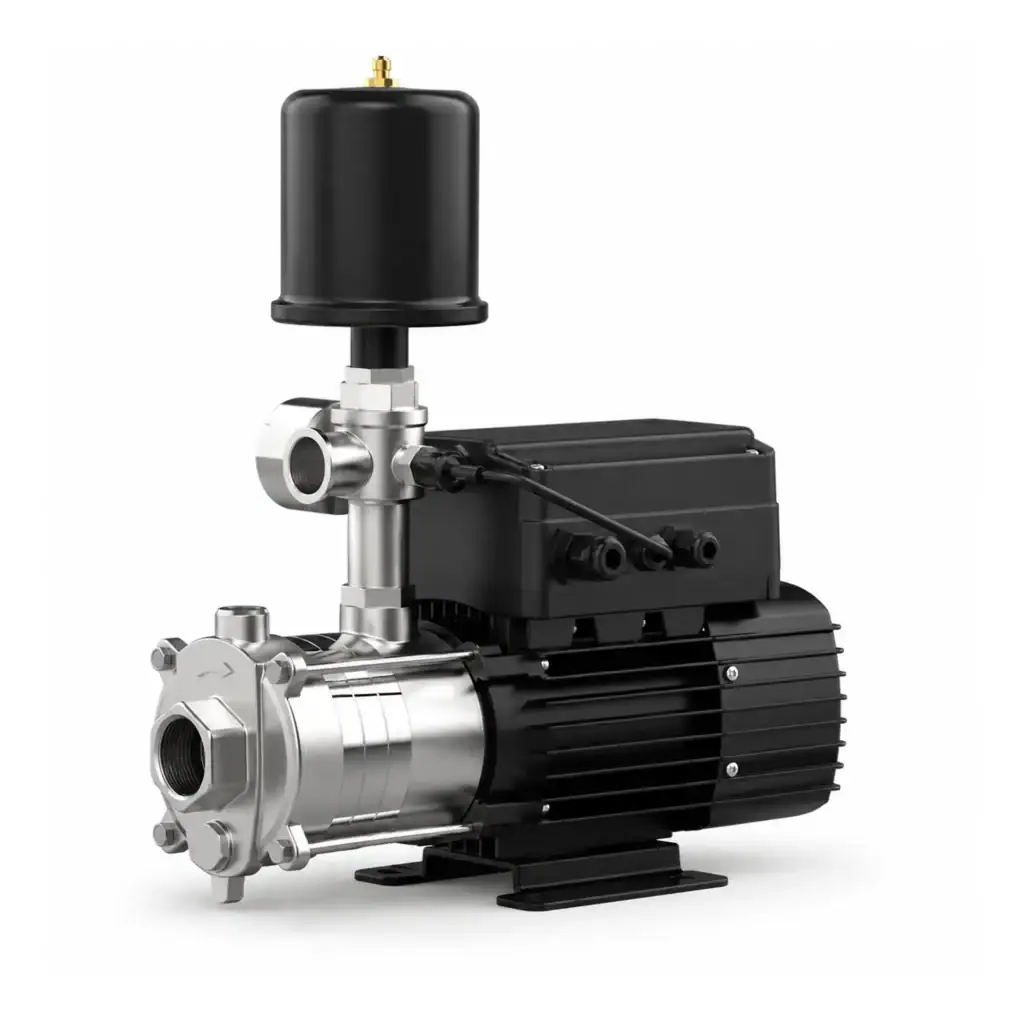

GPTCO Intelligent Booster Pump 2HP, 208-230V, 1Phase, 44 GPM, Model GBWE 1500

GPTCO Intelligent Booster Pump 2HP, 208-230V, 1Phase, 44 GPM, Model GBWE 1500
GPTCO Intelligent Booster Pump 2HP, 208-230V, 1Phase, 44 GPM, Model GBWE 1500 - Image 2
SKU: Please choose an option Categories: , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: N/A Categories: , , , Brand:

GPTCO Intelligent Booster Pump 2HP, 208-230V, 1Phase, 44 GPM, Model GBWE 1500

Print Product Page
  • Wi-Fi Connection
  • High Efficiency PMSM
  • Variable Frequency & Constant Pressure
  • Super Silent < 50dB
  • Wide Range Pressure Settings 20-95%
  • IP55 protection
  • Premium AISI 304 Impeller
  • PCB Sealed with Potting Compound
  • 14 Protection Function Offers Satisfied User Experience
SKU N/A Categories , , , Brand:

UNIT PRICE

$992.80

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Intelligent Booster Pump

Technical Data

Features

  • Wi-Fi Connection
  • High Efficiency PMSM
  • Variable Frequency & Constant Pressure
  • Super Silent < 50dB
  • Wide Range Pressure Settings 20-95%
  • IP55 protection
  • Premium AISI 304 Impeller
  • PCB Sealed with Potting Compound
  • 14 Protection Function Offers Satisfied User Experience

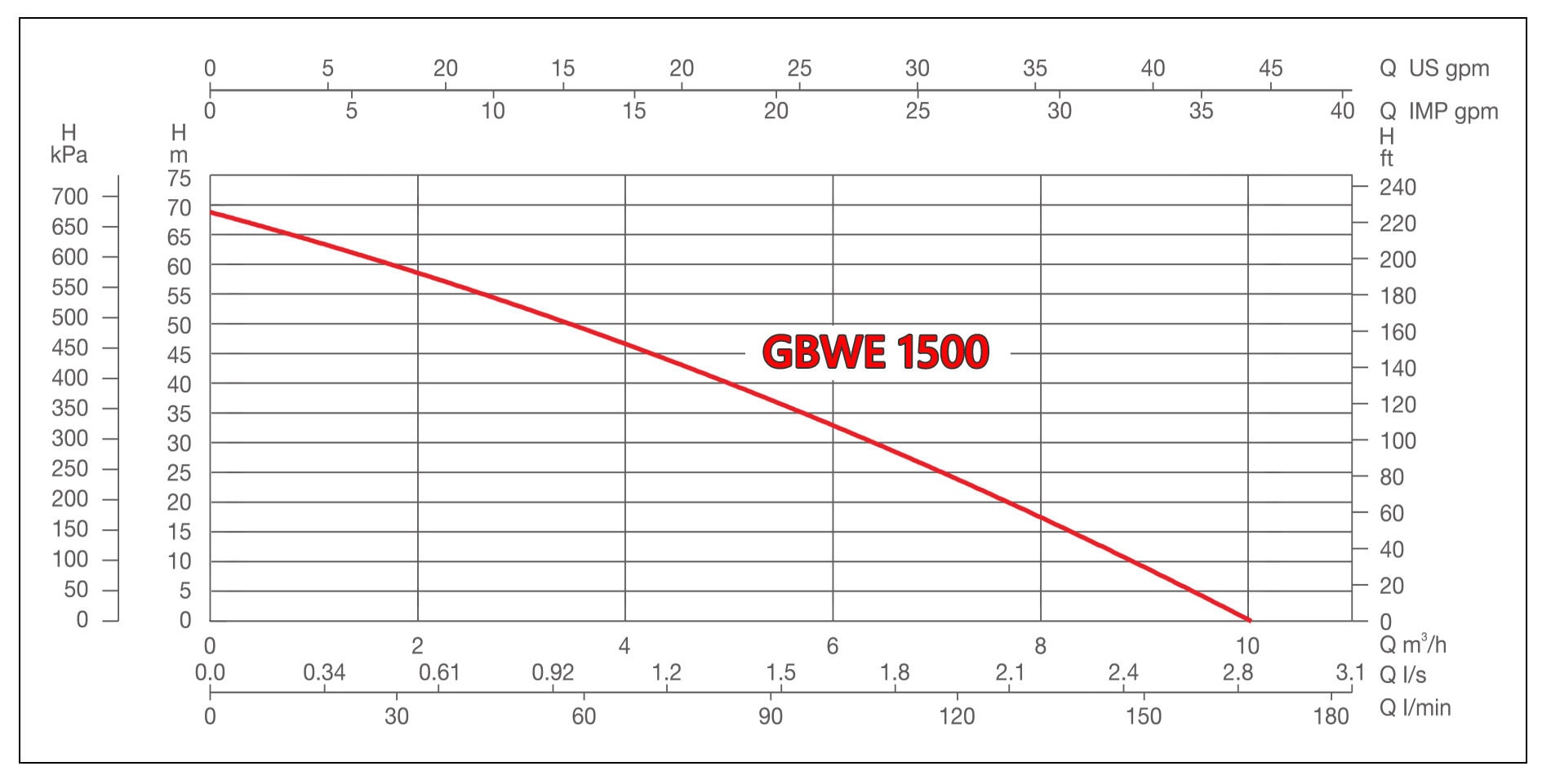

Performance Curve

Model Power Voltage Phase Frequency Q. Max H. Max Q. Rated H. Rated Max. Suct Max. Temp Max. Speed IP Grade Insulation Class
hp V ph Hz GPM ft GPM ft ft °F RPM
GBWE 1500 2 220 Single 50/60 44 230 22 131.2 26.2 167 4800 IP55 F

Dimensions

Inlet Outlet Dimensions (inch)
DN1 DN2 L L1 W W1 H H1 D
1 1/4″ 1″ 14.7 2.8 6.2 5 6.6 3.4 0.5

Parts List

Part No. Description Material
1 Self-Tapping Screws 1 06Cr19Ni10
2 Pump Body 1 06Cr19Ni10
3 Impeller 06Cr19Ni10
4 Diffuser 06Cr19Ni10
5 Shaft Sleeve 06Cr19Ni10
6 Mechanical Seal /
7 Pump Body 2 06Cr19Ni10
8 Bracket ZL102
9 Rotor 06Cr19Ni10
10 Bearing /
11 Bottom Plate Q195
12 Motor /
13 Cable /
14 Self-Tapping Screws 06Cr19Ni10
15 Wind Cover ABS
Part No. Description Material
16 Fan PP
17 Controller Bottom Box ZL102
18 Controller /
19 Display /
20 Cover Box ABS
21 Self-Tapping Screws 06Cr19Ni10
22 PG9 PA66
23 PG11 PA66
24 Sensor 06Cr19Ni10
25 5-Way Connector 06Cr19Ni10
26 Pressure Tank IIR+PA66
27 Drain Plug 06Cr19Ni10
28 Nut 06Cr19Ni10
29 Flat Pad 06Cr19Ni10
30 Seal Pad PTFE
