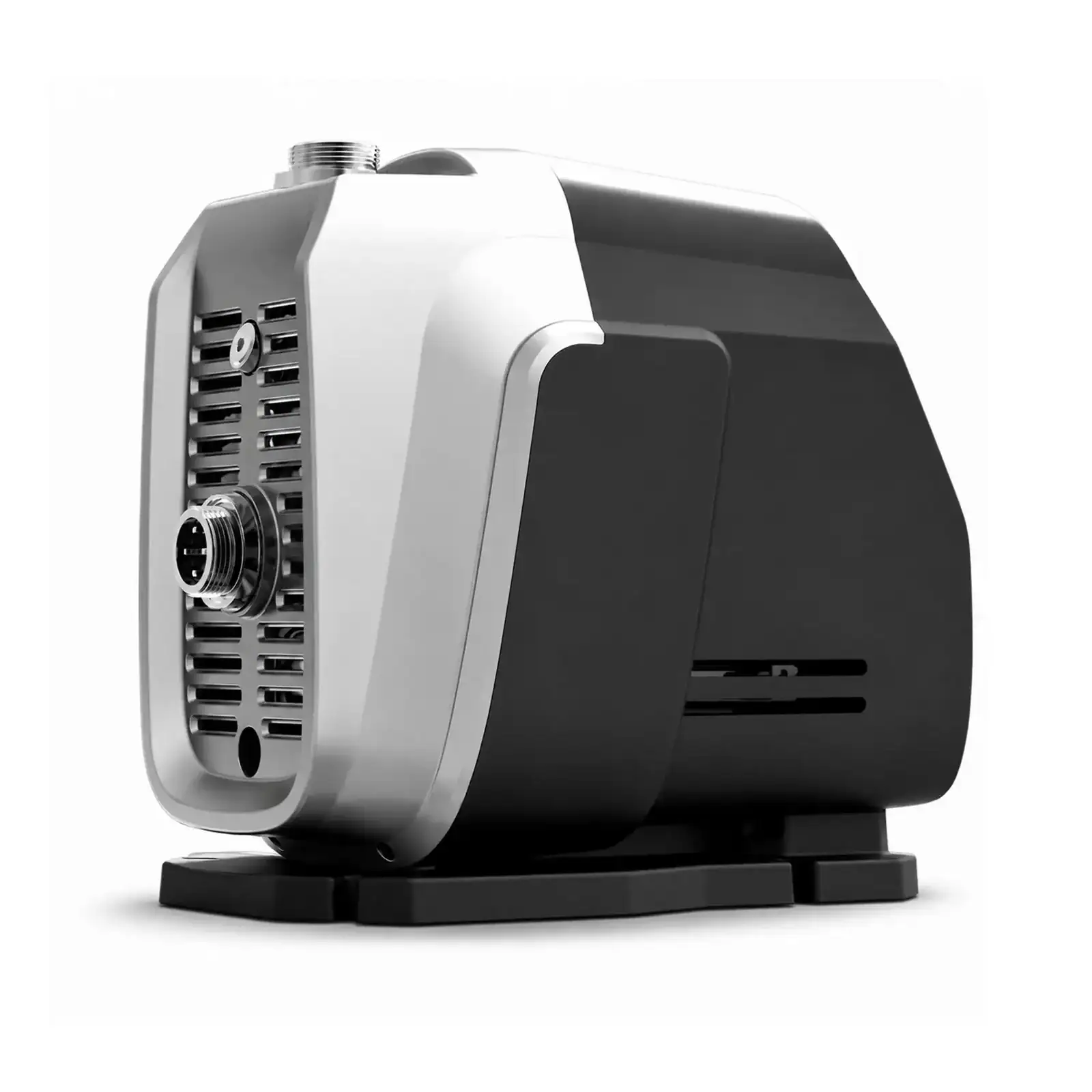

GPTCO Intelligent Booster Pump 1HP, 208-230V, 1Phase, 13.2 GPM, Model GREB 750

GPTCO Intelligent Booster Pump 1HP, 208-230V, 1Phase, 13.2 GPM, Model GREB 750
SKU: Please choose an option Categories: , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: N/A Categories: , , , Brand:

GPTCO Intelligent Booster Pump 1HP, 208-230V, 1Phase, 13.2 GPM, Model GREB 750

Print Product Page
  • Wi-Fi Connection
  • High efficiency PMSM
  • Variable frequency & constant pressure
  • Super silent < 50dB
  • Wide range pressure settings 20-95%
  • IP55 protection
  • PCB Sealed with Potting Compound
  • 14 protection function offers satisfied user experiencec
SKU N/A Categories , , , Brand:

UNIT PRICE

Price range: $418.99 through $468.99

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Intelligent Booster Pump

Technical Data

Features

  • Wi-Fi Connection
  • High efficiency PMSM
  • Variable frequency & constant pressure
  • Super silent < 50dB
  • Wide range pressure settings 20-95%
  • IP55 protection
  • PCB Sealed with Potting Compound
  • 14 protection function offers satisfied user experiencec

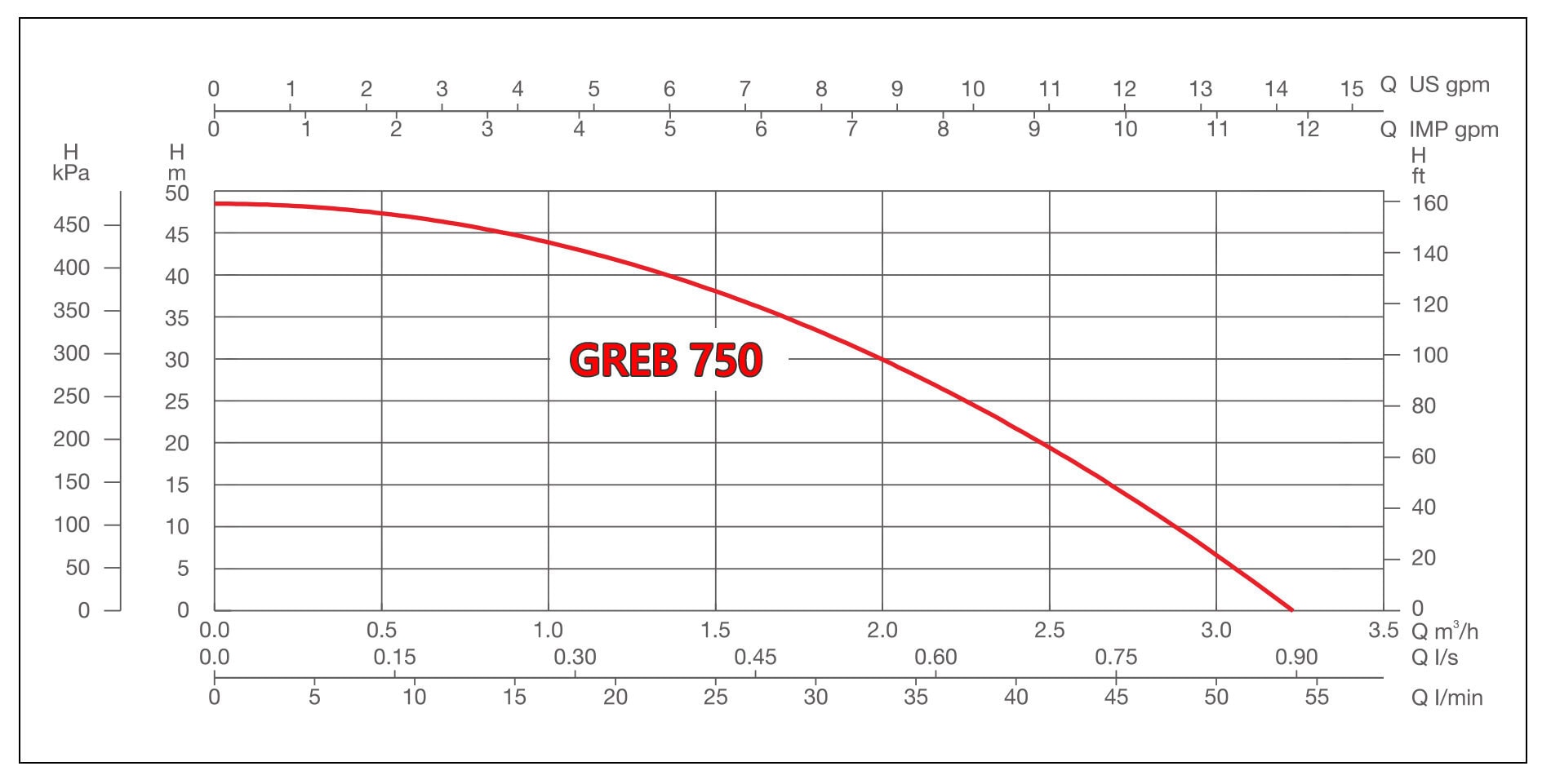

Performance Curve

Model Power Voltage Phase Frequency Q. Max H. Max Q. Rated H. Rated Max. Suct Max. Temp Max. Speed IP Grade Insulation Class
hp V Ph Hz GPM ft GPM ft ft °F RPM
GREB 750 1 220 Single 50/60 13.2 147.6 8.8 91.9 26.2 167 4800 IP55 F

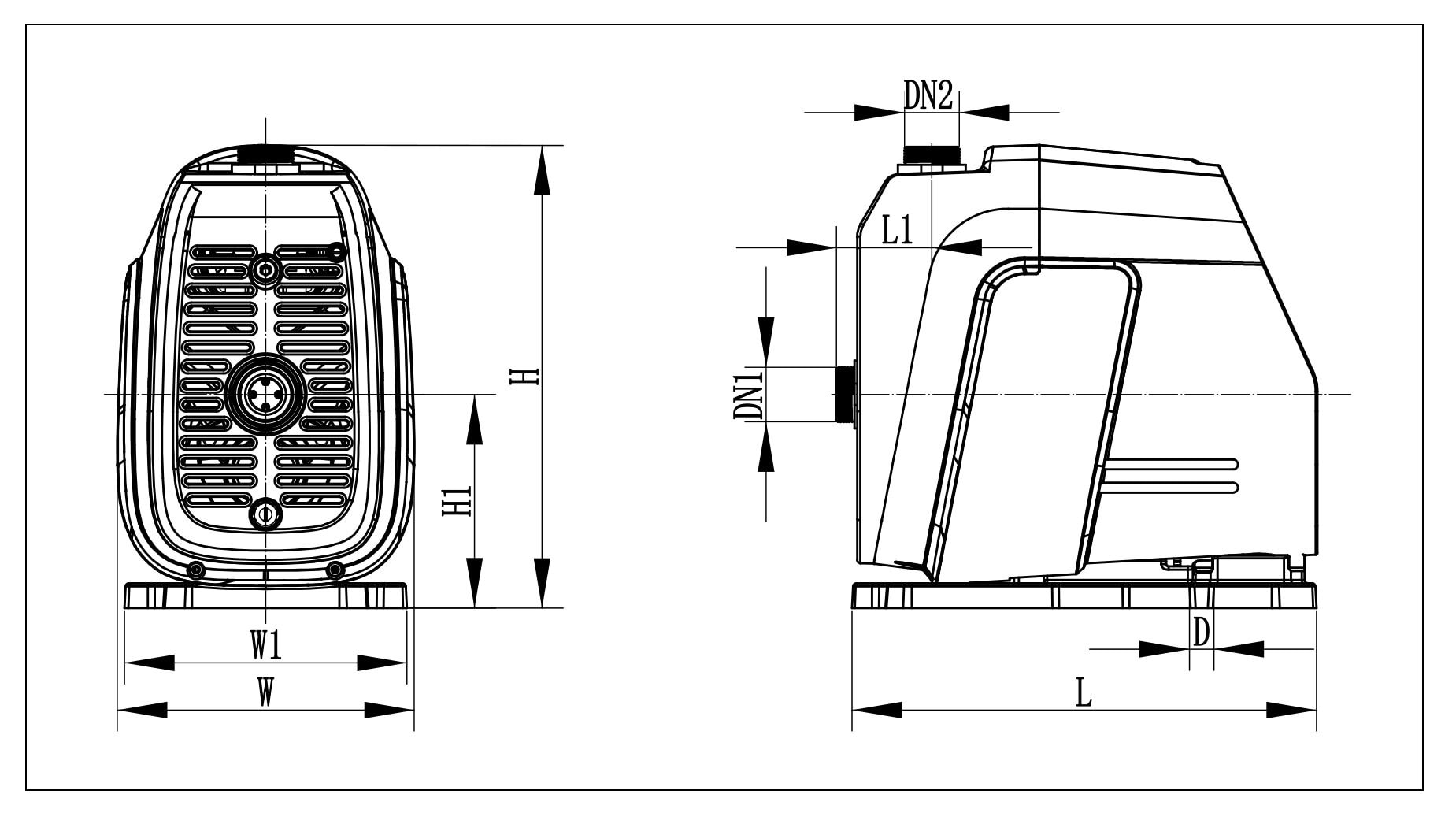

Dimensions

Inlet Outlet Dimensions (inch)
DN1 DN2 L L1 W W1 H H1 D
1 1 11 2.3 7.1 6.7 11 5.1 0.4

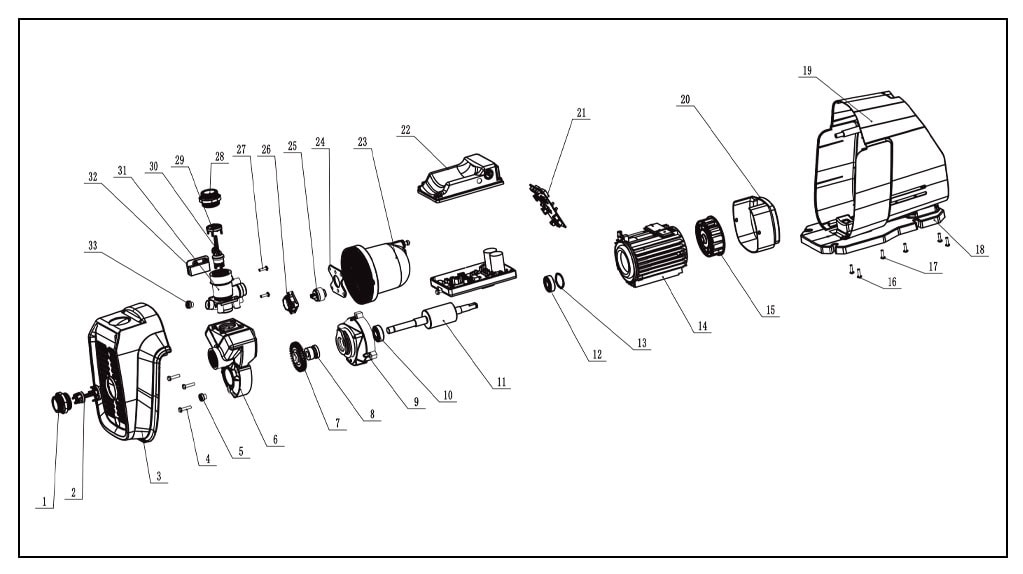

Parts List

Part No. Description Material
1 Inlet Joint HBi59-1
2 Check Valve PPO
3 Pump Body Shell ABS
4 Self-Tapping Screws 06Cr19Ni10
5 Nut 06Cr19Ni10
6 Pump Body HT200
7 Impeller HBi59-1
8 Mechanical Seal /
9 Bracket HT200
10 Bearing /
11 Rotor 06Cr19Ni10
12 Bearing /
13 Wave Spring 65Mn
14 Motor Copper
15 Fan PP
16 Screws 06Cr19Ni10
Part No. Description Material
17 Screws 06Cr19Ni10
18 Bottom Plate ABS
19 Motor Shell ABS
20 Wind Cover ABS
21 Controller /
22 Controller Cover ZL102
23 Pressure Tank IIR+PA66
24 Pressure Tank Bracket 06Cr19Ni10
25 Pressure Sensor 06Cr19Ni10
26 Sensor Bracket PPO
28 Outlet Joint HBi59-1
29 Check Valve PPO
30 O-Ring EPDM
31 5-Way Connector PA66
32 Flow Sensor ABS
33 Nut 06Cr19Ni10
