GPTCO Intelligent Booster Pump 1.6HP, 208-230V, 1Phase, 44 GPM @ 50PSI, Model GBWD1200 Wiffi Connection

GPTCO Intelligent Booster Pump 1.6HP, 208-230V, 1Phase, 44 GPM @ 50PSI, Model GBWD1200 Wiffi Connection
GPTCO Intelligent Booster Pump 1.6HP, 208-230V, 1Phase, 44 GPM @ 50PSI, Model GBWD1200 Wiffi Connection - Image 2
GPTCO Intelligent Booster Pump 1.6HP, 208-230V, 1Phase, 44 GPM @ 50PSI, Model GBWD1200 Wiffi Connection - Image 3
SKU: 3738127 Categories: , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: 3738127 Categories: , , , Brand:

GPTCO Intelligent Booster Pump 1.6HP, 208-230V, 1Phase, 44 GPM @ 50PSI, Model GBWD1200 Wiffi Connection

Print Product Page
  • Wiffi connection
  • Automatic start/stop function
  • Constant water supply
  • Quiet & Low noise
  • Easy to operate
  • Energy-efficient
  • Soft start
SKU 3738127 Categories , , , Brand:

UNIT PRICE

$1,006.88

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Intelligent Booster Pump

Technical Data

Features

  • Wifi connection
  • Automatic start/stop function
  • Constant water supply
  • Quiet & Low noise
  • Easy to operate
  • Energy-efficient
  • Soft start

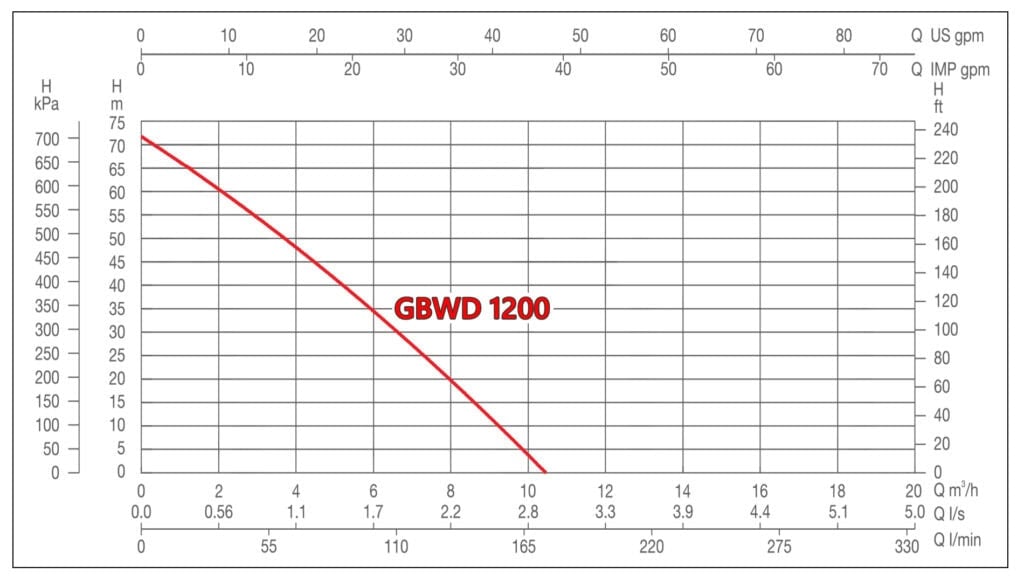

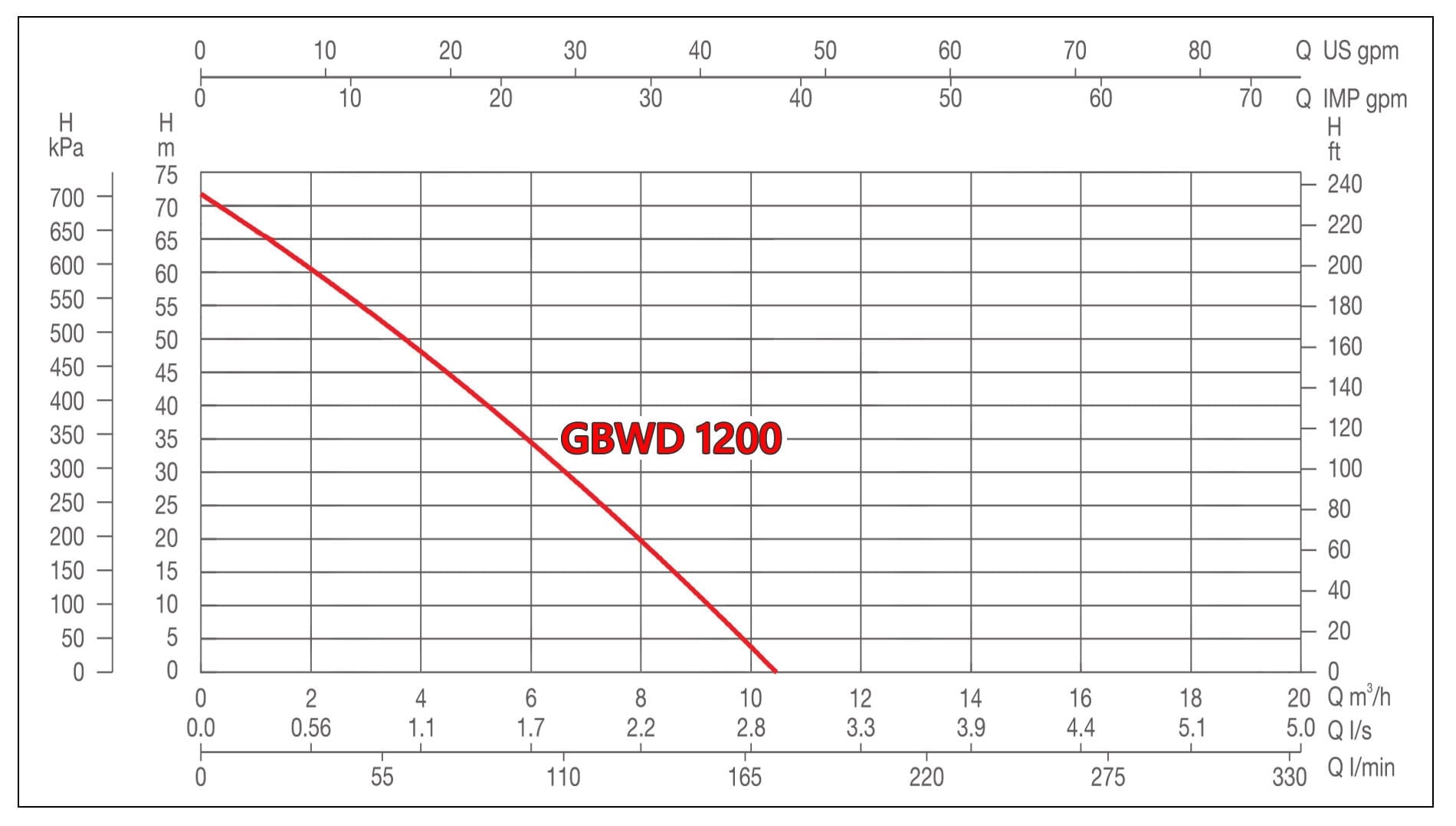

Performance Curve

Model Power Voltage Phase Frequency Q. Max H. Max Q. Rated H. Rated Max. Suct Max. Temp Max. Speed IP Grade Insulation Class
hp V Ph Hz GPM ft GPM ft ft °F RPM
GBWD 1200 1.6 220 Single 50/60 44 229.7 22 131.2 26.2 167 4600 IP55 F

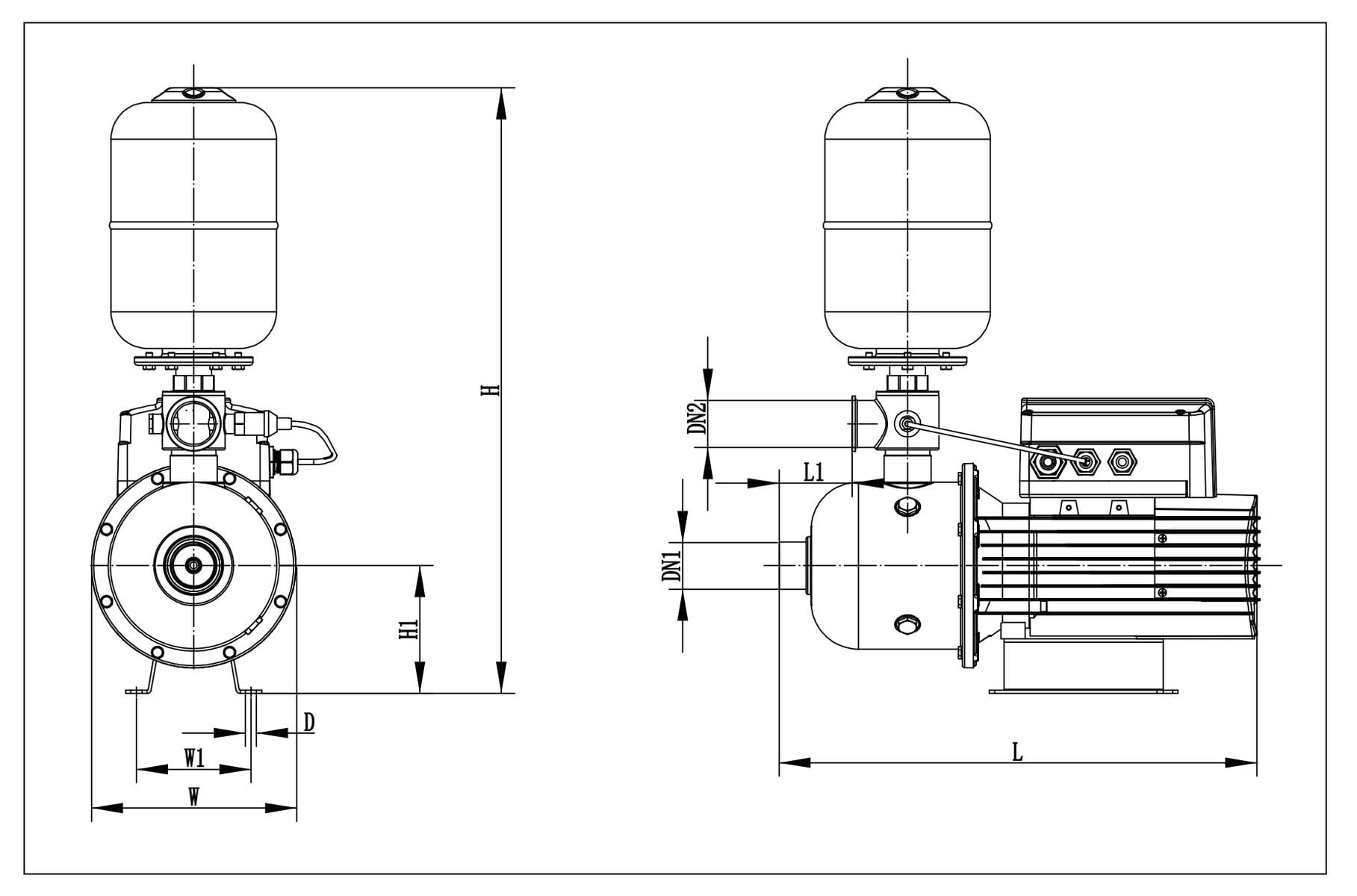

Dimensions

Dimensions (inch)
DN1 DN2 L L1 W W1 H H1 D
1 1/4 1 1/4 18 2.8 7.7 4.3 23 5 0.5

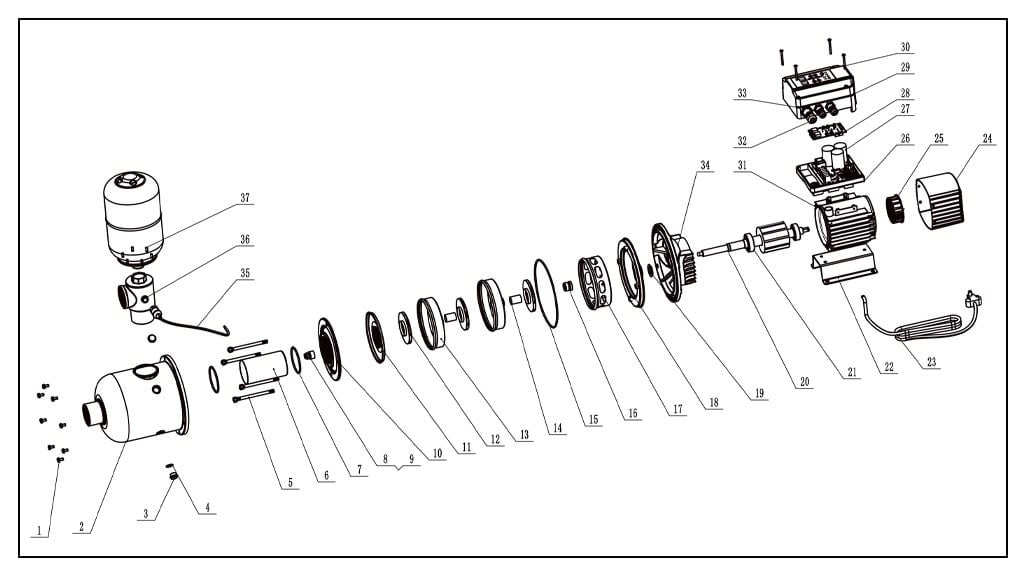

Parts List

Part No. Description Material
1 Self-Tapping Screws 06Cr19Ni10
2 Pump Body 1 06Cr19Ni10
3 Nut 06Cr19Ni10
4 O-Ring EPDM
5 Self-Tapping Screws 06Cr19Ni10
6 Connecting Pipe 06Cr19Ni10
7 O-Ring EPDM
8 Nut 06Cr19Ni10
9 Flat Pad 06Cr19Ni10
10 Fixed Disk 06Cr19Ni10
11 Cover Plate 06Cr19Ni10
12 Impeller 06Cr19Ni10
13 Diffuser 06Cr19Ni10
14 Shaft Sleeve 06Cr19Ni10
15 O-Ring EPDM
16 Mechanical Seal /
17 Diffuser 06Cr19Ni10
18 Seal Holder 06Cr19Ni10
Part No. Description Material
19 Shim 06Cr19Ni10
20 Rotor 06Cr19Ni10
21 Bearing /
22 Bottom Plate Q195
23 Cable /
24 Wind Cover ABS
25 Fan PP
26 Controller Bottom Box ZL102
27 Controller /
28 Cover Box ABS
29 Self-Tapping Screws 06Cr19Ni10
30 Self-Tapping Screws 06Cr19Ni10
31 Motor /
32 PG9 PA66
33 PG11 PA66
34 Bracket ZL102
35 Sensor 06Cr19Ni10
36 5-Way Connector 06Cr19Ni10
37 Pressure Tank IIR+PA66
