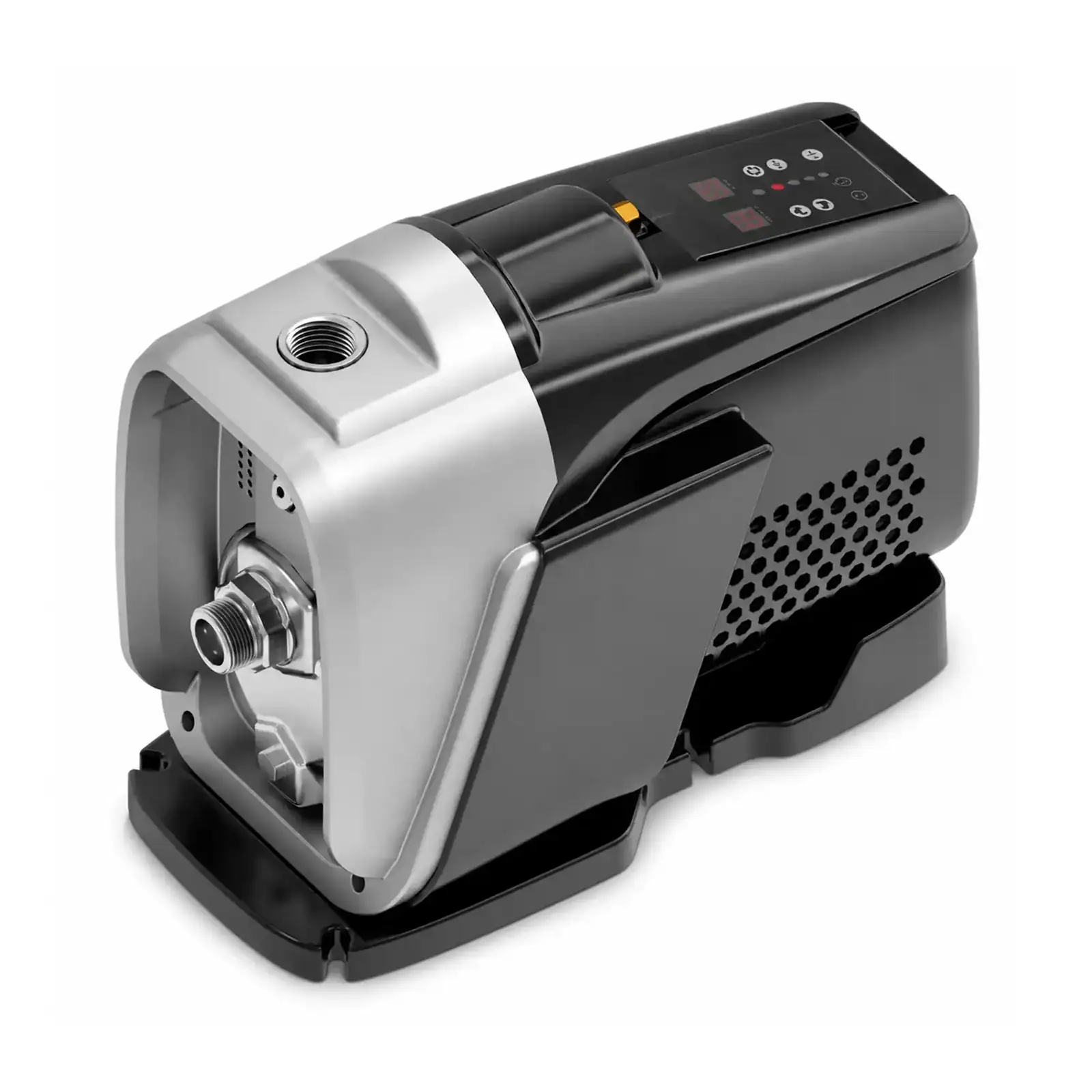

GPTCO Intelligent Booster Pump 1.5HP, 208-230V, 1Phase, 46 GPM, Model GRUC 1100

GPTCO Intelligent Booster Pump 1.5HP, 208-230V, 1Phase, 46 GPM, Model GRUC 1100
GPTCO Intelligent Booster Pump 1.5HP, 208-230V, 1Phase, 46 GPM, Model GRUC 1100 - Image 2
SKU: Please choose an option Categories: , , , Brand:

Ships fast from Miami, FL. Most in-stock orders ship in 0–2 business day.

  • Tracking provided by email
  • Freight items may require a delivery appointment
  • Same-day shipping (business days) on select items
  • Next-day / expedited options available (contact us for pricing)
  • 2-day expedited options available (contact us for pricing)

Pickup is available in Miami, FL for eligible items. Contact us to confirm availability and timing.

Read our full return policy here: Return Policy

SKU: N/A Categories: , , , Brand:

GPTCO Intelligent Booster Pump 1.5HP, 208-230V, 1Phase, 46 GPM, Model GRUC 1100

Print Product Page
  • Wi-Fi Connection
  • High Efficiency PMSM
  • Variable Frequency & Constant Pressure
  • Super Silent < 50dB
  • Wide Range Pressure Settings 20-95%
  • IP55 protection
  • Premium PPO Impeller · 8 m Self-Priming
  • PCB Sealed with Potting Compound
  • 14 Protection Function Offers Satisfied User Experience
SKU N/A Categories , , , Brand:

UNIT PRICE

Price range: $837.99 through $887.99

In Stock · Ships from Miami, FL
Get it fast: typically ships in 0–2 business days

🎄Christmas Sale Is Live

Buy 2 Get 5% · Buy 3 Get 8% · Buy 4+ Get 10% | applies automatically

Description

Intelligent Booster Pump

Technical Data

Features

  • Wi-Fi Connection
  • High Efficiency PMSM
  • Variable Frequency & Constant Pressure
  • Super Silent < 50dB
  • Wide Range Pressure Settings 20-95%
  • IP55 protection
  • Premium PPO Impeller · 8 m Self-Priming
  • PCB Sealed with Potting Compound
  • 14 Protection Function Offers Satisfied User Experience

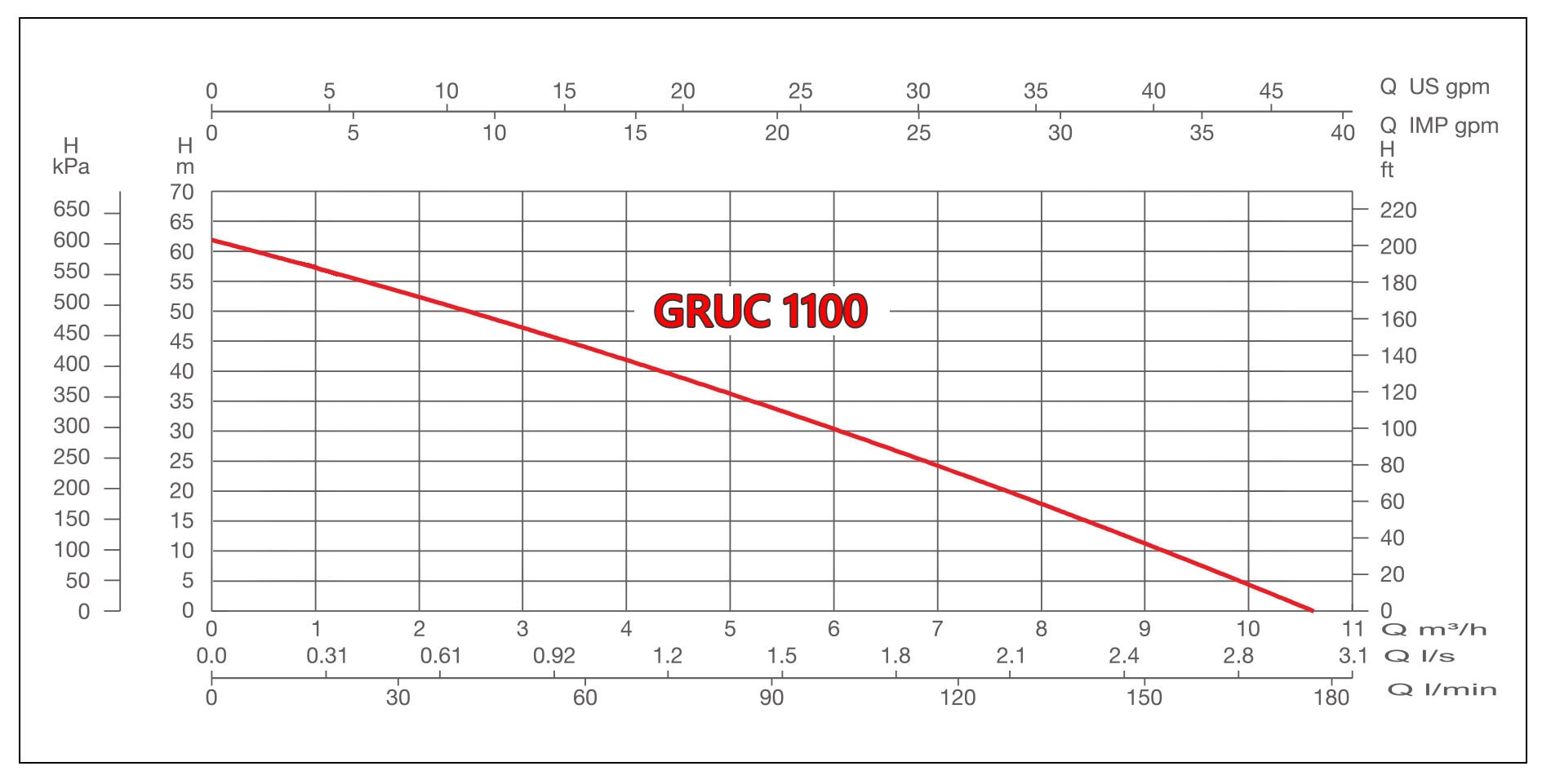

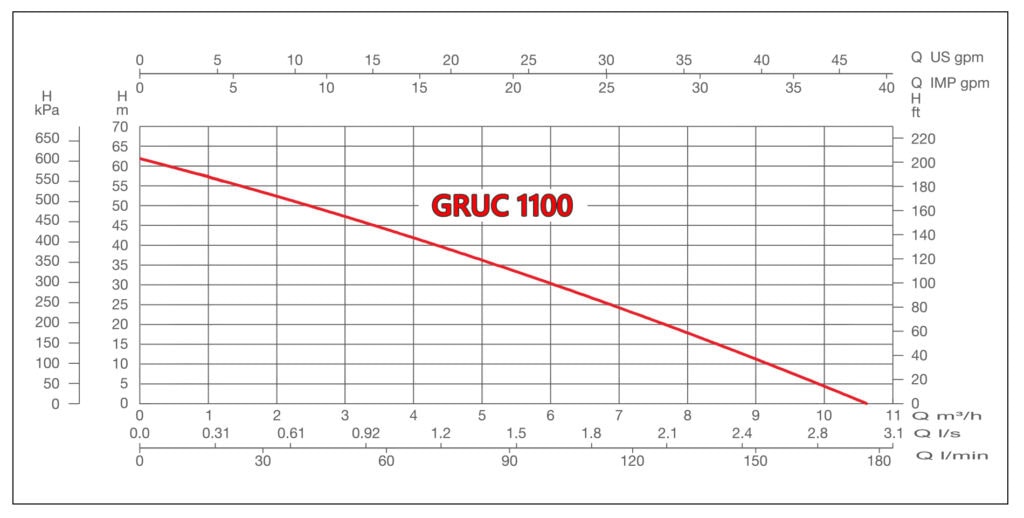

Performance Curve

Model Power Voltage Phase Frequency Q. Max H. Max Q. Rated H. Rated Max. Suct Max. Temp Max. Speed IP Grade Insulation Class
hp V ph Hz GPM ft GPM ft ft °F RPM
GRUC 1100 1.5 220 Single 50/60 46.2 197 26.4 101.7 26.2 167 5200 IP55 F

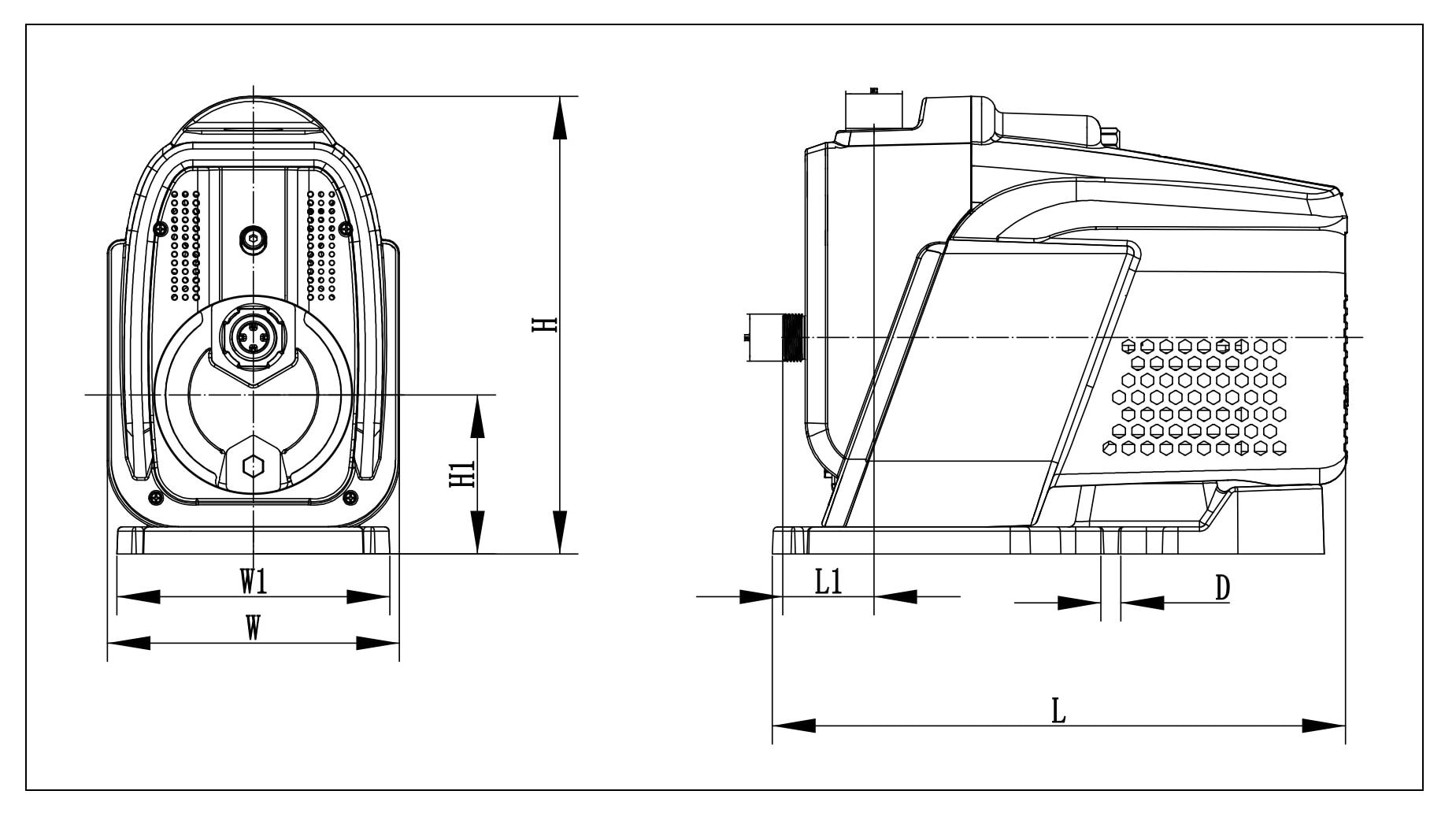

Dimensions

Inlet Outlet Dimensions (inch)
DN1 DN2 L L1 W W1 H H1 D
1 1/4″ 1 1/4″ 17.2 4.2 8 7.5 12.6 4.3 0.5

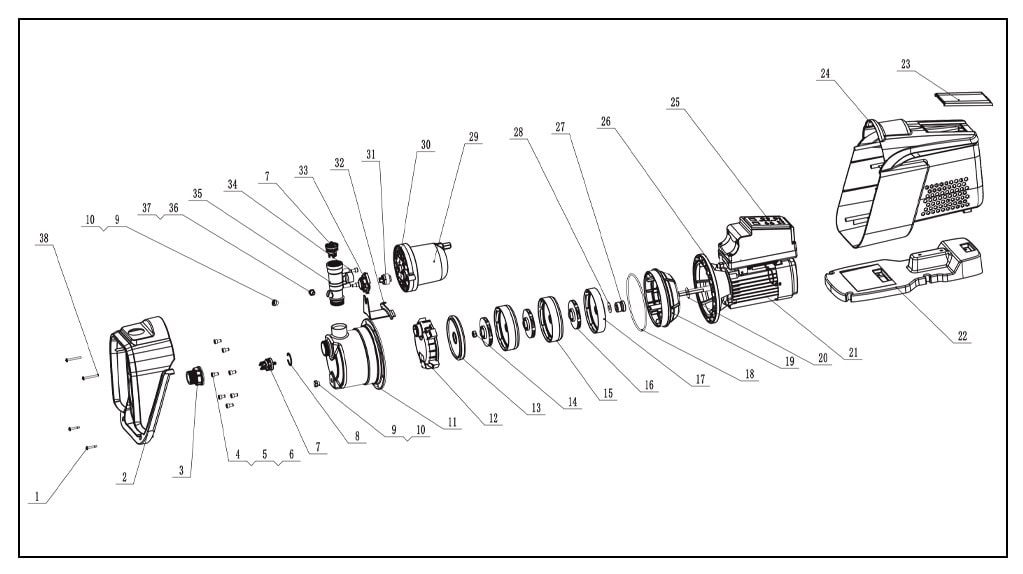

Parts List

Part No. Description Material
1 Self-tapping screws 1 06Cr19Ni10
2 Pump body shell ABS
3 Inlet joint HBi59-1
4 Spring washer 06Cr19Ni10
5 Shim 1 06Cr19Ni10
6 Screws 1 06Cr19Ni10
7 Check valve PPO
8 Snap ring 06Cr19Ni10
9 O-ring 1 NBR
10 Drain plug HBi59-1
11 Pump body 06Cr19Ni10
12 Water inlet guide blade PPO
13 Cover plate PPO
14 Nut 06Cr19Ni10
15 Diffuser 1 PPO
16 Impeller PPO
17 Diffuser 2 PPO
18 O-ring 2 EPDM
19 Seal holder PPO
Part No. Description Material
20 Water proof gland NBR
21 Motor copper
22 Bottom plate ABS
23 Flip cover PC
24 Motor shell ABS
25 Controller PCB
26 Pump support ADC12
27 Mechanical seal Graphite silicon carbide
28 Shim 2 06Cr19Ni10
29 Pressure tank IIR+PA66
30 Fixed bracket PA66
31 Pressure sensor 06Cr19Ni10
32 5-way connector bracket Q235
33 Sensor bracket PPO
34 Check valve PPO
35 5-way connector HBi59-1
36 O-ring 3 EPDM
37 Temperature sensor 06Cr19Ni10
38 Self-tapping screws 2 06Cr19Ni10
