Description
Intelligent Booster Pump
Technical Data
Features
- Permanent Magnet Variable Frequency Drive
- Low-Noise Supercharger
- Energy-Saving and Environmentally Friendly
- Multiple Protection

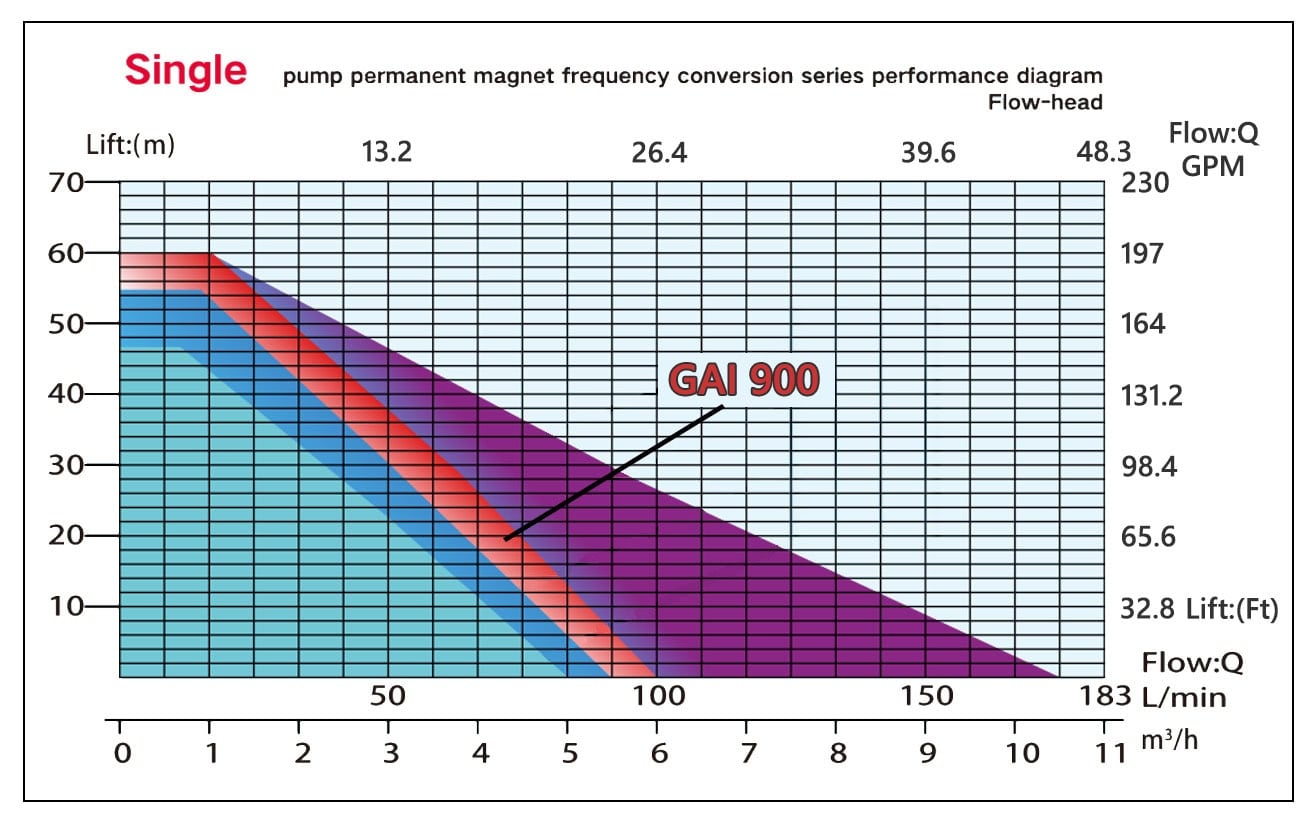

Performance Curve
| Model | Voltage – Phase | Power | Water Temp Range | Ambient Temp Range | Pressure Adjustment Range | Max. Flow | Max. Lift | Rated Flow | Rated Lift | Suction | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| V | W | Hp | °F | °F | PSI | GPM | ft | GPM | ft | ft | |
| GAI 900 | 220 – 1Ph | 900 | 1.2 | 32-212 | 32-122 | 21.8-94.3 | 26.4 | 196.9 | 17.6 | 98.4 | 19.7 |

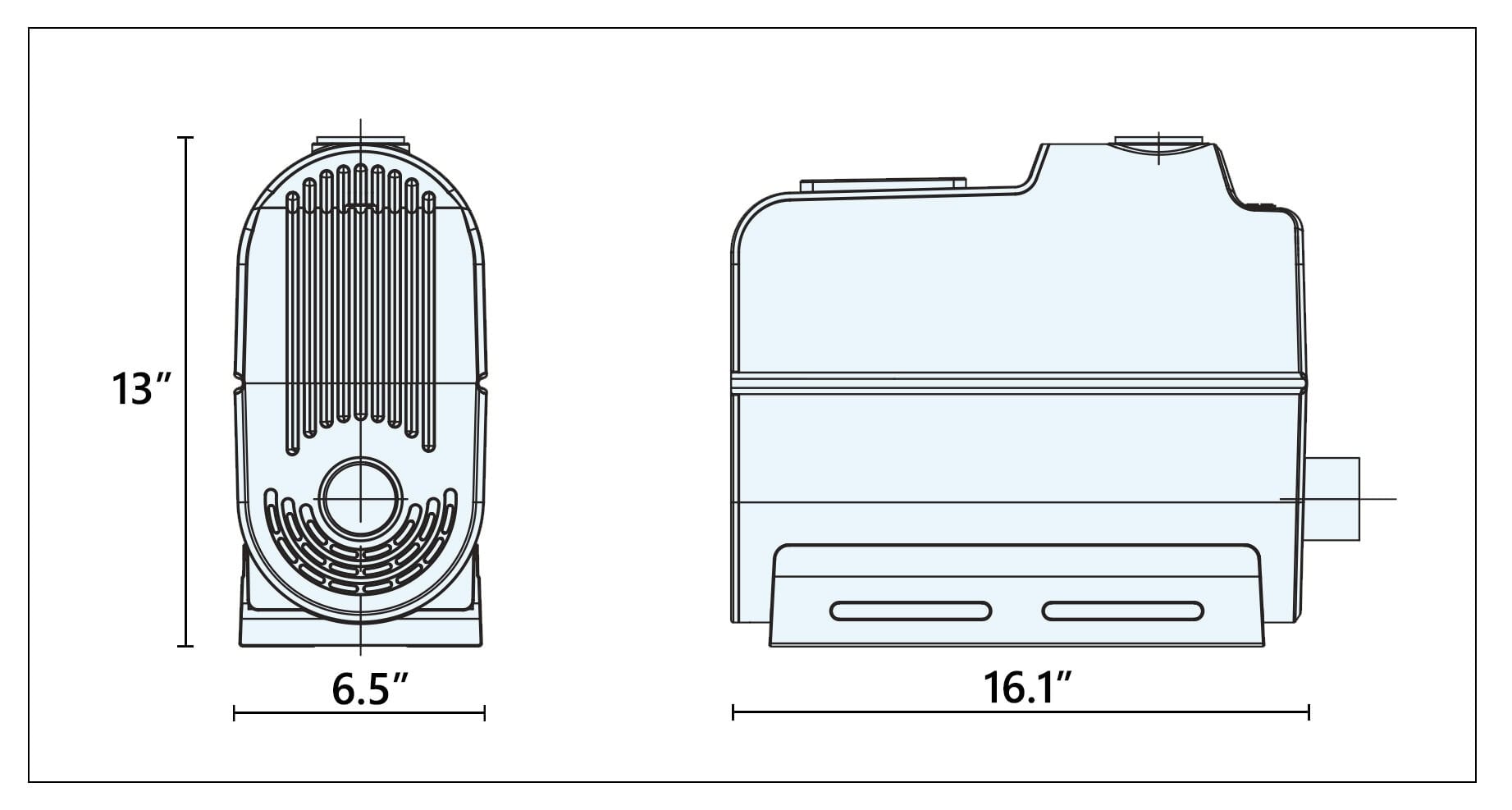

Dimensions
| Inlet | Outlet |
|---|---|
| 1″ | 1″ |
