Price range: $1,199.99 through $1,705.99
The GSSA Series is a fabricated single-impeller centrifugal pump manufactured from precision-pressed 3 mm 316L stainless steel and coupled with UL-approved dual-voltage motors.
Available in single-phase and three-phase configurations for 60 Hz applications, with 2-pole (3500 rpm) and 4-pole (1750 rpm) options.
| Item Number |
Model(DIN EN 733) | Motor Power | Pump Efficiency% |
Max. Pressurepsi |
Head Rateft. |
Q rategpm | Head Min.ft. |
Q maxgpm | DNAin. | DNMin. | Weightlb. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | HP | |||||||||||
| 4313101 | GSSA 50-32-125/1.1-2 | 1.1 | 1.5 | 61 | 34.1 | 68.3 | 39.6 | 43.3 | 88 | 2" | 1 1/4" | 27.3 |
|
Model(GB 5662)
1/3 phase 208-460V/60Hz |

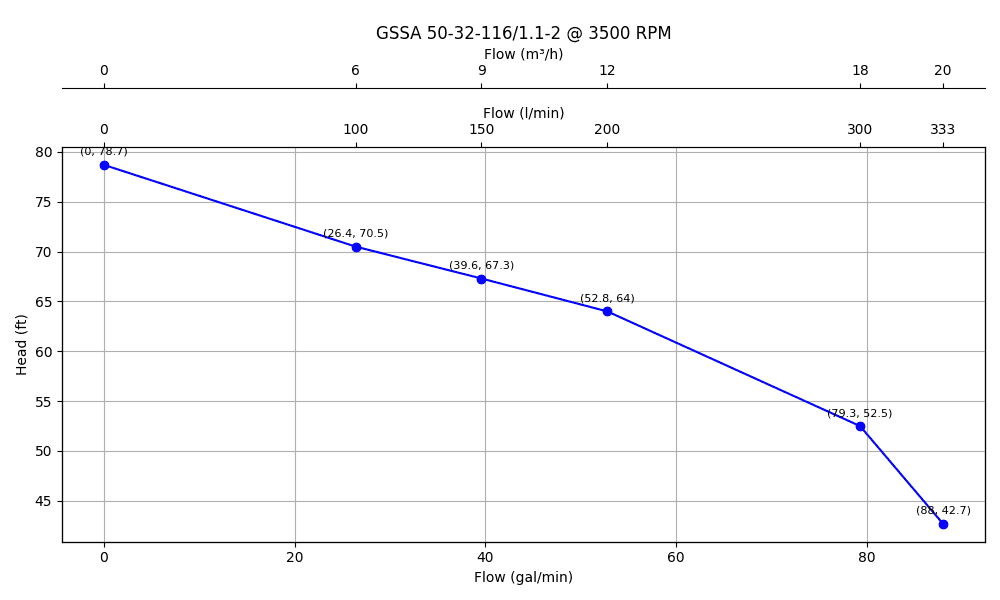

Power | Capacity | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | HP | m³/h | 0 | 6 | 9 | 12 | 18 | 20 | 22 | 24 | 27 | 30 | 36 | 42 | |
| l/min | 0 | 100 | 150 | 200 | 300 | 333 | 360 | 400 | 450 | 500 | 600 | 700 | |||
| gal/min | 0 | 26.4 | 39.6 | 52.8 | 79.3 | 88 | 97 | 106 | 119 | 132 | 159 | 185 | |||
| Head (ft.) | |||||||||||||||
| GSSA 50-32-125/1.1-2 | 1.1 | 1.5 | — | 78.7 | 70.5 | 67.3 | 64 | 52.5 | 42.7 | — | — | — | — | — | — |
| Model (DIN EN 733) | E | F | h | h1 | h2 | h3 | a | m1 | m2 | n1 | n2 | S | L1 | L2 | L3 | L4 | r | f | S3 | D2 | K2 | P2 | S2 | n* | D1 | K1 | P1 | S1 | DNA | DNM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GSSA 50-32-125/1.1-2 | 8.2 | 17.5 | 9.9 | 4.4 | 5.5 | 8.7 | 3.1 | 2.8 | 4.8 | 5.5 | 7.5 | 0.6 | 4.9 | 6.5 | - | - | 7.3 | 5 | 0.5 | 6.5 | 4.9 | 3.9 | 0.7 | 4 | 5.5 | 3.9 | 3 | 0.7 | 2 | 1.3 |
| No | Description | No | Description | No | Description |
|---|---|---|---|---|---|
| 1 | Bolt | 6 | Bracket | 11 | Wear Ring |
| 2 | Motor | 7 | Stub-shaft | 12 | Spring Washer |
| 3 | Key | 8 | Back Cover | 13 | Impeller Nut |
| 4 | Bolt | 9 | Mechanical Seal | 14 | O Ring |
| 5 | Coupling Guard | 10 | Impeller | 15 | Casing |
| AC voltage | |
|---|---|
| Brands | |
| category ac pumps | |
| Horse power Ac | |
| Phase | |
| Pump material | |
| Self Priming |
